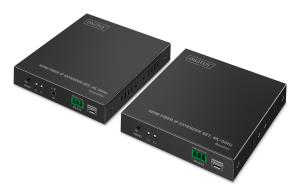

HDMI Fiber KVM Extender Set - 4K/60Hz 40 km/300m IP 1G Black
ITCurry #: M9239793 | Article #: DS-55348-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Enables HDMI signal transmission in UHD resolution (4K/60Hz) over a distance of up to 40 km (singlemode) / 300 m (multimode) in point-to-point connection and offers a KVM function on the receiver side
- Long range: AV signal transmission via fiber optic cable - singlemode up to 40 km, multimode up to 300 m - point-to-point connection
- Expandable via IP: Supports up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of 1G network switches for signal transmission at unlimited distances possible - cascading

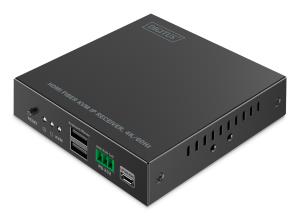

- Expansion options: Additional receivers (RX) available separately (model: DS-55349)
- SFP modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC-SFP modules as well as singlemode and multimode fiber optic cables
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- KVM function on the receiver side - connection of mouse & keyboard to control the signal source
- Additional audio output: 3.5 mm stereo connection for separate audio transmission
- HDMI Loop-Out: Connection of a local monitor to the transmitter unit (TX)
The HDMI Fiber KVM Extender Set enables high-resolution AV signal transmission in 4K/60Hz (3840x2160p) over long distances using fiber optic cables. Both singlemode (SM) and multimode (MM) cables are supported. In a point-to-point connection, signals can be transmitted loss-free over distances of up to 40 km (singlemode) or 300 m (multimode). In addition, the device allows a point-to-multipoint connection with the option of distributing signals to up to 253 receivers (displays). Thanks to the support of 1G network switches and the use of the existing 1G infrastructure, signal transmission over unlimited distances is possible. This is achieved by cascading, allowing the system to be expanded flexibly. For projects with many displays, the extender set can be expanded with additional receivers (RX), whereby additional receiver units are available separately (model: DS-55349). The system is compatible with LC and SC SFP modules, whereby the appropriate SFP modules are available separately (LC singlemode (SM): DN-81002, LC multimode (MM): DN-81000). The option of using both singlemode and multimode fiber optic cables ensures a high degree of flexibility for different areas of application. Another outstanding feature of the extender is the KVM function on the receiver side, which enables the connection of a mouse and keyboard to control the signal source directly. In addition, a 3.5 mm stereo connection is available for separate audio output to ensure optimum sound transmission. These extensive functions make the HDMI Fiber KVM Extender Set ideal for data centers, conference rooms, digital signage, broadcast environments and industrial applications that require stable, lossless and high-resolution AV transmission over long distances.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Connectiviteitstechnologie | Bedraad |
| Maximaal bereik | 40000 m |
| Resolutie (maximum digitaal) | 3840 x 2160 Pixels |
| Maximale refresh snelheid | 60 Hz |
| Kleur van het product | Zwart |
| Materiaal | Metaal |
| Gemakkelijk te installeren | Ja |
| LED-indicatoren | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| Zender | |
| Poorttype zender video | HDMI |
| Zender lokale videopoort | Ja |
| Poorttype zender lokale video | HDMI |
| Aantal displays ondersteund | 1 |
| Aantal Micro-USB-poorten zender | 1 |
| Ontvanger | |
| Poorttype ontvanger lokale video | HDMI |
| Poorttype ontvanger lokaal toetsenbord/muis | USB |
| Aantal Micro-USB-poorten ontvanger | 1 |
| Aantal USB Type-A-poorten ontvanger | 2 |
| Poorten & interfaces | |
| USB-poorttype | USB Type-A/Micro-USB |
| HDMI versie | 2.0 |
| RS-232 port | 2 |
| Aantal ge‹nstalleerde SFP+ modules | 2 |
| USB 1.1 poort(en) | 3 |
| Remote (IR) ingang | 1 |
| Remote (IR) uitgang | 1 |
| Energie | |
| AC-adapter, uitgangsspanning | 5 V |
| AC-adapter, uitgangsstroom | 2 A |
| Stroomverbruik (zender) (max) | 7,5 W |
| Stroomverbruik (ontvanger) (max) | 7,5 W |
| Aansluiting voor netstroomadapter | Ja |
| Gewicht en omvang | |
| Zender breedte | 10,3 cm |
| Zender diepte | 10,6 cm |
| Zender hoogte | 2,6 cm |
| Transmitter gewicht | 307 g |
| Receiver breedte | 10,3 cm |
| Diepte van de receiver | 10,6 cm |
| Receiver hoogte | 2,6 cm |
| Receiver gewicht | 303 g |
| Verpakking | |
| Breedte verpakking | 176 mm |
| Diepte verpakking | 240 mm |
| Hoogte verpakking | 80 mm |
| Gewicht verpakking | 1,17 kg |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | USB |
| Snelle installatiehandleiding | Ja |
| Inclusief bevestigingsbeugel | Ja |
| Inclusief schroeven | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 50 øC |
| Overige specificaties | |
| HDCP | Ja |
| HDCP versie | 1.4/2.2 |
| Bandbreedte | 18 Gbit/s |
