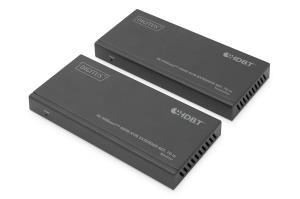

HDBaseT HDMI Extender Set 150m 4K/60Hz 18 Gbps YUV 444 HDR
ITCurry #: M9238936 | Article #: DS-55508-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HDBaseT™ HDMI Extender Set enables uncompressed and high-resolution signal transmission over long distances
- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Supports 4K2K/60Hz (4:4:4)
- Maximum transmission distance (UHD 4K2K): 120 m
- Maximum transmission distance (Full HD 1080p): 150 m
- Video bandwidth: 18 Gbps
- HDMI loop-out on the transmitter unit
- PoC (Power over Cable) - only one unit requires an external power supply unit
- HDCP 2.2 / 1.4
- HDR, HDR10+, Dolby Vision, HLG
- RS232 signal transmission
The HDBaseT™ HDMI Extender Set enables uncompressed and high-resolution signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 150 m (Full HD). 4K signals can be extended up to 120 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. RS232 and bidirectional IR transmission are also included in the scope of services. Thanks to an HDMI loop-out on the transmitter unit, a local monitor can be connected to control the output on the receiver.
| Kenmerken | |
| Soort | AV-zender & ontvanger |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteundende kabel types | Cat5e, Cat6, Cat7, Cat8 |
| Maximaal bereik | 150 m |
| Bidirectioneel | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| Bandbreedte | 18 Gbit/s |
| HDCP | Ja |
| Materiaal | Metaal |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Plug and play | Ja |
| HDCP versie | 1.4/2.2 |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| RJ-45 invoer ports | 1 |
| RJ-45 uitgang ports | 1 |
| HDMI in | 1 |
| Aantal HDMI-uitgangen | 1 |
| Aantal USB-aansluitingen | 2 |
| USB-connectortype | Micro-USB |
| RS-232 ingangspoorten | 1 |
| RS-232 uitgangspoorten | 1 |
| Seri‰le poort(en) | 2 |
| Soort serie‰le aansluiting | RS-232 |
| 3,5 mm in | Ja |
| 3,5 mm-uitgang | Ja |
| Remote (IR) ingang | 2 |
| Remote (IR) uitgang | 2 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Operating voltage | 24 V |
| Stroom | 1 A |
| Stroomverbruik (typisch) | 9,36 W |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Gewicht en omvang | |
| Receiver afmetingen (B x D x H) | 65 x 140 x 18 mm |
| Receiver gewicht | 155 g |
| Transmitter afmetingen (WxDxH) | 65 x 140 x 18 mm |
| Transmitter gewicht | 160 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 245 mm |
| Diepte verpakking | 185 mm |
| Hoogte verpakking | 75 mm |
| Gewicht verpakking | 1 kg |
| Type verpakking | Doos |
| Technische details | |
| Land van herkomst | China |
| Verpakkingsvolume | 3399,38 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
