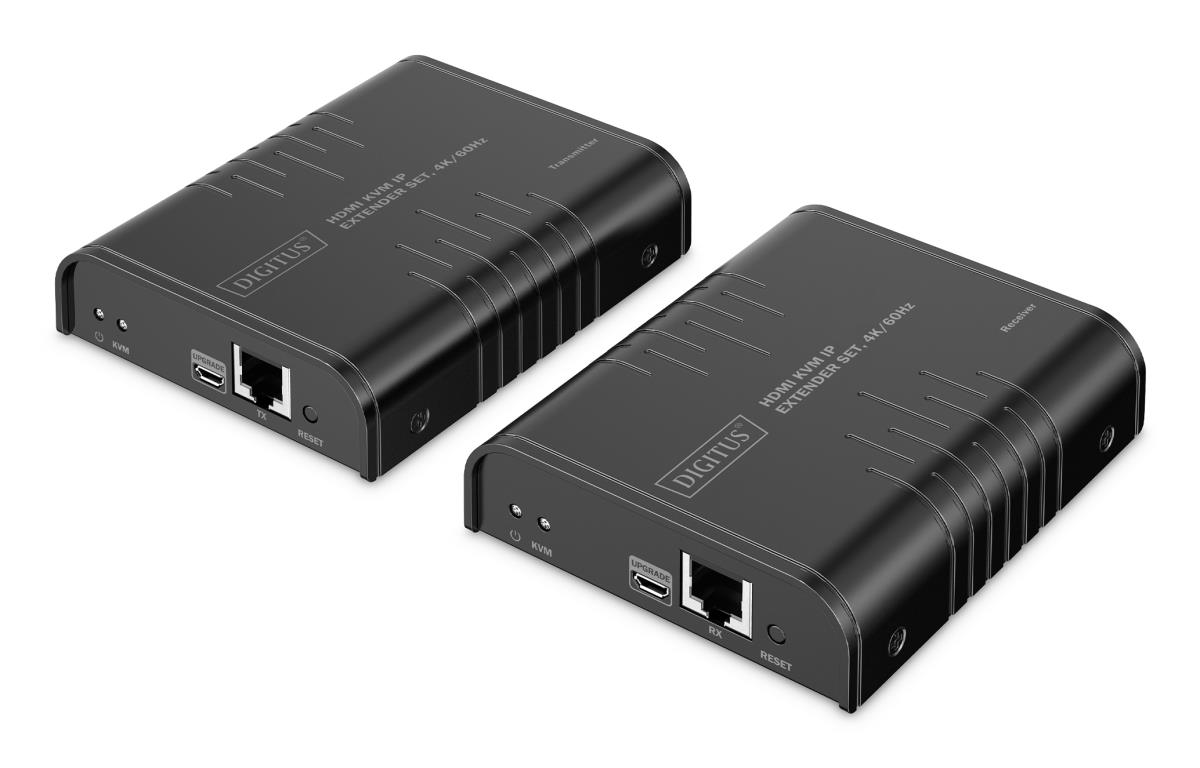

HDMI IP KVM Extender Set - 4K/60Hz 120/200m One-to-Many CAT Black
ITCurry #: M9239795 | Article #: DS-55355-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over a distance of up to 200 m (point-to-point connection) via a CAT6 (or higher) network cable and offers a KVM function (keyboard, mouse, touchscreen) on the receiver side
- Long range: AV signal transmission via CAT6 (or higher) cable up to 200 m - point-to-point connection
- Expandable via IP: Supports up to 253 receivers (displays) - Point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Expansion options: Additional receivers (RX) available separately (model: DS-55356)
- Additional connectivity & control: KVM function for connecting mouse & keyboard as well as touch screen support on the receiver side
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 120-170 ms
- Supports CAT6 (or higher) network cables
The HDMI KVM IP Extender Set enables the high-resolution transmission of HDMI AV signals in brilliant 4K UHD quality (4096x2160p at 60Hz) over a distance of up to 200 meters using CAT6 or higher-quality network cables. Thanks to the integrated KVM function, the mouse, keyboard and touchscreen devices can be used directly on the receiver side, enabling convenient control. The system impresses with its flexible expandability and supports point-to-point connections as well as point-to-multipoint transmissions with up to 253 receivers. By using an existing 1G network infrastructure or additional network switches, signal transmission can be extended to unlimited distances (cascading). A low latency of only 120 to 170 ms ensures almost delay-free image reproduction in excellent quality. In addition, optional receivers (model: DS-55356) can be purchased separately to extend the range of applications individually. Thanks to its simple connectivity and control, the HDMI KVM IP Extender Set is ideal for companies, conference rooms, digital signage and professional AV applications where reliable, low-latency and high-resolution signal transmission is required.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Connectiviteitstechnologie | Bedraad |
| Maximaal bereik | 200 m |
| Ondersteundende kabel types | Cat6 |
| Resolutie (maximum digitaal) | 4096 x 2160 Pixels |
| Maximale refresh snelheid | 60 Hz |
| Kleur van het product | Zwart |
| Materiaal | Metaal |
| Gemakkelijk te installeren | Ja |
| LED-indicatoren | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| Zender | |
| Poorttype zender video | HDMI |
| Aantal displays ondersteund | 1 |
| Aantal RJ-45-poorten (zender) | 1 |
| Aantal Micro-USB-poorten zender | 1 |
| Ontvanger | |
| Poorttype ontvanger lokale video | HDMI |
| Poorttype ontvanger lokaal toetsenbord/muis | USB |
| Aantal RJ-45-poorten (ontvanger) | 1 |
| Aantal Micro-USB-poorten ontvanger | 1 |
| Aantal USB Type-A-poorten ontvanger | 2 |
| Poorten & interfaces | |
| USB-poorttype | USB Type-A/Micro-USB |
| Aantal USB 2.0-poorten | 3 |
| HDMI versie | 2.0 |
| USB data-overdrachtssnelheden | 480 Mbit/s |
| RJ-45 ports hoeveelheid | 2 |
| Energie | |
| AC-adapter, uitgangsspanning | 5 V |
| AC-adapter, uitgangsstroom | 1 A |
| Stroomverbruik (zender) (max) | 3,5 W |
| Stroomverbruik (ontvanger) (max) | 2,5 W |
| Aansluiting voor netstroomadapter | Ja |
| Gewicht en omvang | |
| Zender breedte | 8,95 cm |
| Zender diepte | 10,9 cm |
| Zender hoogte | 2,63 cm |
| Transmitter gewicht | 240 g |
| Receiver breedte | 8,95 cm |
| Diepte van de receiver | 10,9 cm |
| Receiver hoogte | 2,63 cm |
| Receiver gewicht | 243 g |
| Verpakking | |
| Breedte verpakking | 176 mm |
| Diepte verpakking | 240 mm |
| Hoogte verpakking | 80 mm |
| Gewicht verpakking | 930 g |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | USB |
| Snelle installatiehandleiding | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Overige specificaties | |
| HDCP | Ja |
| HDCP versie | 1.4/2.2 |
| Bandbreedte | 18 Gbit/s |
| Warranty | |
| Base Warranty | Non Non |
