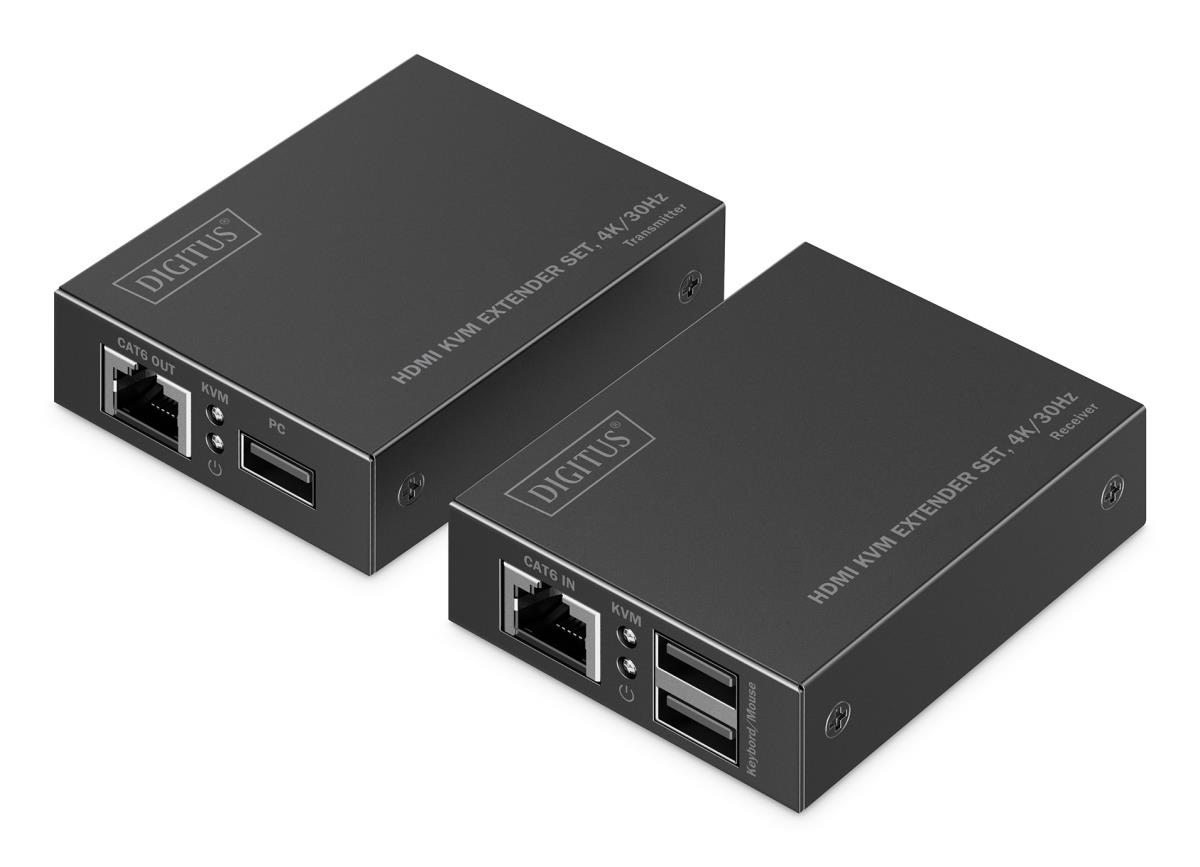

Enables AV signal transmission in UHD resolution (4K/30Hz) over a distance of up to 40 m via a CAT6 (or higher) network cable and offers KVM function (keyboard, video, mouse) as well as PoC (Power over Cable) on the receiver side
- Loss-free HDMI signal transmission in UHD 4K/30Hz (3840x2160p) up to 40 m via CAT6 (or higher) network cable
- Loss-free HDMI signal transmission in Full HD (1080p/60Hz) up to 70 m via CAT6 (or higher) network cable
- Ultra Low Latency - Virtually latency-free image reproduction (10-20 ms) and uncompressed AV signal transmission
- Additional connectivity & control: KVM function for connecting mouse & keyboard on the receiver side
- Flexible installation thanks to PoC support: only the transmitter unit needs to be supplied with power via an external power supply unit
- Supports point-to-point connections
- Supports CAT6 (or higher) network cables
- Plug & Play installation
The HDMI KVM Extender Set (4K/30Hz) enables lossless and virtually latency-free (10-20 ms) transmission of AV signals in Ultra HD resolution (4K/30Hz) over a distance of up to 40 meters using a CAT6 or higher-quality network cable. Thanks to the integrated KVM function, the mouse and keyboard can be connected directly to the receiver side, enabling convenient remote control. The system supports both uncompressed HDMI signal transmission in 4K/30Hz over 40 meters and Full HD (1080p/60Hz) transmissions over a distance of up to 70 meters. The ultra-low latency technology ensures virtually lag-free image playback (10-20 ms latency) and a seamless user experience. For easy and flexible installation, the set offers PoC (Power over Cable) support so that only the transmitter unit needs to be supplied with a power supply unit. Thanks to Plug & Play installation, quick and uncomplicated commissioning is guaranteed. The HDMI KVM Extender Set is the ideal solution for professional applications, conference rooms, industrial control systems or home theater setups that require high-resolution signal transmission with additional control options.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Connectiviteitstechnologie | Bedraad |
| Maximaal bereik | 70 m |
| Ondersteundende kabel types | Cat6 |
| Resolutie (maximum digitaal) | 3840 x 2160 Pixels |
| Maximale refresh snelheid | 30 Hz |
| Kleur van het product | Zwart |
| Materiaal | Metaal |
| Gemakkelijk te installeren | Ja |
| LED-indicatoren | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| Zender | |
| Poorttype zender video | HDMI |
| Aantal displays ondersteund | 1 |
| Aantal RJ-45-poorten (zender) | 1 |
| Ontvanger | |
| Poorttype ontvanger lokale video | HDMI |
| Poorttype ontvanger lokaal toetsenbord/muis | USB |
| Aantal RJ-45-poorten (ontvanger) | 1 |
| Aantal USB Type-A-poorten ontvanger | 2 |
| Poorten & interfaces | |
| USB-poorttype | USB Type-A |
| HDMI versie | 1.4 |
| RJ-45 ports hoeveelheid | 2 |
| USB 1.1 poort(en) | 3 |
| Energie | |
| AC-adapter, uitgangsspanning | 5 V |
| AC-adapter, uitgangsstroom | 2 A |
| Stroomverbruik (zender) (max) | 5 W |
| Stroomverbruik (ontvanger) (max) | 5 W |
| Aansluiting voor netstroomadapter | Ja |
| Gewicht en omvang | |
| Zender breedte | 6 cm |
| Zender diepte | 7,5 cm |
| Zender hoogte | 2 cm |
| Transmitter gewicht | 123 g |
| Receiver breedte | 6 cm |
| Diepte van de receiver | 7,5 cm |
| Receiver hoogte | 2 cm |
| Receiver gewicht | 123 g |
| Verpakking | |
| Breedte verpakking | 117 mm |
| Diepte verpakking | 150 mm |
| Hoogte verpakking | 77 mm |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | USB |
| Snelle installatiehandleiding | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Overige specificaties | |
| HDCP | Ja |
| HDCP versie | 1.4 |
| Bandbreedte | 10,2 Gbit/s |
| Warranty | |
| Base Warranty | Non Non |
