Product Informatie
Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data
- Transmit high-resolution multimedia content without a loss of quality and uncompressed over distances of up to 100 m
- Saves unnecessary cable relocation and pools multimedia signals along with many other signals in a single network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio and USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer Electronics Control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)

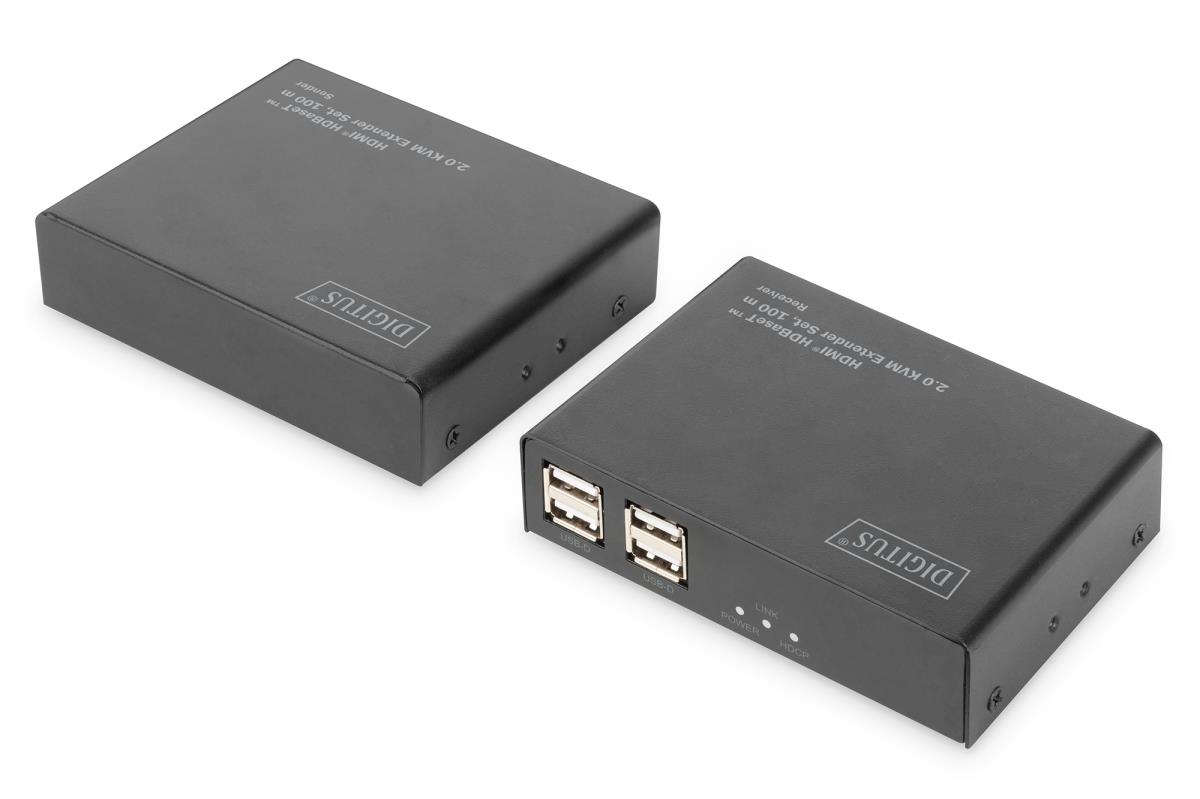

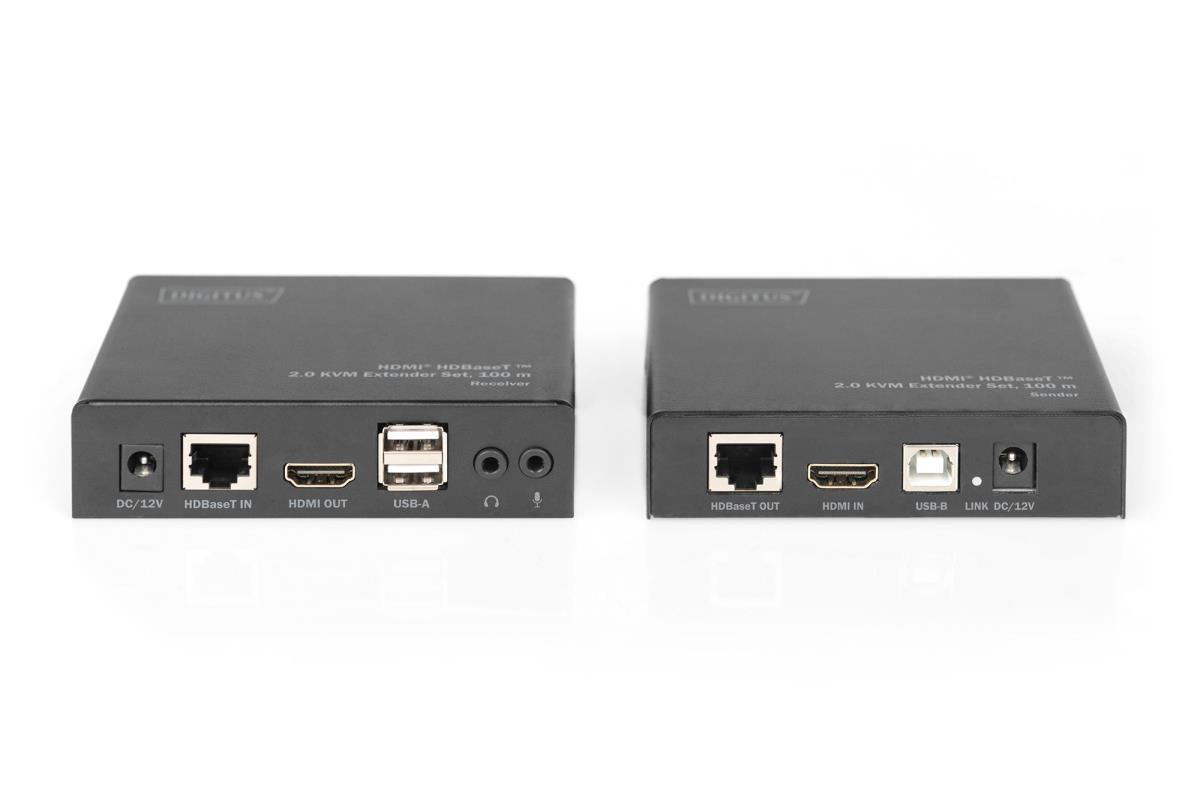

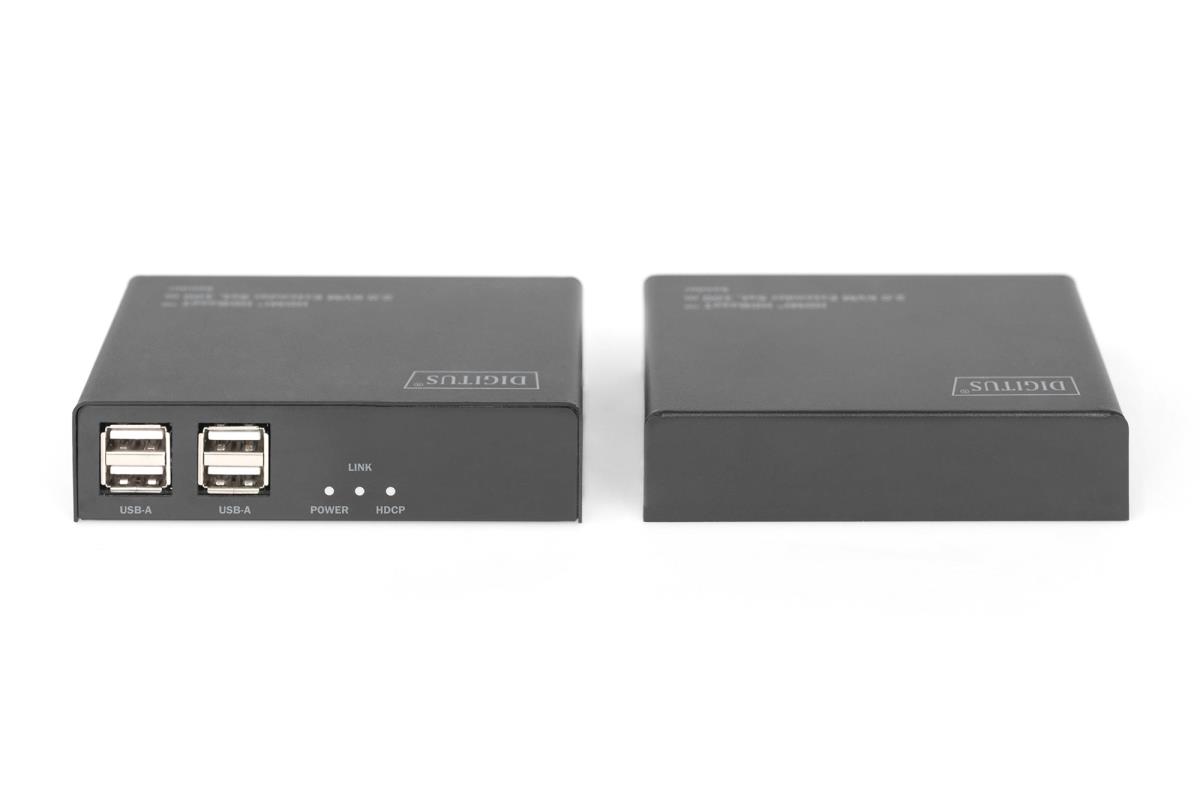

With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device at a distance of up to 100 meters using a single CAT6A/7/8 cable connection with uncompressed 4K-HDMI™ video content and access to up to 6 connected USB devices. This extender was specially developed for smooth and easy setup. HDBaseT™ 2.0 enables installation using a single cable, avoiding the laborious relocation of multiple cables. A typical application would be a multi-room solution in which the source device and display can be at a distance of up to 100 m. From the receiver, you can use up to 6 USB devices that are connected to the transmitter module, and of course you can enjoy video and audio content. A very easy KVM functionality when it comes to installation and application. Instead of relocating multiple cables, use a single RJ45 network cable or the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Connectiviteitstechnologie | Bedraad |
| Maximaal bereik | 100 m |
| Ondersteundende kabel types | Cat5e |
| Resolutie (maximum digitaal) | 4096 x 2160 Pixels |
| Kleurdiepte | 36 Bit |
| Kleur van het product | Zwart |
| Materiaal | Metaal |
| Zender | |
| Poorttype zender video | HDMI |
| Poorttype zender lokaal toetsenbord/muis | USB |
| Aantal RJ-45-poorten (zender) | 1 |
| Ontvanger | |
| Poorttype ontvanger lokale video | HDMI |
| Poorttype ontvanger lokaal toetsenbord/muis | USB |
| Aantal RJ-45-poorten (ontvanger) | 1 |
| Poorten & interfaces | |
| Aantal USB 2.0-poorten | 6 |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| Stroom | 0.65 A |
| AC-adapter, uitgangsspanning | 12 V |
| AC-adapter, uitgangsstroom | 2 A |
| Stroomverbruik (zender) (max) | 3 W |
| Stroomverbruik (ontvanger) (max) | 7 W |
| Gewicht en omvang | |
| Zender breedte | 13 cm |
| Zender diepte | 1 cm |
| Zender hoogte | 2,5 cm |
| Transmitter gewicht | 212 g |
| Receiver breedte | 11 cm |
| Diepte van de receiver | 8 cm |
| Receiver hoogte | 2,8 cm |
| Receiver gewicht | 240 g |
| Verpakking | |
| Breedte verpakking | 196 mm |
| Diepte verpakking | 243 mm |
| Gewicht verpakking | 975 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB |
| Inclusief bevestigingsbeugel | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Technische details | |
| Maximum resolutie | 3840 x 2160 Pixels |
| Verpakkingsvolume | 2857,68 cmü |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code UK-handelstarief | 85176200 |
| Code geharmoniseerd systeem (HS) | 84733080 |
| Warranty | |
| Base Warranty | Non Non |
