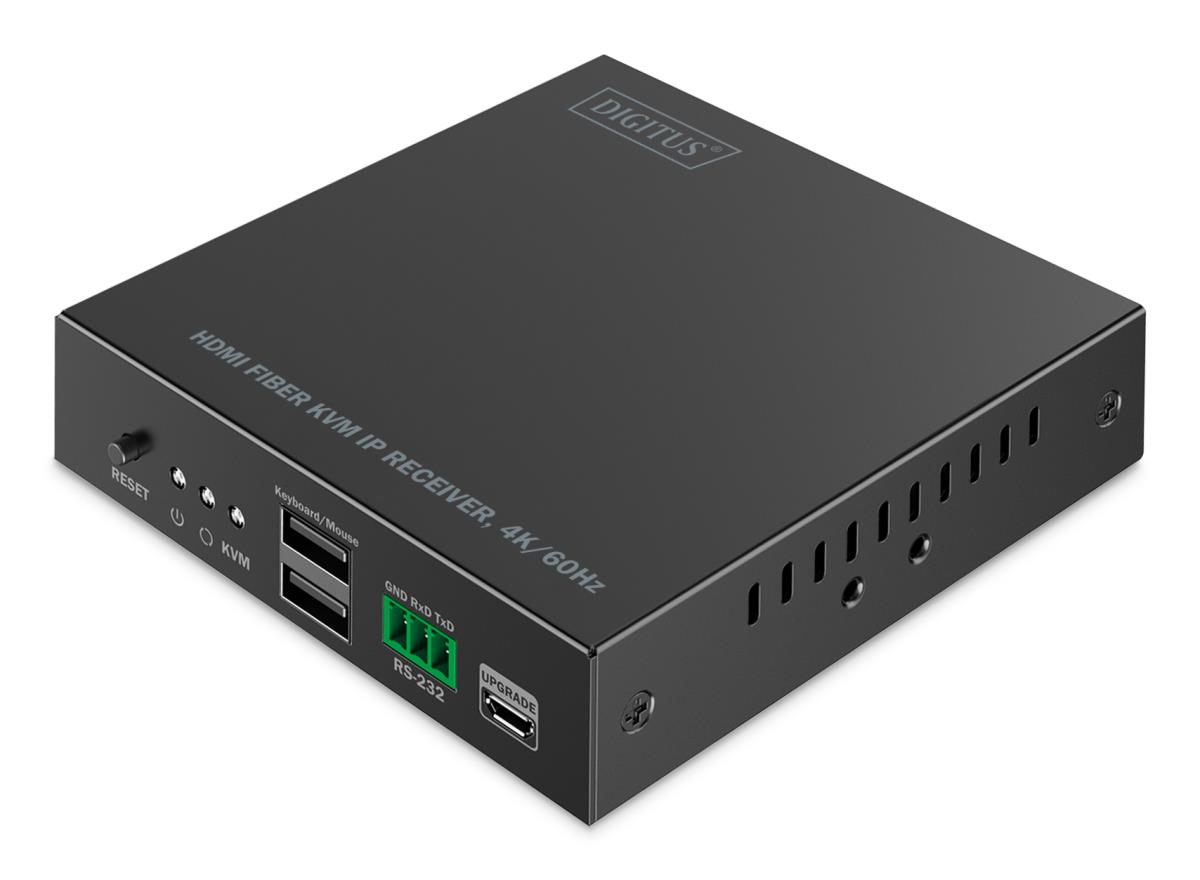

HDMI Fiber Receiver - for DS-55348 4K/60Hz 40 km/300m IP 1G Black
ITCurry #: M9239794 | Article #: DS-55349-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Expand the HDMI Fiber KVM IP Extender Set (DS-55348) with additional receiver units (253 max.) to play your AV content on multiple displays simultaneously
- Expandable via IP: Expand the HDMI Fiber KVM IP Extender Set (DS-55348) to up to 253 receivers (displays) - point-to-multipoint connection
- SFP modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC-SFP modules as well as singlemode and multimode fiber optic cables
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- KVM function - connection of mouse & keyboard to control the signal source
- Additional audio output: 3.5 mm stereo connection for separate audio transmission
- Max. Range: Singlemode (SM) up to 40 km, multimode (MM) up to 300 m (point-to-point connection)
- RS232 Pass Trough - Control of connected devices
The HDMI Fiber KVM IP Receiver is the ideal solution for professional AV applications where high-resolution content needs to be reproduced on multiple displays over long distances. In combination with the HDMI Fiber KVM IP Extender Set (DS-55348), this receiver enables a flexible point-to-multipoint connection with the option of integrating up to 253 receivers into the network. This makes the system perfect for digital signage, control rooms, conference environments or industrial applications that require reliable and low-latency video transmission. Thanks to the compatible SFP modules (LC Singlemode DN-81002, LC Multimode DN-81000) and the support of LC and SC SFP modules, the receiver can be used with various singlemode and multimode fiber optic cables. This ensures maximum flexibility and easy integration into existing network infrastructures. An outstanding feature of this receiver is the high-quality image transmission in 4K UHD at 60 Hz (3840x2160p). With a minimum latency of just 80 to 140 ms, content is transmitted with virtually no delay, which is particularly important in areas such as live broadcasts or interactive applications. In addition, the receiver has a KVM function that enables the connection of a mouse and keyboard to control the signal source directly. The 3.5 mm stereo connection, which enables separate audio transmission, provides even greater flexibility. This allows audio signals to be processed and output independently of the video signal.
| Kenmerken | |
| Soort | Ontvanger |
| Connectiviteitstechnologie | Bedraad |
| Maximaal bereik | 40000 m |
| Resolutie (maximum digitaal) | 3840 x 2160 Pixels |
| Maximale refresh snelheid | 60 Hz |
| Kleur van het product | Zwart |
| Materiaal | Metaal |
| Gemakkelijk te installeren | Ja |
| LED-indicatoren | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| Ontvanger | |
| Poorttype ontvanger lokale video | HDMI |
| Poorttype ontvanger lokaal toetsenbord/muis | USB |
| Aantal Micro-USB-poorten ontvanger | 1 |
| Aantal USB Type-A-poorten ontvanger | 2 |
| Poorten & interfaces | |
| USB-poorttype | USB Type-A/Micro-USB |
| HDMI versie | 2.0 |
| RS-232 port | 1 |
| Aantal ge‹nstalleerde SFP+ modules | 1 |
| USB 1.1 poort(en) | 2 |
| Remote (IR) uitgang | 1 |
| Energie | |
| AC-adapter, uitgangsspanning | 5 V |
| AC-adapter, uitgangsstroom | 2 A |
| Stroomverbruik (ontvanger) (max) | 7,5 W |
| Aansluiting voor netstroomadapter | Ja |
| Gewicht en omvang | |
| Receiver breedte | 10,3 cm |
| Diepte van de receiver | 10,6 cm |
| Receiver hoogte | 2,6 cm |
| Receiver gewicht | 303 g |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | USB |
| Snelle installatiehandleiding | Ja |
| Inclusief bevestigingsbeugel | Ja |
| Inclusief schroeven | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 50 øC |
| Overige specificaties | |
| HDCP | Ja |
| HDCP versie | 1.4/2.2 |
| Bandbreedte | 18 Gbit/s |
| Warranty | |
| Base Warranty | Non Non |
