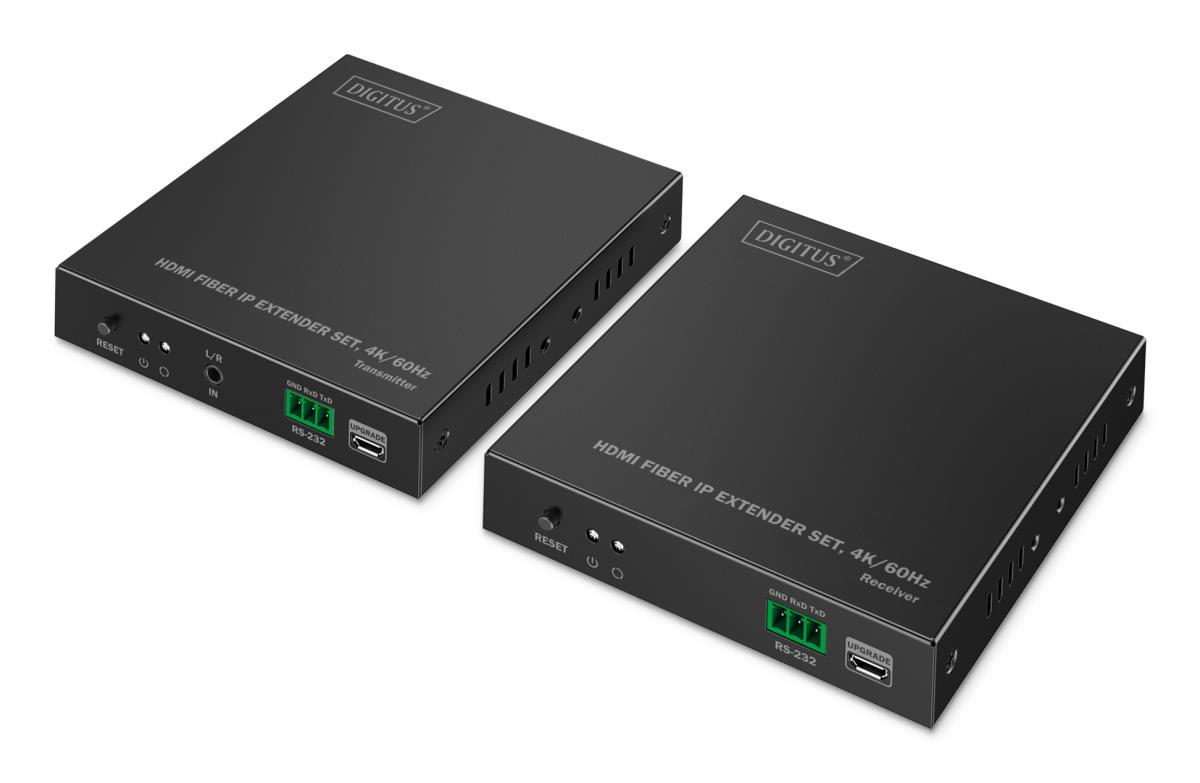

HDMI Fiber Extender Set - 4K/60Hz, 40 km/300m Black
ITCurry #: M9239878 | Article #: DS-55350-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Enables HDMI signal transmission in UHD resolution (4K/60Hz) over a distance of up to 40 km (singlemode) / 300 m (multimode) in point-to-point connection
- Long range: AV signal transmission via fiber optic cable - singlemode up to 40 km, multimode up to 300 m - point-to-point connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of 1G network switches for signal transmission at unlimited distance possible - cascading
- SFP modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC-SFP modules as well as singlemode and multimode fiber optic cables
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- Additional audio output: 3.5 mm stereo connection for separate audio transmission
- HDMI Loop-Out: Connection of a local monitor to the transmitter unit (TX)
- IR interface enables remote control of the input source from the output screen
The HDMI Fiber IP Extender Set, 4K/60Hz is the ideal solution for high-quality HDMI signal transmission over long distances. It enables the transmission of UHD signals in 4K/60Hz (3840x2160p) with minimal latency of just 80-140 ms, so that content is reproduced in razor-sharp picture quality and with virtually no delay. Thanks to modern fiber optic technology, the system achieves a maximum transmission distance of up to 40 km in singlemode or up to 300 m in multimode, making it perfect for professional AV installations. By using existing 1G network infrastructures or additional 1G network switches, the extender set enables flexible and powerful signal transmission. In addition, the range can be extended as required by cascading, making unlimited distances possible. For additional flexibility, the system is compatible with LC & SC SFP modules as well as singlemode and multimode fiber optic cables. Suitable SFP modules are available separately (singlemode: DN-81002, multimode: DN-81000). In addition to the excellent picture quality, the extender set also offers separate audio output via a 3.5 mm stereo connection, which enables flexible sound transmission. An HDMI loop-out allows a local monitor to be connected directly to the transmitter unit (TX), while the integrated IR interface enables remote control of the input source from the output screen. With its long range, excellent picture quality and versatile expansion options, the HDMI Fiber IP Extender Set is the perfect choice for professional applications such as conference rooms, control centers, digital signage and broadcast studios.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteundende kabel types | Fiber |
| Maximaal bereik | 40000 m |
| Maximale refresh snelheid | 60 Hz |
| Draad modus structuur | Multimode, Single-mode |
| RS-232-passthrough | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| LED-indicatoren | Ja |
| Ondersteunde video-modi | 2160p |
| Bandbreedte | 18 Gbit/s |
| HDCP | Ja |
| Materiaal | Metaal |
| Ophangsysteem voor aan de muur | Ja |
| HDCP versie | 1.4/2.2 |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| HDMI in | 1 |
| Aantal HDMI-uitgangen | 2 |
| HDMI versie | 2.0 |
| Vezel-optische connector | SFP |
| Fibre channel-poorten | 2 |
| Aantal USB-aansluitingen | 2 |
| USB-connectortype | Micro-USB |
| RS-232 ingangspoorten | 1 |
| RS-232 uitgangspoorten | 1 |
| 3,5 mm in | Ja |
| 3,5 mm-uitgang | Ja |
| Remote (IR) ingang | 2 |
| Remote (IR) uitgang | 2 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Type stroombron | DC |
| Bedrijfsspanning (zender) | 5 V |
| Output current | 2 A |
| Bedrijfsspanning (ontvanger) | 5 V |
| Stroomverbruik (zender) (max) | 7,5 W |
| Stroomverbruik (ontvanger) (max) | 7,5 W |
| Externe adapter | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 50 øC |
| Gewicht en omvang | |
| Receiver afmetingen (B x D x H) | 103 x 106 x 26 mm |
| Receiver gewicht | 286 g |
| Transmitter afmetingen (WxDxH) | 103 x 106 x 26 mm |
| Transmitter gewicht | 290 g |
| Verpakking | |
| Breedte verpakking | 176 mm |
| Diepte verpakking | 240 mm |
| Hoogte verpakking | 80 mm |
| Gewicht verpakking | 1,14 kg |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | IR |
| Snelstartgids | Ja |
| Montagebeugels meegeleverd | Ja |
| Montage gereedschap | Ja |
| Warranty | |
| Base Warranty | Non Non |
