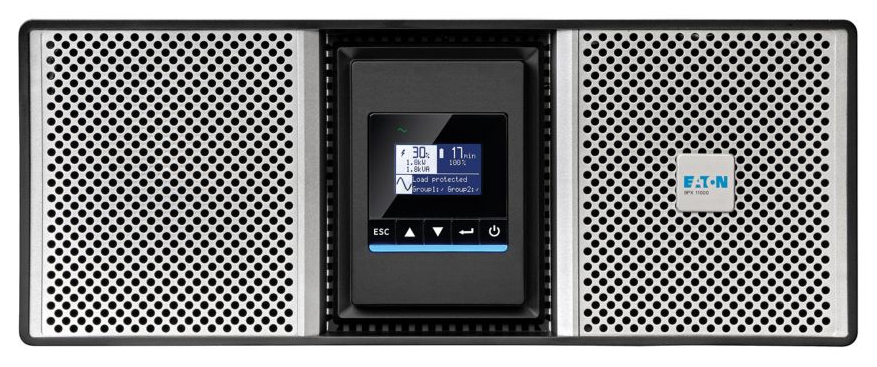

9PX 8000i RT4U Netpack G2 - 8000VA 8000W - Tower/Rack Network Card 4.5 min Runtime
ITCurry #: N4836820 | Article #: 9PX8KIRTNG2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Eaton 9PX Gen2 UPS Netpack, 8000 VA, 8000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 4U, Gigabit Network card included, Rack-mounting kit included
Kenmerken | |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 8 kVA |
Uitgangsvermogen | 8000 W |
Golfvorm | Zuivere sinus |
Ingang operation voltage (min) | 176 V |
Ingang operation voltage (max) | 276 V |
Frequentie | 40/70 Hz |
Uitgang operation voltage (min) | 200 V |
Uitgang operation voltage (max) | 240 V |
Output frequentie | 50/60 Hz |
Efficientie | 0,973 procent |
Power factor | 0,99 |
Geluidsniveau | 37 dB |
Poorten & interfaces | |
Stopcontacttypes | C13 stekker, Eindstation |
Stekker | Eindstation |
USB-poort | Ja |
Aantal USB 2.0-poorten | 1 |
RS-232 port | 1 |
Accu/Batterij | |
Batterijtechnologie | Sealed Lead Acid (VRLA) |
Batterij capaciteit | 9 Ah |
Accu/Batterij voltage | 12 V |
Hot-swap batterij | Nee |
Automatische batterij test | Ja |
Design | |
Vormfactor | Rackmontage/toren |
Rackcapaciteit | 4U |
Kleur van het product | Zwart, Zilver |
Soort bediening | Knoppen |
Type beeldscherm | LCD |
LED-indicatoren | Ja |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 0 - 40 øC |
Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
Certificaten | |
Certificaten van naleving | CE, UKCA, cULus |
Certificering | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM |
Inhoud van de verpakking | |
Rekbevestigingspakket | Ja |
Duurzaamheid | |
Duurzaamheidscertificaten | ENERGY STAR |
Gewicht en omvang | |
Breedte | 440 mm |
Diepte | 724 mm |
Hoogte | 174 mm |
Gewicht | 78,8 kg |
Verpakking | |
Beheerskaart inbegrepen | Ja |
Meegeleverde software | Eaton Brlightlayer Software suite |
Overige specificaties | |
Netspanning, in bedrijf | 230 V |
Nominale input voltage | 230 V |
Warranty | |
Base Warranty | Non Non |
