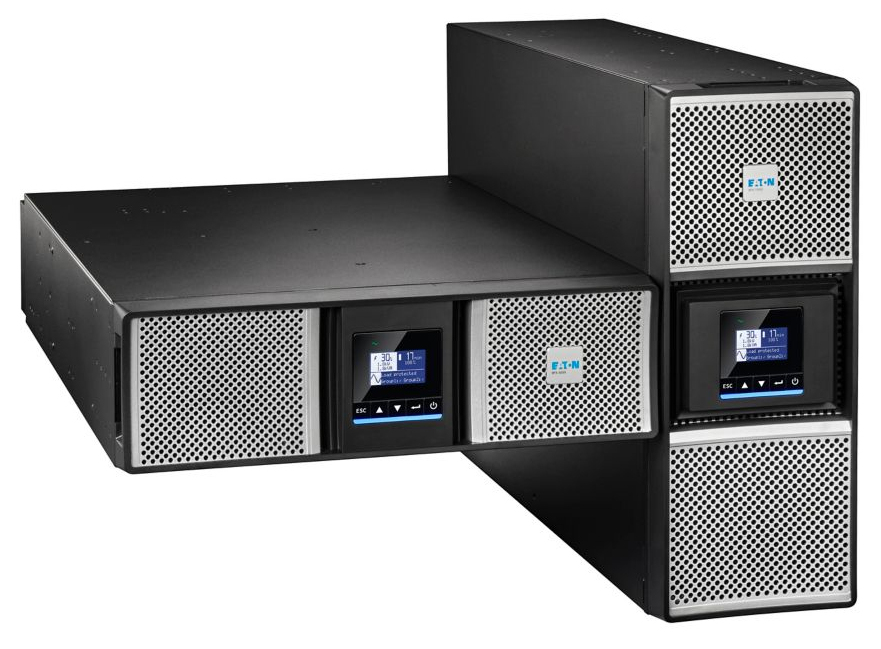

9PX 6000i RT3U HotSwap Netpack G2 - 6000VA 6000W - Tower/Rack Network Card 4 min Runtime
ITCurry #: N4836819 | Article #: 9PX6KIRTNBPG2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Eaton 9PX Gen2 UPS HotSwap Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (2) C13, (3) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass included
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 6 kVA |
| Uitgangsvermogen | 6000 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 176 V |
| Ingang operation voltage (max) | 276 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 200 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Efficientie | 0,965 procent |
| Power factor | 0,99 |
| Geluidsniveau | 40 dB |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker, Eindstation |
| Stekker | Eindstation |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| RS-232 port | 1 |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Batterij capaciteit | 5 Ah |
| Accu/Batterij voltage | 12 V |
| Hot-swap batterij | Ja |
| Automatische batterij test | Ja |
| Design | |
| Vormfactor | Rackmontage/toren |
| Rackcapaciteit | 3U |
| Kleur van het product | Zwart, Zilver |
| Soort bediening | Knoppen |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Certificaten | |
| Certificaten van naleving | CE, UKCA, cULus |
| Certificering | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM |
| Inhoud van de verpakking | |
| Rekbevestigingspakket | Ja |
| Meegeleverde kabels | USB-kabel |
| Duurzaamheid | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 684 mm |
| Hoogte | 130 mm |
| Gewicht | 45,1 kg |
| Verpakking | |
| Beheerskaart inbegrepen | Ja |
| Meegeleverde software | Eaton Brlightlayer Software suite |
| Overige specificaties | |
| Netspanning, in bedrijf | 230 V |
| Nominale input voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
