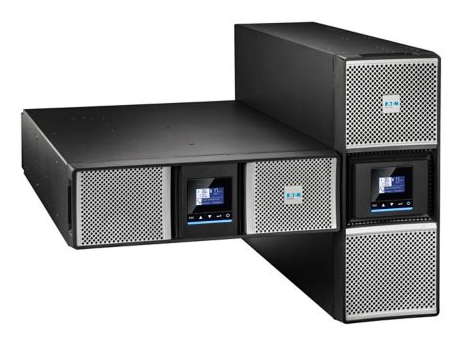

9PX 8000i RT4U HotSwap Netpack G2 - 8000VA 8000W - Tower/Rack Network Card 4.5
ITCurry #: N4836821 | Article #: 9PX8KIRTNBPG2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Eaton 9PX Gen2 UPS HotSwap Netpack, 8000 VA, 8000 W, Input: Hardwired, Outputs: (4) C39, Hardwired, Rack/tower, 4U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass included
Kenmerken | |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 8 kVA |
Uitgangsvermogen | 8000 W |
Golfvorm | Sinus |
Ingang operation voltage (min) | 100 V |
Ingang operation voltage (max) | 276 V |
Frequentie | 40/70 Hz |
Uitgang operation voltage (min) | 200 V |
Uitgang operation voltage (max) | 240 V |
Output frequentie | 50/60 Hz |
Gemiddeld stroomverbruik ( bedrijfsresultaat ) | 214 W |
Warmtedissipatie | 728 BTU/h |
Aantal input fases | 1 |
Aantal output fases | 1 |
Efficientie | 97,3 procent |
Effici‰ntie (ECO-modus) | 99,5 procent |
Input vermogensfactor | 0,99 |
Geluidsniveau | 37 dB |
Poorten & interfaces | |
Stopcontacttypes | C13 stekker, C19 stekker |
USB-poort | Ja |
RS-232 port | 1 |
Accu/Batterij | |
Batterijtechnologie | Sealed Lead Acid (VRLA) |
Batterij capaciteit | 9 Ah |
Accu/Batterij voltage | 12 V |
Typische backup tijd op halve lading | 15,2 min |
Automatische batterij test | Ja |
Design | |
Vormfactor | Rackmontage/toren |
Rackcapaciteit | 4U |
Snoerlengte | 1,8 m |
Kleur van het product | Zwart, Zilver |
Type beeldscherm | LCD |
LED-indicatoren | Ja |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 0 - 40 øC |
Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
Hoogte, in bedrijf | 0 - 3000 m |
Certificaten | |
Certificaten van naleving | BSMI, CE, Elektromagnetische compatibiliteit (EMC), KCC, Laagspanningsrichtlijn (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
Certificering | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
Inhoud van de verpakking | |
Rekbevestigingspakket | Ja |
Meegeleverde kabels | Uitgangsstroomkabel, USB-kabel |
Snelle installatiehandleiding | Ja |
Duurzaamheid | |
Duurzaamheidscertificaten | ENERGY STAR |
Gewicht en omvang | |
Breedte | 440 mm |
Diepte | 725 mm |
Hoogte | 174 mm |
Gewicht | 83,4 kg |
Warranty | |
Base Warranty | Non Non |
