4x1 HDMI Switch - 8K/60Hz (4:4:4), Toslink, Stereo, EDID Control
ITCurry #: M9239876 | Article #: DS-55335-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Expand your TV/monitor with additional HDMI connections - Convenient switching between signal sources without having to reconnect & additional audio extractor: Toslink / stereo (3.5 mm) for separate playback of the audio signal
- Convenient switching between 4 signal sources via remote control, on the device itself or via automatic detection
- Audio extractor: Toslink / stereo (3.5 mm) - decoupling and separate playback of the audio signal
- EDID switch / management
- Max. Resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.3
- Supports CEC (Consumer Electronics Control)
- Supports Deep Color (36 bit)
- HDMI 2.1

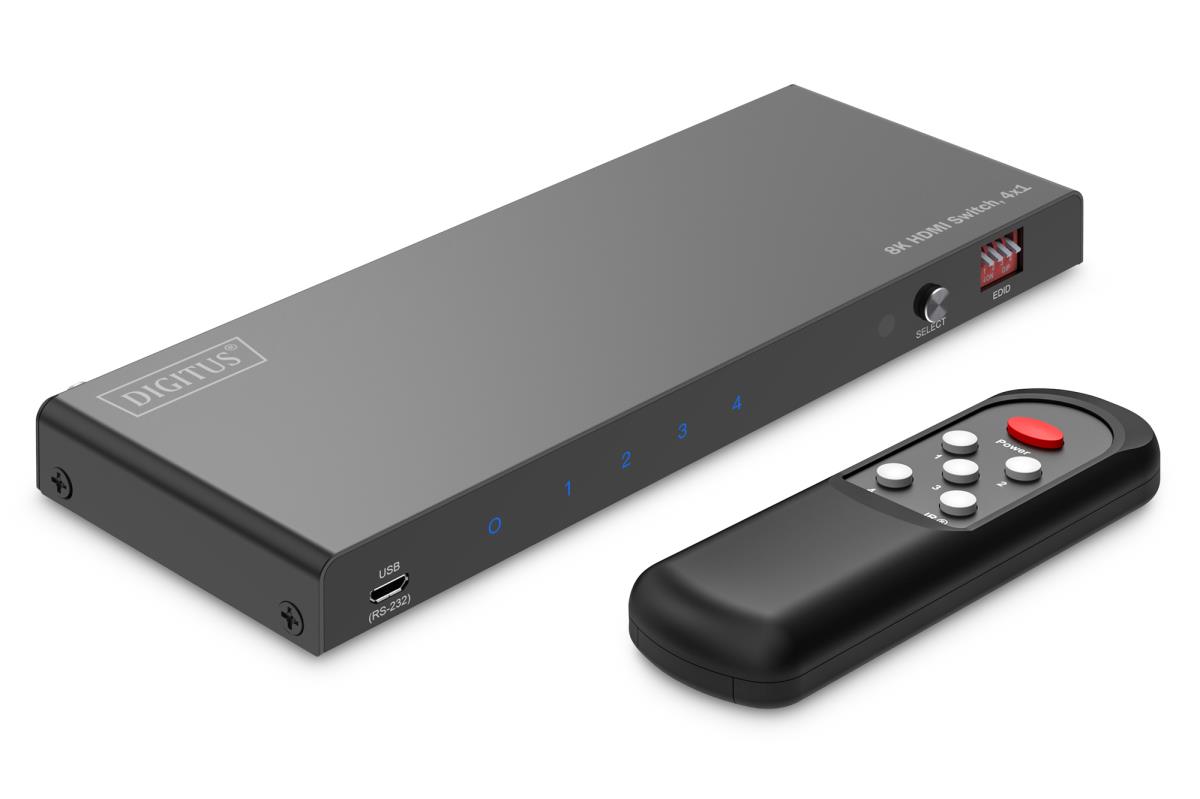

The DIGITUS® 8K HDMI Switch, 4x1 offers additional HDMI connections for your output display - 4 signal sources can be connected to the screen via just 1 HDMI connection. Audio signals can also be decoupled via Toslink or 3.5 mm stereo connection and played back separately. Conveniently switch between signal sources via remote control, on the device itself or via automatic detection.
| Poorten & interfaces | |
| Aansluiting video | HDMI |
| Aantal HDMI-poorten | 5 |
| HDMI versie | 2.1 |
| HDMI in | 4 |
| Aantal HDMI-uitgangen | 1 |
| USB-poorttype | Micro-USB |
| S/PDIF-uitgang | Ja |
| 3,5 mm-uitgang | Ja |
| RS-232 port | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Kenmerken | |
| Materiaal | Metaal |
| Kleur van het product | Zwart |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| Extended display identification data (EDID) | Ja |
| HDR-ondersteuning | Ja |
| HDCP | Ja |
| Maximale refresh snelheid | 60 Hz |
| Ondersteunde grafische resoluties | 7680 x 4320 |
| Bandbreedte | 48 Gbit/s |
| LED-indicatoren | Ja |
| Maximum resolutie | 7680 x 4320 Pixels |
| HD type | 8K Ultra HD |
| Kleurdiepte | 36 Bit |
| HDCP versie | 2.3 |
| Energie | |
| Stroomverbruik (typisch) | 5 W |
| Gewicht en omvang | |
| Breedte | 71 mm |
| Diepte | 188 mm |
| Hoogte | 18 mm |
| Gewicht | 287 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Snelstartgids | Ja |
| Afstandsbediening inbegrepen | Ja |
| Inclusief AC-adapter | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Warranty | |
| Base Warranty | Non Non |
