1x2 HDMI Splitter - 8K/60Hz (4:4:4), Toslink, Stereo, EDID Control
ITCurry #: M9239877 | Article #: DS-55339-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

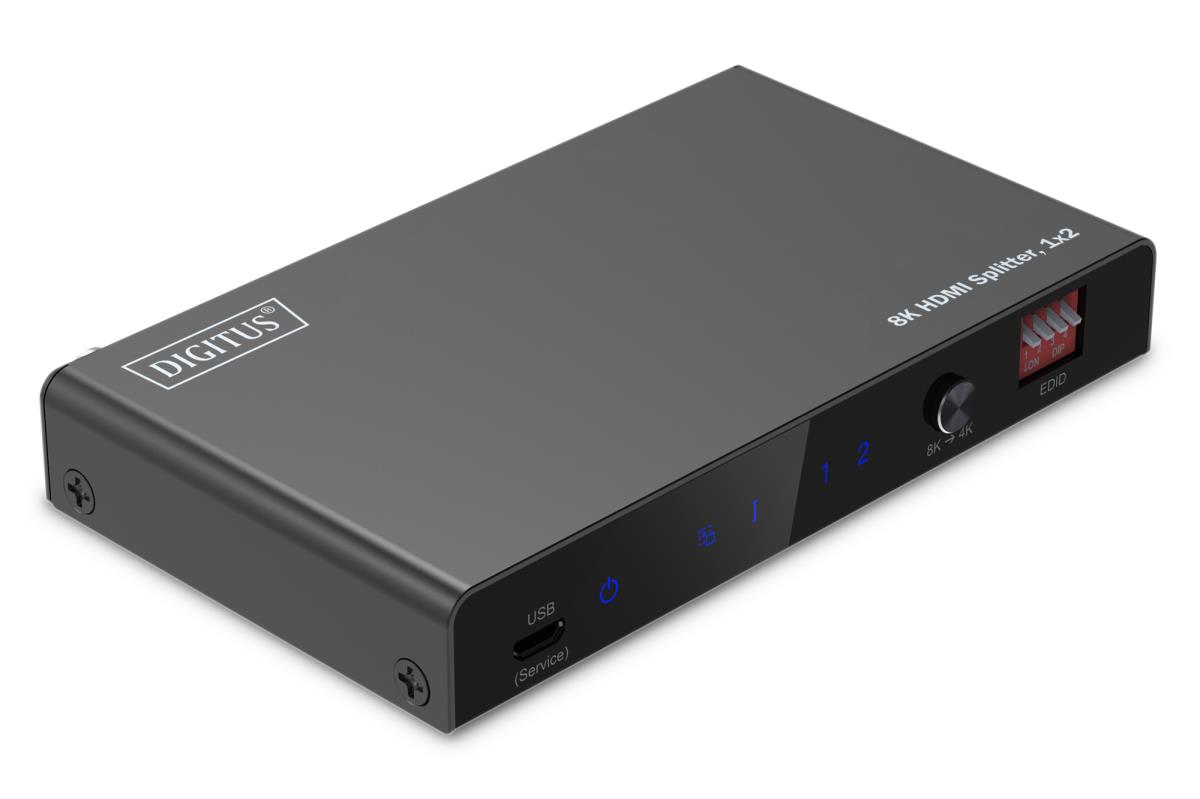

The HDMI Splitter from DIGITUS® distributes/mirrors audio and video signals from your HDMI device to 2 televisions, screens or projectors with a resolution of max. 8K/60Hz
- Distributes an HDMI signal to 2 TVs/monitors/projectors
- Audio extractor: Toslink / stereo (3.5 mm) - decoupling and separate playback of the audio signal
- EDID switch / management
- Downscaler function (8K -> 4K or 2K) - scales down the resolution if required, so no display remains black
- Max. Resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.3
- Supports Deep Color (36 bit)
- HDMI 2.1
The HDMI Splitter from DIGITUS® distributes/mirrors audio and video signals from your HDMI device to 2 TVs, monitors or projectors in a resolution of UHD 8K/60Hz. Audio signals can also be decoupled via Toslink or 3.5 mm stereo connection and played back separately. The EDID switch can be used to make settings to match the connected displays.
| Poorten & interfaces | |
| Aansluiting video | HDMI |
| Video uit | 2x HDMI |
| HDMI versie | 2.1 |
| Hoeveelheid Video ports | 3 |
| Hoeveelheid Audio ports | 2 |
| Seri‰le poort(en) | 1 |
| Digitale audio, optische uitgang | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Kenmerken | |
| Kleur van het product | Zwart |
| Materiaal behuizing | Metaal |
| Maximum resolutie | 7680 x 4320 Pixels |
| HD type | 8K Ultra HD |
| Kleurdiepte | 32 Bit |
| Maximale refresh snelheid | 60 Hz |
| HDCP versie | 2.3 |
| Extended display identification data (EDID) | Ja |
| HDR-ondersteuning | Ja |
| Overdrachtssnelheid | 48 Gbit/s |
| HDCP | Ja |
| LED-indicatoren | Ja |
| Energie | |
| Spanning | 5 V |
| Stroomverbruik (typisch) | 5 W |
| Gewicht en omvang | |
| Breedte | 71 mm |
| Diepte | 122 mm |
| Hoogte | 18 mm |
| Gewicht | 193 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Inhoud van de verpakking | |
| Gebruiksaanwijzing | Ja |
| Inclusief AC-adapter | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Warranty | |
| Base Warranty | Non Non |
