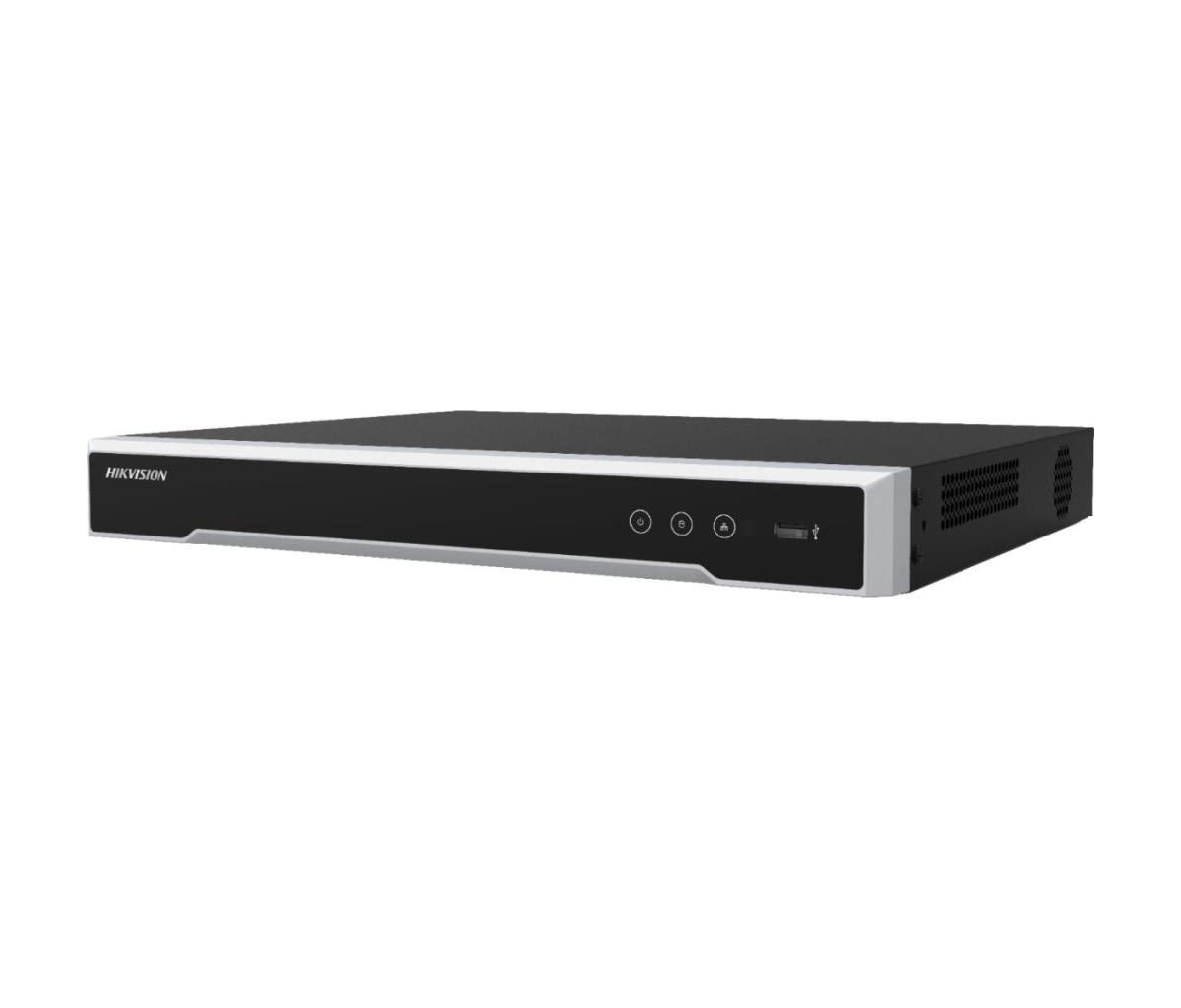

Network Video Recorder Ds-7608ni-m2/8p(std)
ITCurry #: T4498255 | Article #: DS-7608NI-M2/8P(STD)-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
Storage and Playback
- Up to 2 SATA interfaces for HDD connection
- 8-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 8 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug
| Prestatie | |
| Videoingangkanalen | 8 kanalen |
| Alarmingangkanalen | 4 |
| Alarmuitgangkanalen | 1 |
| Aantal gelijktijdig afgespeelde kanalen | 8 kanalen |
| Maximum resolutie | 7680 x 4320 Pixels |
| Ondersteunende oplossingen | 8K (7680 ž 4320)/30Hz, 4K (3840 ž 2160)/60Hz, 4K (3840 ž 2160)/30Hz, 2K (2560 ž 1440)/60Hz, 1920 ž 1080/60Hz, 1600 ž 1200/60Hz, 1280 ž 1024/60Hz, 1280 ž 720/60Hz, 1024 ž 768/60 |
| Ondersteund audioformaat | G.711 A-law, G.711 æ-law, G.722, G.726 |
| Ondersteunde videoformaten | H.264, H.264+, H.265, H.265+, MPEG4 |
| Ingang bandbreedte | 128 Mbit/s |
| Uitvoer bandbreedte | 256 Mbit/s |
| Audiosysteem | 2-weg |
| Draadloos LAN | |
| Wifi | Nee |
| Harde schijf | |
| HDD capaciteit | 0 GB |
| Maximum aantal HDD's per behuizing | 2 |
| Maximale opslagcapaciteit | 14 TB |
| HDD interface | SATA, SATA II, SATA III |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 9 |
| Power over Ethernet (PoE) | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Hoeveelheid Power over Ethernet (PoE) ports | 8 |
| BNC video-uitgang | Ja |
| HDMI-uitgang | Ja |
| Aantal HDMI-poorten | 1 |
| VGA (D-Sub) uitgang ports | 1 |
| Aantal USB 2.0-poorten | 1 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Audio RCA-ingangen | 1 |
| Audio RCA-uitgangen | 1 |
| Ondersteunde netwerkprotocollen | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Kenmerken | |
| Rackcapaciteit | 1U |
| Merkcompatibiliteit | Hikvision Digital Technology |
| Aan/uitschakelaar | Ja |
| Kleur van het product | Zwart |
| Energie | |
| Stroomverbruik (typisch) | 15 W |
| Output current | 3,33 A |
| Spanning | 12 V |
| Totaal Power over Ethernet (PoE)-budget | 120 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Gewicht en omvang | |
| Breedte | 385 mm |
| Diepte | 315 mm |
| Hoogte | 52 mm |
| Gewicht | 3 kg |
| Warranty | |
| Base Warranty | Non Non |
