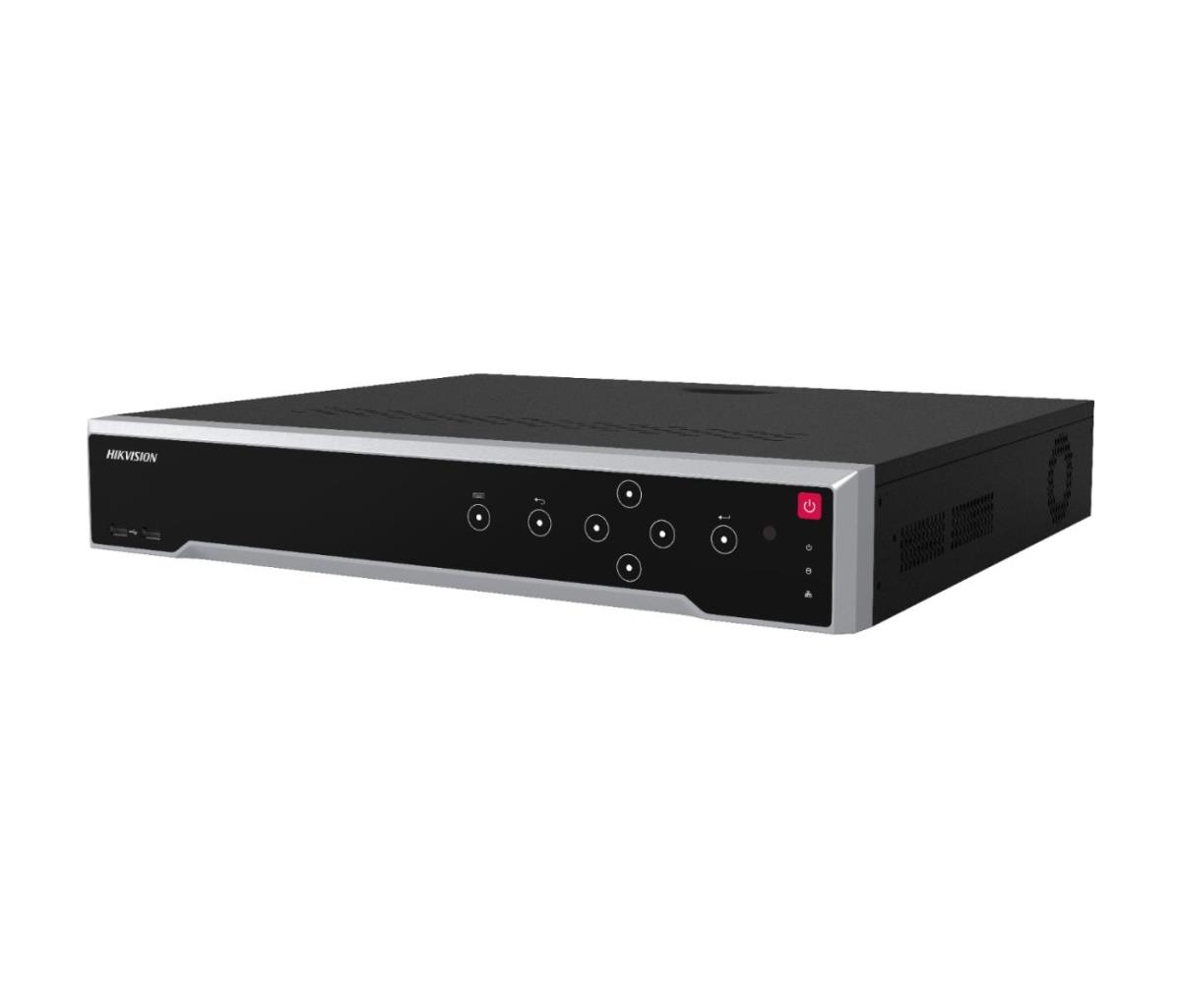

Network Video Recorder Ds-7716ni-m4 16-ch 1.5u 8k
ITCurry #: T4498378 | Article #: DS-7716NI-M4-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
| Prestatie | |
| Videoingangkanalen | 16 kanalen |
| Alarmingangkanalen | 16 |
| Alarmuitgangkanalen | 9 |
| Aantal gelijktijdig afgespeelde kanalen | 16 kanalen |
| Maximum resolutie | 7680 x 4320 Pixels |
| Ondersteunende oplossingen | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Tweezijdig gesprek | Ja |
| Ondersteund audioformaat | AAC, G.711 A-law, G.711 æ-law, G.722, G.726 |
| Ondersteunde videoformaten | H.264, H.264+, H.265, H.265+ |
| Ingang bandbreedte | 256 Mbit/s |
| Uitvoer bandbreedte | 256 Mbit/s |
| Draadloos LAN | |
| Wifi | Nee |
| Harde schijf | |
| Maximum aantal HDD's per behuizing | 5 |
| Maximale opslagcapaciteit | 14 TB |
| HDD interface | eSATA, SATA |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Power over Ethernet (PoE) | Nee |
| Ethernet LAN, data-overdrachtsnelheden | 10,1000,100 Mbit/s |
| BNC video-uitgang | Ja |
| HDMI-uitgang | Ja |
| Aantal HDMI-poorten | 2 |
| VGA (D-Sub) uitgang ports | 1 |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Audio RCA-ingangen | 1 |
| Audio RCA-uitgangen | 1 |
| Aantal eSATA-poorten | 1 |
| Aantal Internal SATA ports | 4 |
| RS-485 ports | 2 |
| RS-232 | Ja |
| eSATA | Ja |
| RS-232 port | 1 |
| Ondersteunde netwerkprotocollen | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Kenmerken | |
| Rack-montage | Ja |
| Rackcapaciteit | 1.5U |
| Merkcompatibiliteit | Hikvision Digital Technology |
| Aan/uitschakelaar | Ja |
| Kleur van het product | Zwart |
| Certificering | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Energie | |
| Vermogensverbruik (max) | 15 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Output current | 1 A |
| Spanning | 12 V |
| Totaal Power over Ethernet (PoE)-budget | 200 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Gewicht en omvang | |
| Breedte | 445 mm |
| Diepte | 400 mm |
| Hoogte | 75 mm |
| Gewicht | 5 kg |
| Warranty | |
| Base Warranty | Non Non |
