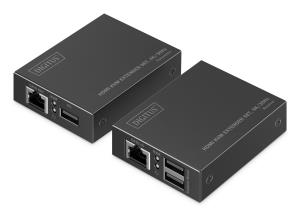

Wireless HDMI KVM Extender Set 200 m, Full HD
ITCurry #: M9238932 | Article #: DS-55321-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Wirelessly transmits HDMI video and audio signals in Full HD over a distance of up to 200 m with an unobstructed view and offers KVM functionality
- Wireless HDMI signal transmission up to 200 m (with unobstructed view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports transmissions resolutions up to Full HD (1080p / 60 Hz)
- KVM functionality for connection to mouse and keyboard
- Touch Screen Back Control - Supports touch screen panels (via USB connection on the receiver)
- Supports input signals with up to 4K/60Hz
- HDMI loop-out for connection of a local monitor to the transmitter unit
- Auto-pairing function - No configuration required
- AES 128 bit encryption
- WPA2 protocol
The Wireless HDMI® KVM Extender Set transfers your HDMI® video and audio signals in Full HD without a cable over a distance of up to 200 m (unobstructed view). Thanks to KVM functionality, the mouse/keyboard can be connected to the receiver unit, which makes it possible to control the signal source directly on the output device. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to control the output to the receiver. The auto-pairing function ensures straightforward installation.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Connectiviteitstechnologie | Draadloos |
| Maximaal bereik | 200 m |
| Wi-Fi-standaarden | Wi-Fi 5 (802.11ac) |
| Resolutie (maximum digitaal) | 1920 x 1080 Pixels |
| Kleur van het product | Zwart |
| Land van herkomst | China |
| Gemakkelijk te installeren | Ja |
| Plug and play | Ja |
| Zender | |
| Poorttype zender video | HDMI |
| Poorttype zender lokale video | HDMI |
| Poorttype zender lokaal toetsenbord/muis | USB |
| Ontvanger | |
| Poorttype ontvanger lokale video | HDMI |
| Poorttype ontvanger lokaal toetsenbord/muis | USB |
| Energie | |
| Stroomverbruik (zender) (max) | 2,5 W |
| Stroomverbruik (ontvanger) (max) | 2,5 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Gewicht en omvang | |
| Zender breedte | 15,5 cm |
| Zender diepte | 7,9 cm |
| Zender hoogte | 2,2 cm |
| Transmitter gewicht | 326 g |
| Receiver breedte | 15,5 cm |
| Diepte van de receiver | 7,9 cm |
| Receiver hoogte | 2,2 cm |
| Receiver gewicht | 326 g |
| Verpakking | |
| Breedte verpakking | 230 mm |
| Diepte verpakking | 250 mm |
| Hoogte verpakking | 66 mm |
| Gewicht verpakking | 1,16 kg |
| Technische details | |
| Maximum resolutie | 1920 x 1080 Pixels |
| Verpakkingsvolume | 3795 cmü |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | USB Type-A naar Micro-USB Type-B |
| Gebruikershandleiding | Ja |
| Poorten & interfaces | |
| USB-poorttype | USB Type A/USB Type-C |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| Code geharmoniseerd systeem (HS) | 84733080 |
| Warranty | |
| Base Warranty | Non Non |
