Gigabit Switch - 24-port 10/100/1000Base-T
ITCurry #: M9239766 | Article #: DN-80113-2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

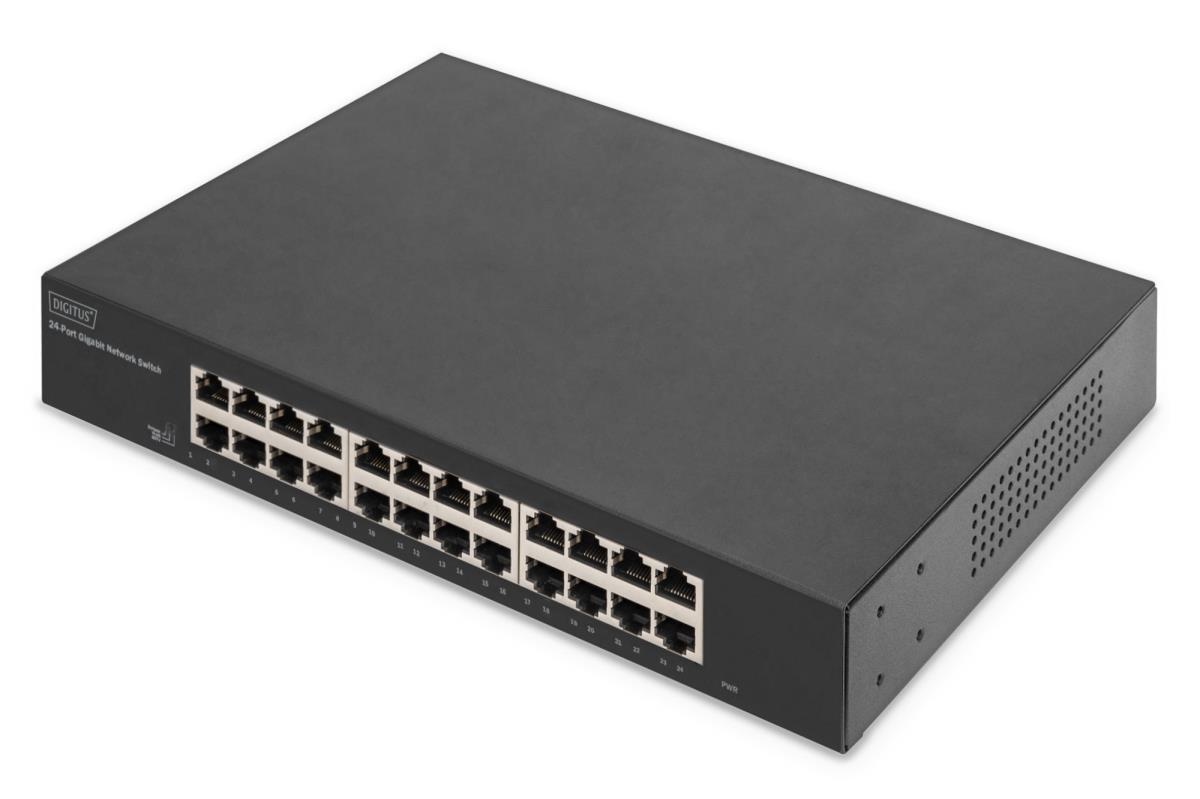

The DN-80113-2 24 port unmanaged switch is the ideal choice for companies looking for a reliable, high-performance network solution with advanced features and robust security.
- Gigabit speed: 24x 10/100/1000Mbps RJ45 ports deliver ultra-fast network speeds and ensure a smooth and uninterrupted data flow
- IEEE compatibility: Complies with several IEEE standards (IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3az) and thus guarantees compatibility with a wide range of network devices
- Auto MDI/MDIX: Simplifies network setup with automatic port flipping and eliminates the need for crossover cables
- Full-duplex and half-duplex flow control: Supports IEEE802.3x full-duplex flow control and backpressure half-duplex flow control to improve network efficiency
- Advanced security: Features a perfect security mechanism to protect your network from potential threats
- Intelligent data processing: Intelligent detection of wire-speed forwarding and store-and-forward mode for optimal data processing
- VLAN and CCTV support: Increases network segmentation and supports CCTV applications for improved network management
- Robust construction: Fanless design and robust construction with overvoltage and electrostatic protection ensure durability and reliability
- Energy efficient: Low power consumption with a total output of just 14.4 W, making it an environmentally friendly choice
- Easy installation: Includes all necessary accessories such as a power cable, feet, a rack mounting kit, screws and a user manual for easy setup
The Digitus DN-80113-2 unmanaged switch with 24 RJ45 ports is an advanced network solution that meets the demanding requirements of small to medium-sized businesses. This powerful switch provides a seamless and secure network experience and ensures reliable and efficient data transmission in your network infrastructure. With robust features and superior technology, the DN-80113-2 is the perfect addition to any modern network.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 24 |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Ondersteundende kabel types | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| VLAN=ondersteuning | Nee |
| Data-uitwisseling | |
| Switchingcapaciteit | 48 Gbit/s |
| Verzending snelheid | 35,7 Mpps |
| MAC-adrestabel | 8000 entries |
| Store-and-forward | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 15000 |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| LED-indicatoren | Activiteit, Link, Stroom |
| Prestatie | |
| Fanloos | Ja |
| Mean time between failures (MTBF) | 100000 uur |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Stroomspanning bescherming | Overspanning |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Gewicht en omvang | |
| Breedte | 180 mm |
| Diepte | 44 mm |
| Hoogte | 280 mm |
| Gewicht | 1,54 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Gebruikershandleiding | Ja |
| Rekbevestigingspakket | Ja |
| Verpakking | |
| Breedte verpakking | 230 mm |
| Diepte verpakking | 80 mm |
| Hoogte verpakking | 370 mm |
| Warranty | |
| Base Warranty | Non Non |
