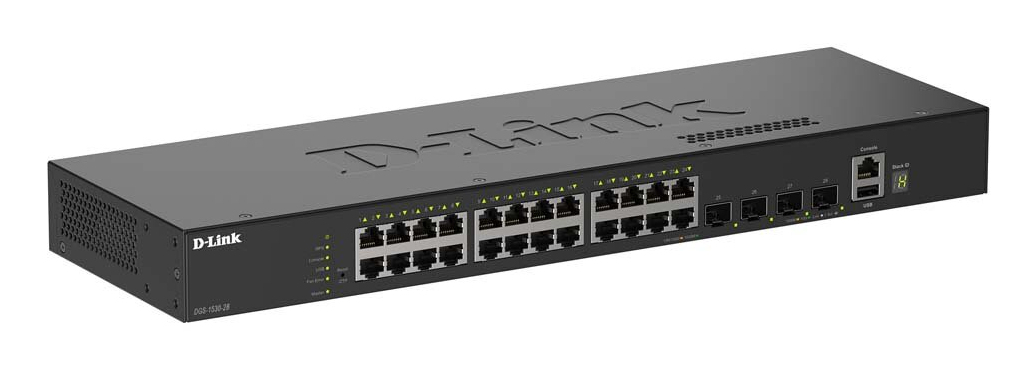

Switch Dgs-1530-28 28-port 24 X 10/100/1000base-t Rj-45 L2 Stackable Smart Managed
ITCurry #: 12135356 | Article #: DGS-1530-28/E-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DGS-1530 Series are part of the Layer 2 family of D-Link’s Stackable Smart Switch product line that provides wired Gigabit speeds for Metro Ethernet and campus networks. They feature a variety of ports, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1530 Series Stackable Smart Switch ideal for Metro Ethernet and campus applications.
Product Highlights
Comprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment
Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability
Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Traffic-classificatie | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF+ | 4 |
| Aantal USB Type-A-poorten | 1 |
| Console port | RJ-45 |
| Aantal USB 2.0-poorten | 1 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | Ja |
| Port mirroring | Ja |
| Full duplex | Ja |
| Op beleid gebaseerde routering | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,1000,100 Mbit/s |
| Auto-negotiation | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4096 |
| Data-uitwisseling | |
| Switchingcapaciteit | 128 Gbit/s |
| Verzending snelheid | 95,24 Mpps |
| MAC-adrestabel | 16000 entries |
| Store-and-forward | Ja |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 1,5 MB |
| Beveiliging | |
| Access Control List (ACL) | Ja |
| Toegangsbeheerlijst (ACL) uitgaand | 1000 |
| Toegangsbeheerlijst (ACL) inkomend | 2000 |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMP, SNMPv2, SNMPv3 |
| MAC adres filtering | Ja |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| Wachtwoordbeveiliging | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Aantal ventilatoren | 1 ventilator(en) |
| Prestatie | |
| Geluidsniveau | 40,9 dB |
| Mean time between failures (MTBF) | 530607 uur |
| Energie | |
| Stroombron | AC |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 32 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 50 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Warmtedissipatie | 109,1 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 140 mm |
| Hoogte | 44 mm |
| Gewicht | 2,15 kg |
| Warranty | |
| Base Warranty | Non Non |
