Thunderbolttm 4 Certified 16-in-1 Quadra Displays Docking Station With Displaylink
ITCurry #: M4192960 | Article #: CSV-1583-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

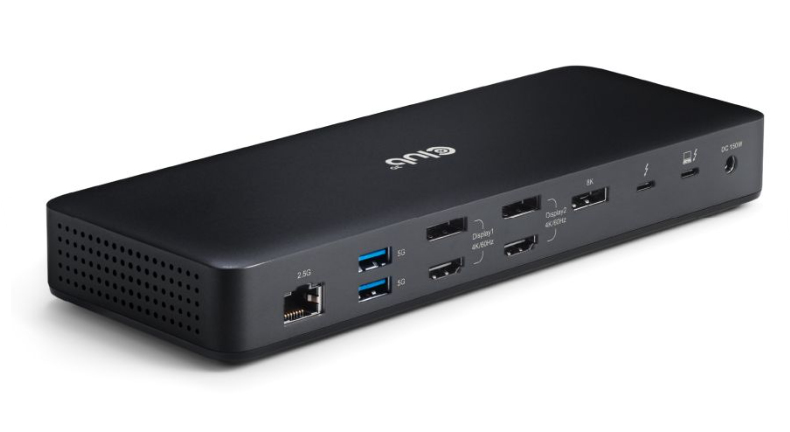

The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | Thunderbolt 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal HDMI-poorten | 2 |
| Aantal DisplayPorts | 3 |
| Aantal Thunderbolt 4-poorten | 4 |
| Combo koptelefoon/microfoon port | Ja |
| Aansluiting voor netstroomadapter | Ja |
| Netwerk | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), SD |
| Overdrachtssnelheid | 40 Gbit/s |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Kleur van het product | Zwart |
| Energie | |
| Lengte stroomkabel | 1 m |
| Thunderbolt 4-kabellengte | 0,8 m |
| Software | |
| Ondersteunt Windows | Windows 10 |
| Ondersteunt Mac-besturingssysteem | Ja |
| Gewicht en omvang | |
| Breedte | 85 mm |
| Diepte | 225 mm |
| Hoogte | 22 mm |
| Gewicht | 594 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 125 mm |
| Diepte verpakking | 275 mm |
| Hoogte verpakking | 87 mm |
| Gewicht verpakking | 796 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | Stroom |
| Warranty | |
| Base Warranty | Non Non |
