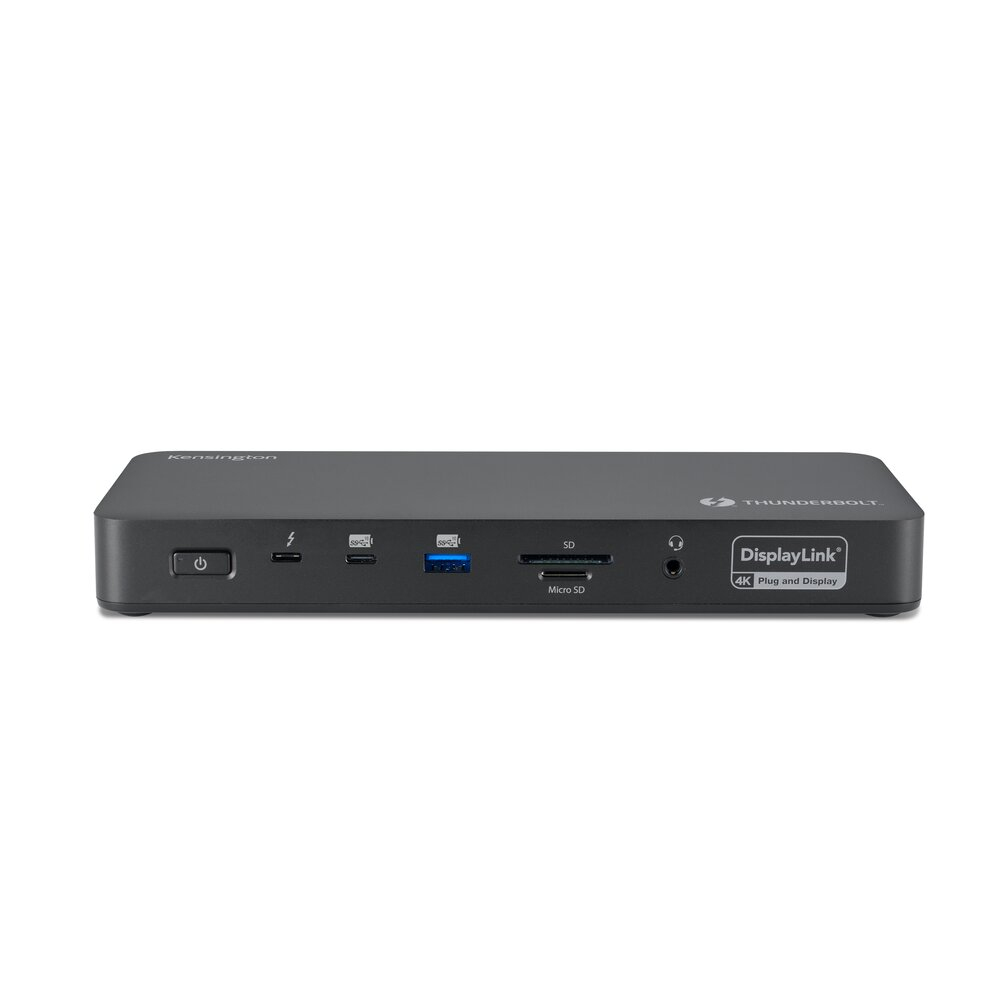

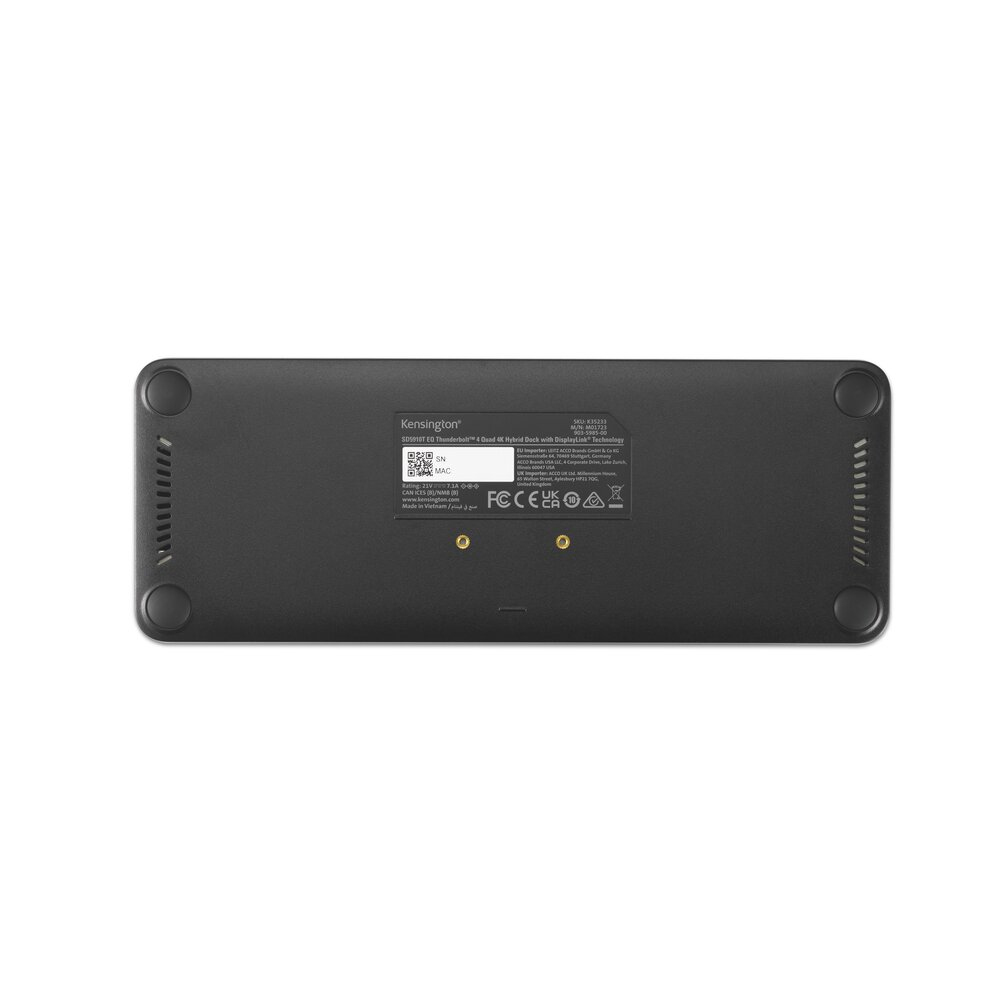

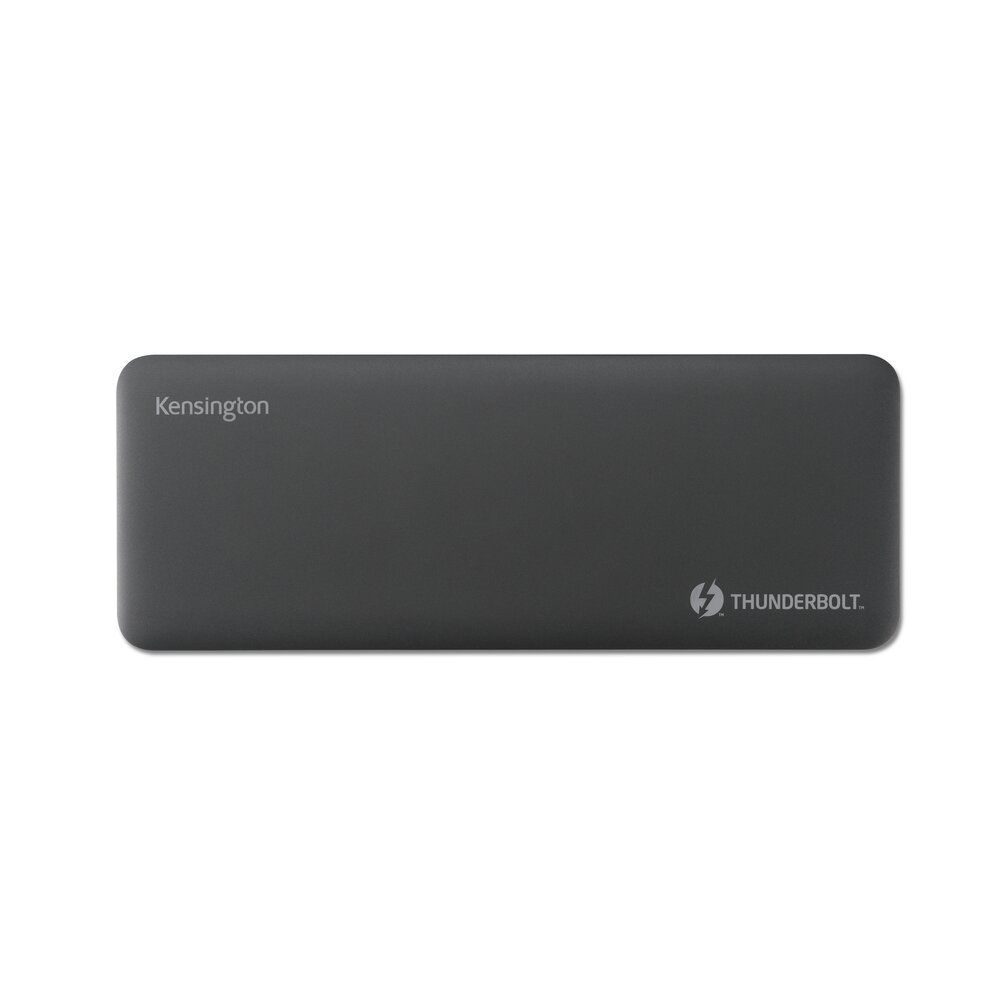

SD5920T EQ Thunderbolt 4 DisplayLink Docking Station
ITCurry #: 29056250 | Article #: K35234EU-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
IT professionals working in mixed technology environments often require versatile docking solutions to optimise productivity. For users who need to manage multiple tasks simultaneously such as software developers, graphic designers or data analysts, having the capability to connect up to four external displays is essential. The SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is designed to meet these needs, providing a seamless connection for both Thunderbolt™ and USB-C® devices. This high-speed dock supports stunning Quad 4K video output across Windows, macOS and ChromeOS and enhances workflow efficiency by allowing users to multitask effortlessly.
Quad 4K Video Output
Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. Provides flexible video connections (HDMI®, DP and TB4) without the need for cumbersome adapters. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
Universal Compatibility
A quick and powerful solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
Recycled Materials
The SD5920T is composed of 100% post-consumer recycled (PCR) aluminium* and is delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
Thunderbolt™ 4 Hybrid Technology
Transfers up to 40Gbps of data, video , and audio. Provides daisy chain support for SSDs, monitors , and other Thunderbolt™ devices. Blocks peripheral devices from unauthorised access to system memory using Intel VT-d DMA protection.
Up to 100W Charging (96W certified)
Charges any Thunderbolt™ 4, Thunderbolt™ 3, USB4® or USB-C® laptop, while also providing power to any connected USB-C® or USB4® accessories, including phones, tablets and watches. Includes KonstantCharge™, enabling connected devices to charge even when your host device is undocked.

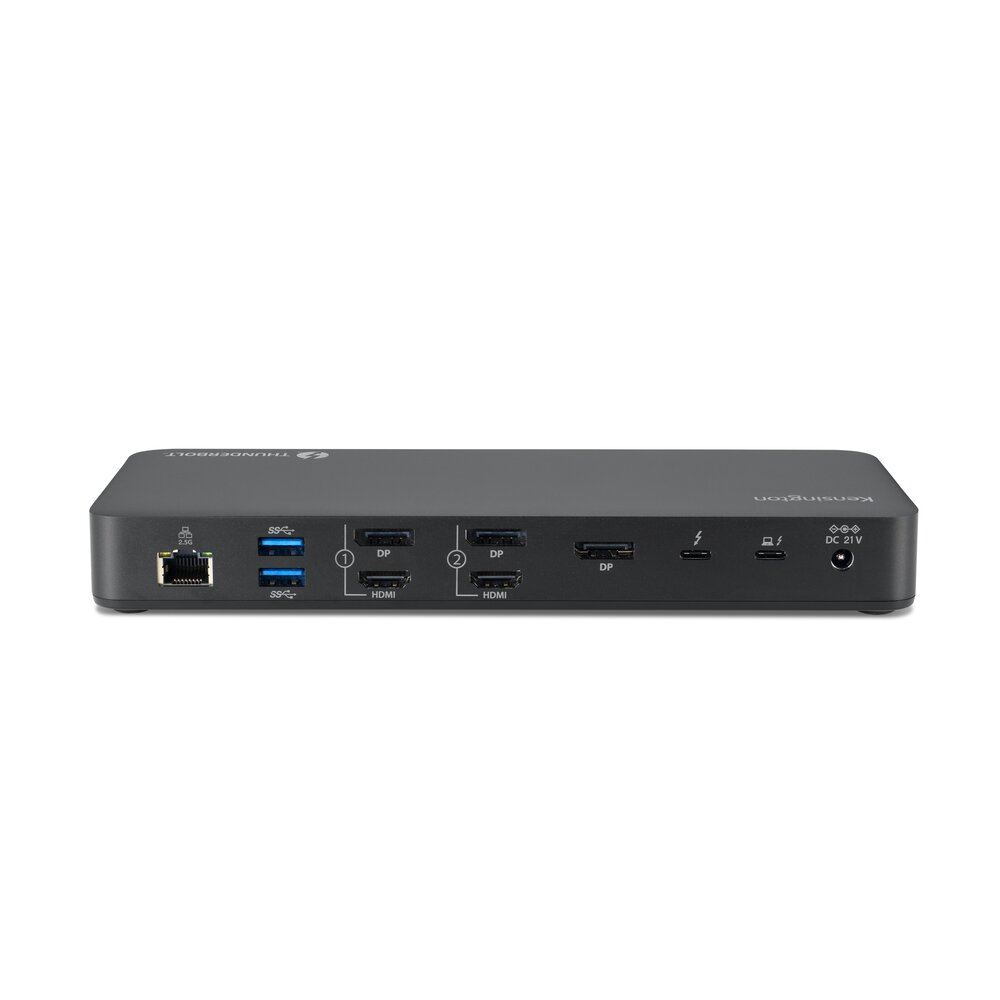

Productive 16-in-1 Design
16 ports deliver expanded connectivity options. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader and 1 x 2.5Gbps Ethernet.

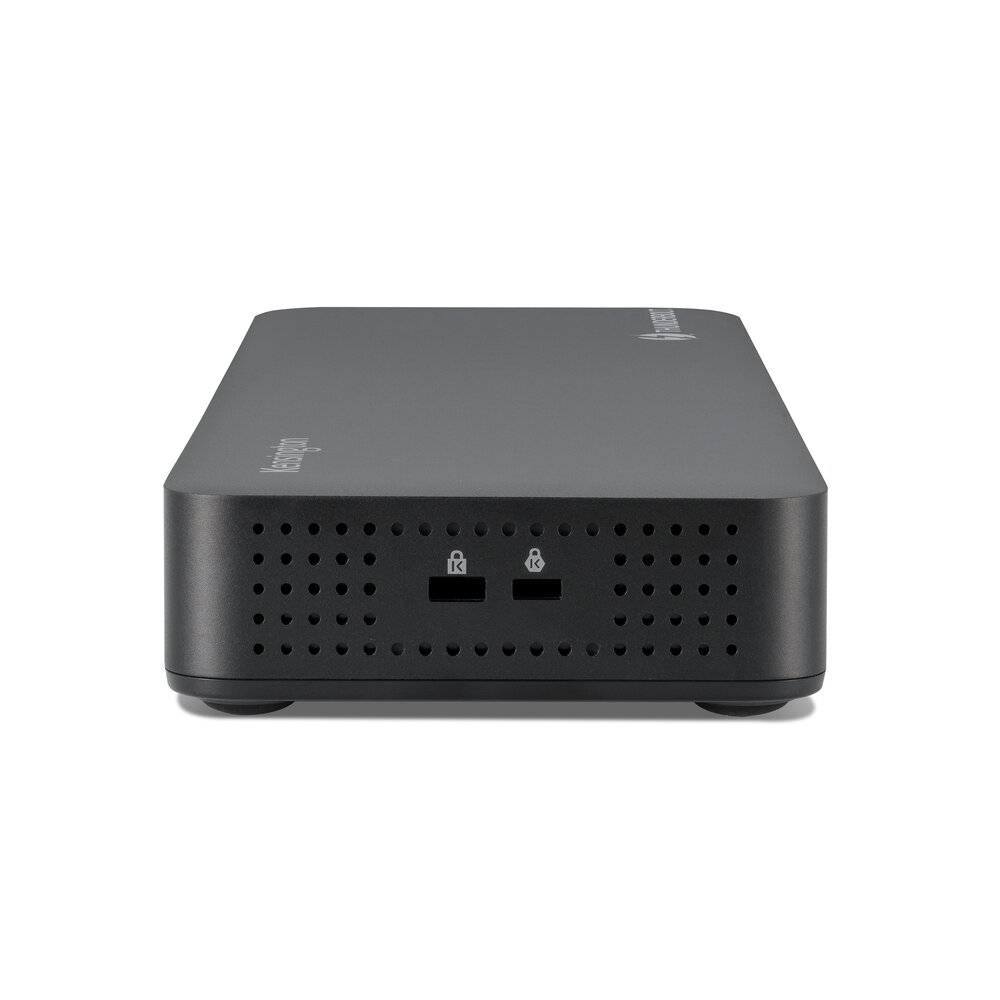

Security Cable Lock Slots
Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | Thunderbolt 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery tot max. | 96 W |
| Aantal HDMI-poorten | 2 |
| Aantal DisplayPorts | 3 |
| Aantal Thunderbolt 4-poorten | 2 |
| Combo koptelefoon/microfoon port | Ja |
| Hoofdtelefoonuitgangen | 1 |
| Type aansluitplug | 3,5 mm |
| Aansluiting voor netstroomadapter | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000,2500 Mbit/s |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), SD |
| Overdrachtssnelheid | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Resolutie (maximum digitaal) | 7680 x 4320 Pixels |
| Aantal displays ondersteund | 4 |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington, Nano |
| Kleur van het product | Zwart |
| Aan/uitschakelaar | Ja |
| LED-indicatoren | Ja |
| Plug and play | Ja |
| Materiaal behuizing | Aluminium, Kunststof |
| Land van herkomst | Vietnam |
| Energie | |
| Type stroombron | DC |
| AC-ingangsspanning | 100 - 240 V |
| Stroom | 2.5 A |
| Spanning | 21 V |
| Output current | 7,1 A |
| Software | |
| Ondersteunt Windows | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Ondersteunt Mac-besturingssysteem | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Andere ondersteundende systemen | ChromeOS |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -18 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 55 procent |
| Gewicht en omvang | |
| Breedte | 2250 mm |
| Diepte | 85 mm |
| Hoogte | 22 mm |
| Gewicht | 600 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 242 mm |
| Diepte verpakking | 108 mm |
| Hoogte verpakking | 100 mm |
| Gewicht verpakking | 1,19 kg |

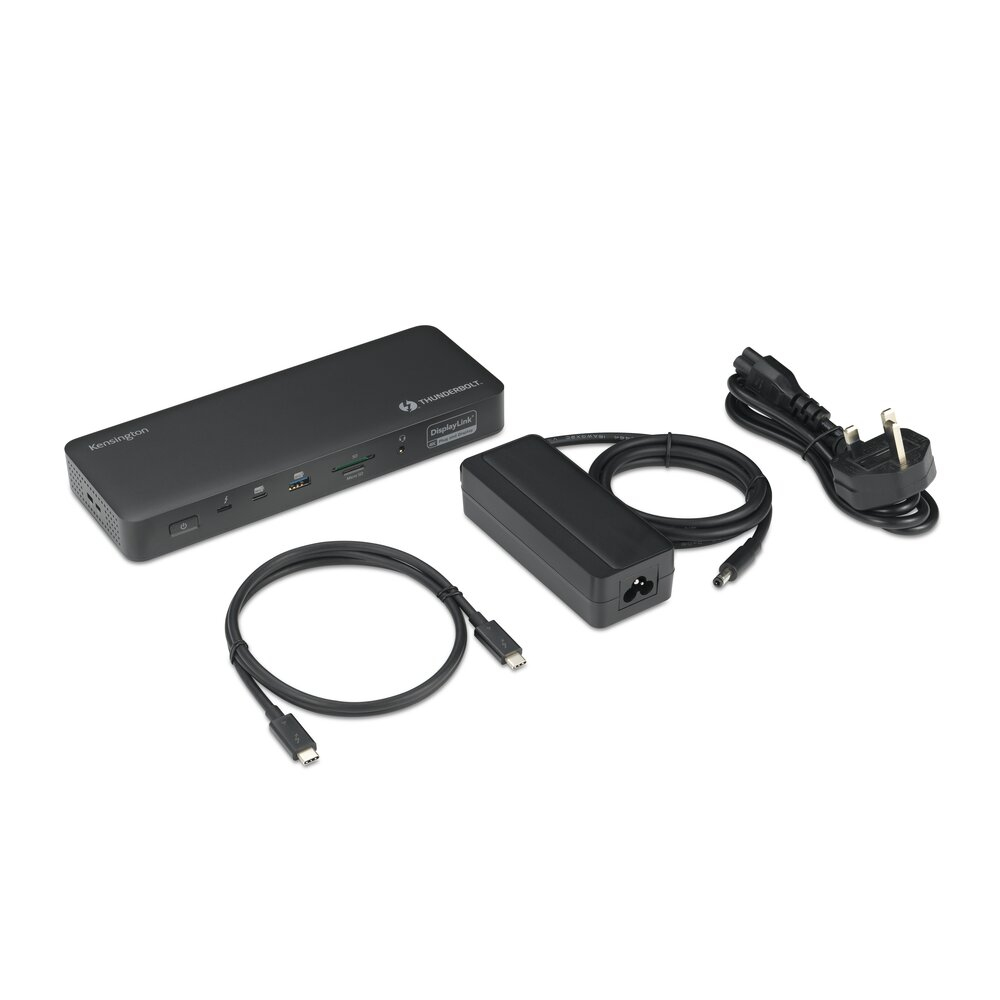

| Inhoud van de verpakking | |
| Meegeleverde kabels | AC, Thunderbolt |
| Inclusief AC-adapter | Ja |
| Snelstartgids | Ja |
| Technische details | |
| Certificaten van naleving | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Logistieke gegevens | |
| Producten per (binnenste) verzendverpakking | 6 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
