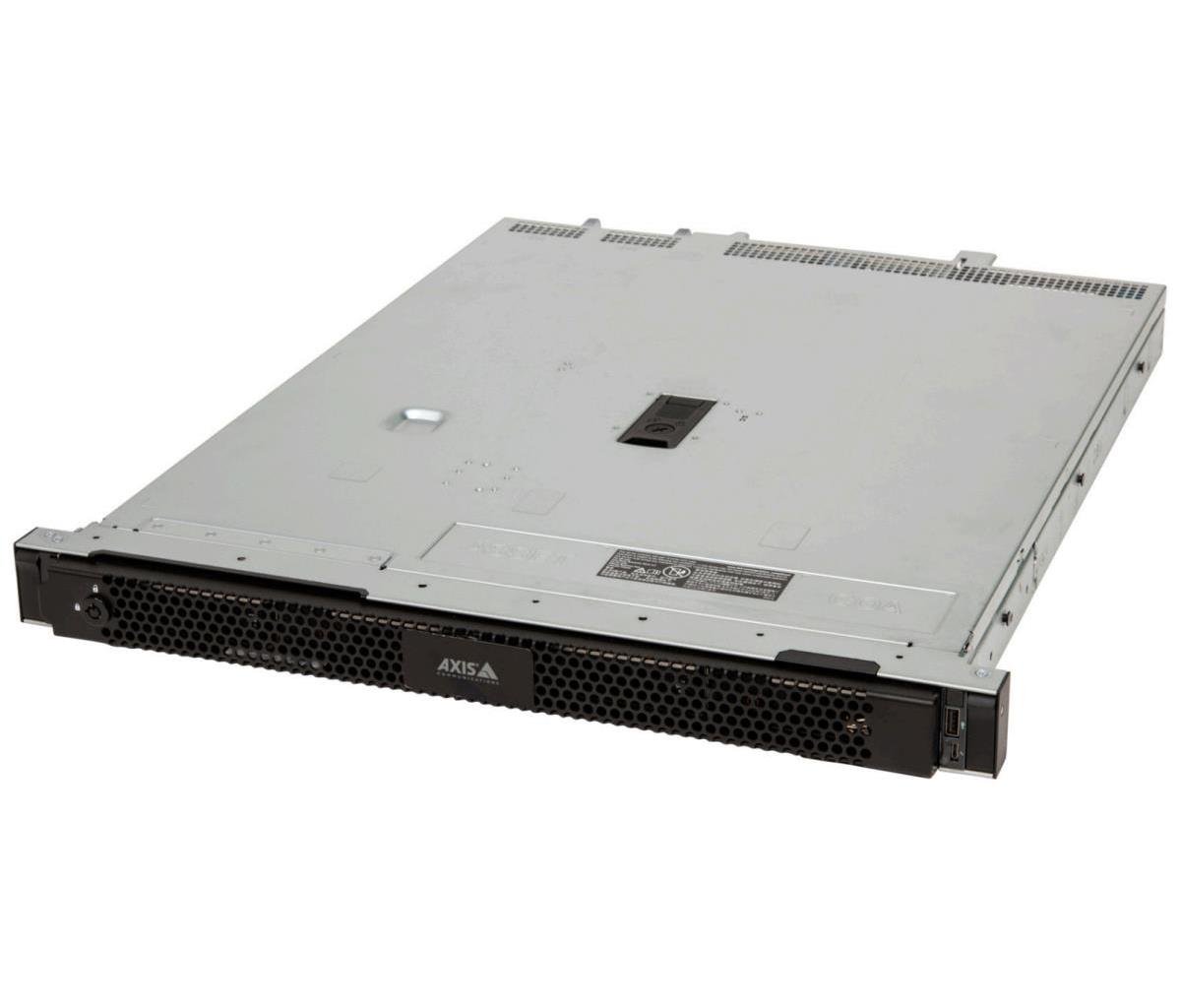

AXIS Camera Station S1216 Rack Recording Server
Featuring powerful components, AXIS S1216 Rack offers high performance and support for powerful applications and features. This secure, scalable recording server includes AXIS Camera Station Pro licenses and several empty hard drive bays for flexible storage configurations. It uses a Trusted Platform Module (FIPS 140-2 level 2 certified) to encrypt both the operating system drive and stored video, comes preloaded with pre-configured software and 8 TB of storage. Plus, all supported products are available in one price list for a one-stop-shop experience. Furthermore, it offers services such as Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty.
| Prestatie | |
| Video capturing speed | 30 fps |
| Aantal kanalen | 96 kanalen |
| Kleur van het product | Zwart |
| Inclusief besturingssysteem | Windows 11 IoT Enterprise |
| USB-aansluiting | Ja |
| Ingang bandbreedte | 256 Mbit/s |
| Rackcapaciteit | 1U |
| Certificering | EN 55035, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9547, KS C 9815, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CNS 15936, IEC 62236-4 |
| Poorten & interfaces | |
| Videoingangkanalen | 32 kanalen |
| VGA (D-Sub) uitgang ports | 1 |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Netwerk | |
| Ethernet interface type | Gigabit Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Harde schijf | |
| Maximum aantal HDD's per behuizing | 4 |
| HDD interface | SATA |
| HDD capaciteit | 8 TB |
| RAID support | Ja |
| Soorten RAID | 0, 1, 10 |
| SSD (solid-state drive) | |
| Aantal ge‹nstalleerde SSD's | 1 |
| SSD capaciteit | 240 GB |
| Processor | |
| Type processor | Ja |
| Geheugen | |
| Intern geheugen | 16000 MB |
| Energie | |
| AC-ingangsspanning | 100-240 V |
| Stroomverbruik (typisch) | 90 W |
| Vermogensverbruik (max) | 120 W |
| AC-ingangsfrequentie | 50/60 Hz |
| Gewicht en omvang | |
| Breedte | 482 mm |
| Diepte | 598,6 mm |
| Hoogte | 42,8 mm |
| Gewicht | 9,2 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 10 - 35 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 8 - 80 procent |
| Temperatuur bij opslag | -40 - 65 øC |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Technische details | |
| Certificaten van naleving | REACH, RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Warranty | |
| Base Warranty | Non Non |
