PowerGo Rack PDU Basic 0U32A220V/380VIEC60309 3m C1330+C1912 Breaker Black
ITCurry #: N6415815 | Article #: EP0G90A2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

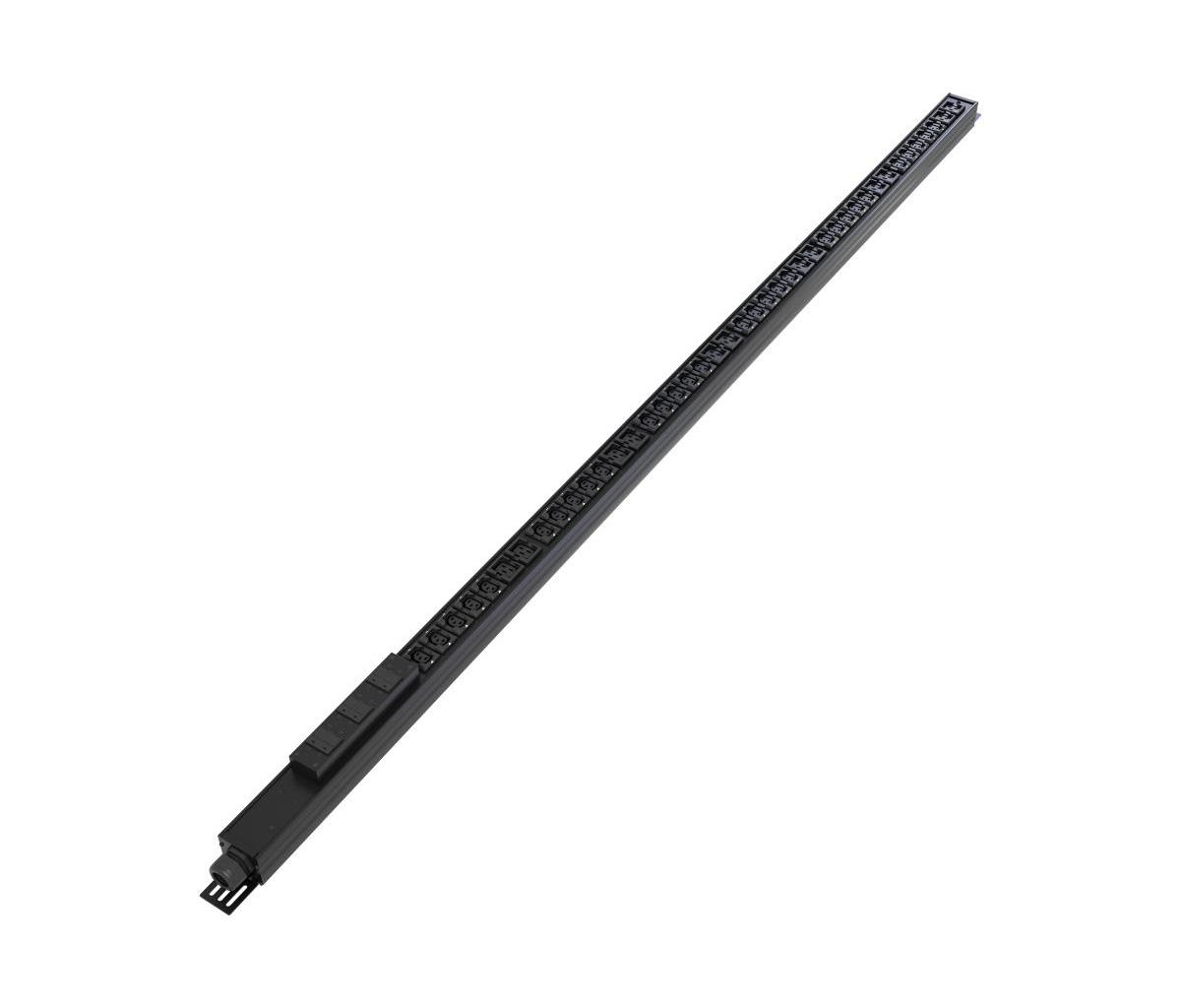

The Vertiv PowerGo EP0G90A2 is a basic rack power distribution unit (rPDU) that delivers reliable power to critical IT equipment within a rack or cabinet. This three-phase unit has a 230/400V WYE input voltage and 32A current capacity that supports up to 22kVA of load capacity with 3P+N+E (IP44) plug form. It also features a total of 42 receptacles, 30 Manual locking IEC C13 and 12 Manual locking IEC C19, making it versatile for diverse device connections. It has a 0U, vertical rackmount configuration, allowing seamless integration into standard racks. It’s equipped with a 3-meter power cable and supports a maximum operating temperature of up to 45°C, adapting to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.
Delivering reliable and efficient power with 22kW load capacity, 230/400V WYE input, and 32A current
Six 16A magnetic breakers with breaker/switch combination ensure safety and protection.
Includes 30 Manual locking IEC C13 and 12 Manual locking IEC C19 outlets, for versatile connectivity
Space-saving 0U, compact, vertical rackmount design that integrates seamlessly into standard racks
All units are 100% tested and backed by a 1-year warranty for worry-free operation
| Design | |
| PDU types | Basis |
| Soort | Eenfasig |
| Rackcapaciteit | 0U |
| Montage | Verticaal |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 30 AC-uitgang(en) |
| Stekker | IEC 60309 |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Kenmerken | |
| Snoerlengte | 3 m |
| Energie | |
| Nominale input voltage | 230 - 400 V |
| Stroom (max.) | 32 A |
| Laad-capaciteit | 22000 VA |
| Aantal fases | 1 |
| Maximaal vermogen | 22000 W |
| Certificaten | |
| Certificering | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55035, ROHS (EMC only),S-Mark |
| Gewicht en omvang | |
| Breedte | 66 mm |
| Diepte | 58 mm |
| Hoogte | 2150 mm |
| Gewicht | 11,7 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | Stroom |
| Logistieke gegevens | |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
