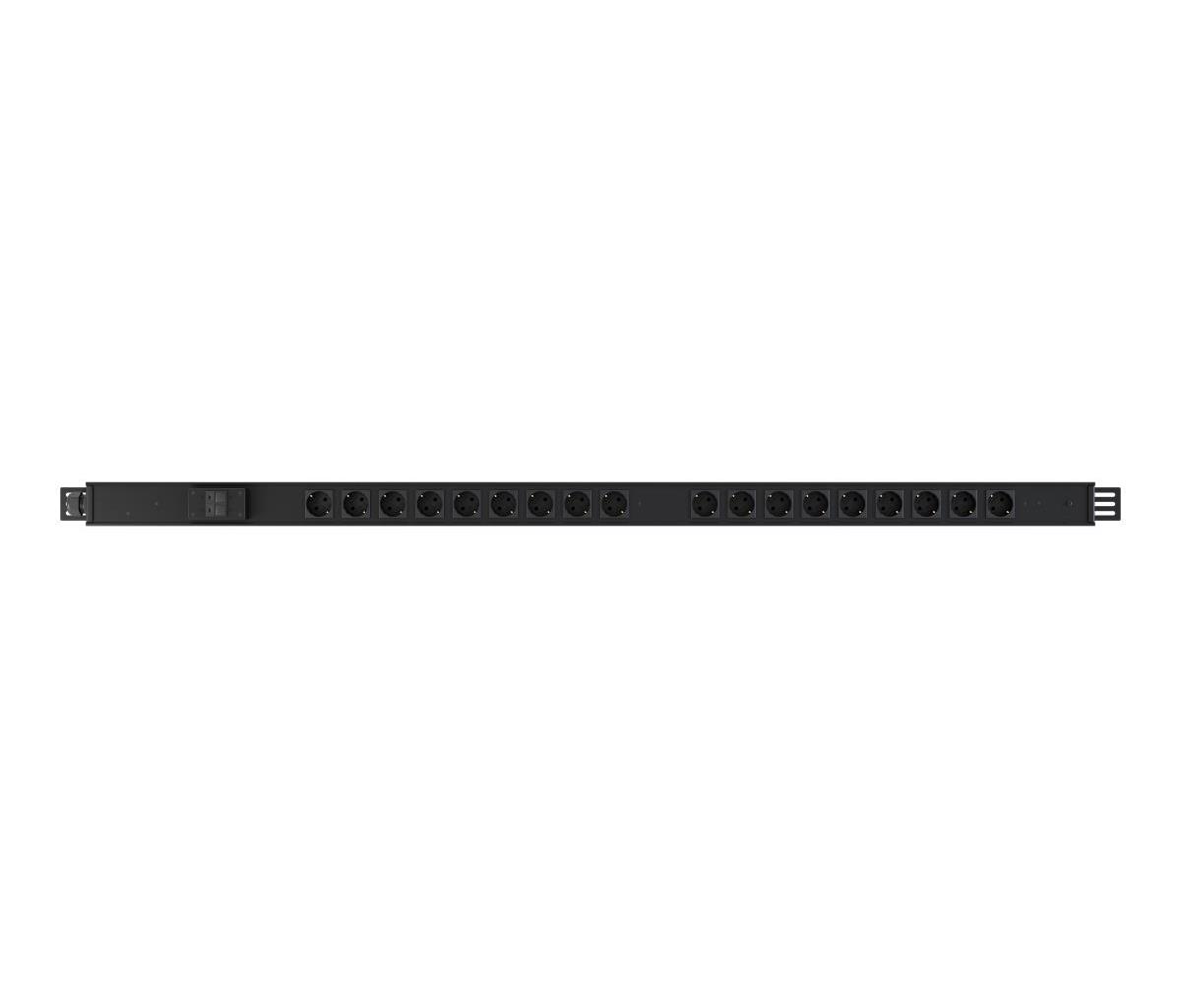

PowerGo Rack PDU Basic 0U 32A 220V IEC60309 3M SCHUKO 18 Breaker Black
ITCurry #: N6415820 | Article #: EP0G90A1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Vertiv PowerGo EP0G90A1 is a basic rack power distribution unit (rPDU) that delivers reliable power to critical IT equipment within a rack or cabinet. This single-phase unit has a 230V input voltage and 32A current capacity that supports up to 7.3kVA of load capacity with 1P+N+E (IP44) plug form. It also features 18 German Schuko outlets making it versatile for diverse device connections. It has a 0U, vertical rackmount configuration, allowing seamless integration into standard racks. It’s equipped with a 3-meter power cable and supports a maximum operating temperature of up to 45°C, adapting to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.
Delivering reliable and efficient power with 7.3kW load capacity, 230V input, and 32A current
Two 16A magnetic breakers with breaker/switch combination ensure safety and protection.
Includes 18 German Schuko outlets and 1P+N+E (IP44) inlet, for versatile connectivity
Space-saving 0U, compact, vertical rackmount design that integrates seamlessly into standard racks
All units are 100% tested and backed by a 1-year warranty for worry-free operation
| Design | |
| PDU types | Basis |
| Soort | Eenfasig |
| Rackcapaciteit | 0U |
| Montage | Verticaal |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 18 AC-uitgang(en) |
| Stekker | IEC 60309 |
| Stopcontacttypes | Type F |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Kenmerken | |
| Snoerlengte | 3 m |
| Energie | |
| Nominale input voltage | 230 V |
| Stroom (max.) | 32 A |
| Laad-capaciteit | 7300 VA |
| Aantal fases | 1 |
| Maximaal vermogen | 7300 W |
| Certificaten | |
| Certificering | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55035, ROHS (EMC only),S-Mark |
| Gewicht en omvang | |
| Breedte | 66 mm |
| Diepte | 58 mm |
| Hoogte | 1500 mm |
| Gewicht | 6,3 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | Stroom |
| Logistieke gegevens | |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
