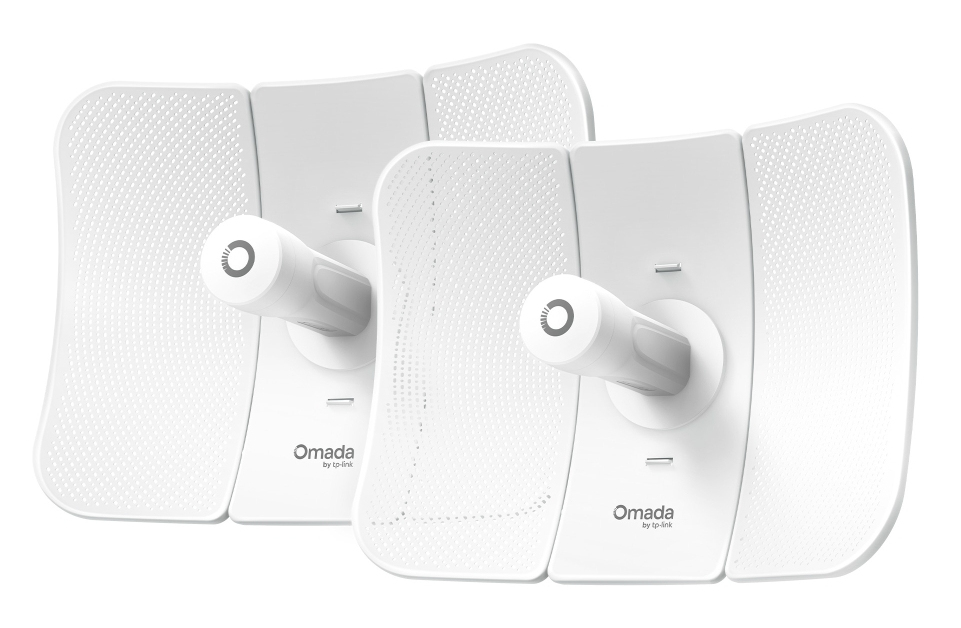

Wireless Beam Bridge 5 Ur Kit Omada 5GHz 867mbps Ultra-range Indoor/outdoor
ITCurry #: P6044265 | Article #: BEAM BRIDGE 5 UR KIT-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
| Data-uitwisseling | |
| Maximaal bereik | 15000 m |
| Antenne | |
| Antenne-ontwerp | Extern |
| Draadloos LAN | |
| Wifi | Ja |
| Wifi-band | Single-band (5 GHz) |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| Netwerk | |
| Ethernet LAN | Ja |
| Interfacetype Ethernet LAN | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | SNMP, SSH |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Kenmerken | |
| Type product | Netwerkbrug |
| Montagewijze | Paal |
| Kleur van het product | Wit |
| LED-indicatoren | Ja |
| Reset button | Ja |
| Internationale veiligheidscode (IP) | IP65 |
| Netwerktijdprotocol (NTP) klant | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE) |
| Vermogensverbruik (max) | 15,8 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 70 øC |
| Bedrijfstemperatuur, bereik | -40 - 158 øF |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Certificaten | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), RoHS |
| Certificering | CE, FCC, RoHS |
| Gewicht en omvang | |
| Breedte | 366 mm |
| Diepte | 280 mm |
| Hoogte | 207 mm |
| Gewicht | 1,1 kg |
| Inhoud van de verpakking | |
| Verpakkingsinhoud | Beam Bridge 5 UR KIT Installation Guide Mounting Kit Passive PoE Adapter Power Cord |
| Verpakking | |
| Type verpakking | Doos |
| Warranty | |
| Base Warranty | Non Non |
