Quad M.2 Pci-e SSD Adapter Card With Bifurcation Pci-e 4.0
ITCurry #: 7564A614 | Article #: QUAD-M2-PCIE-CARD-B-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

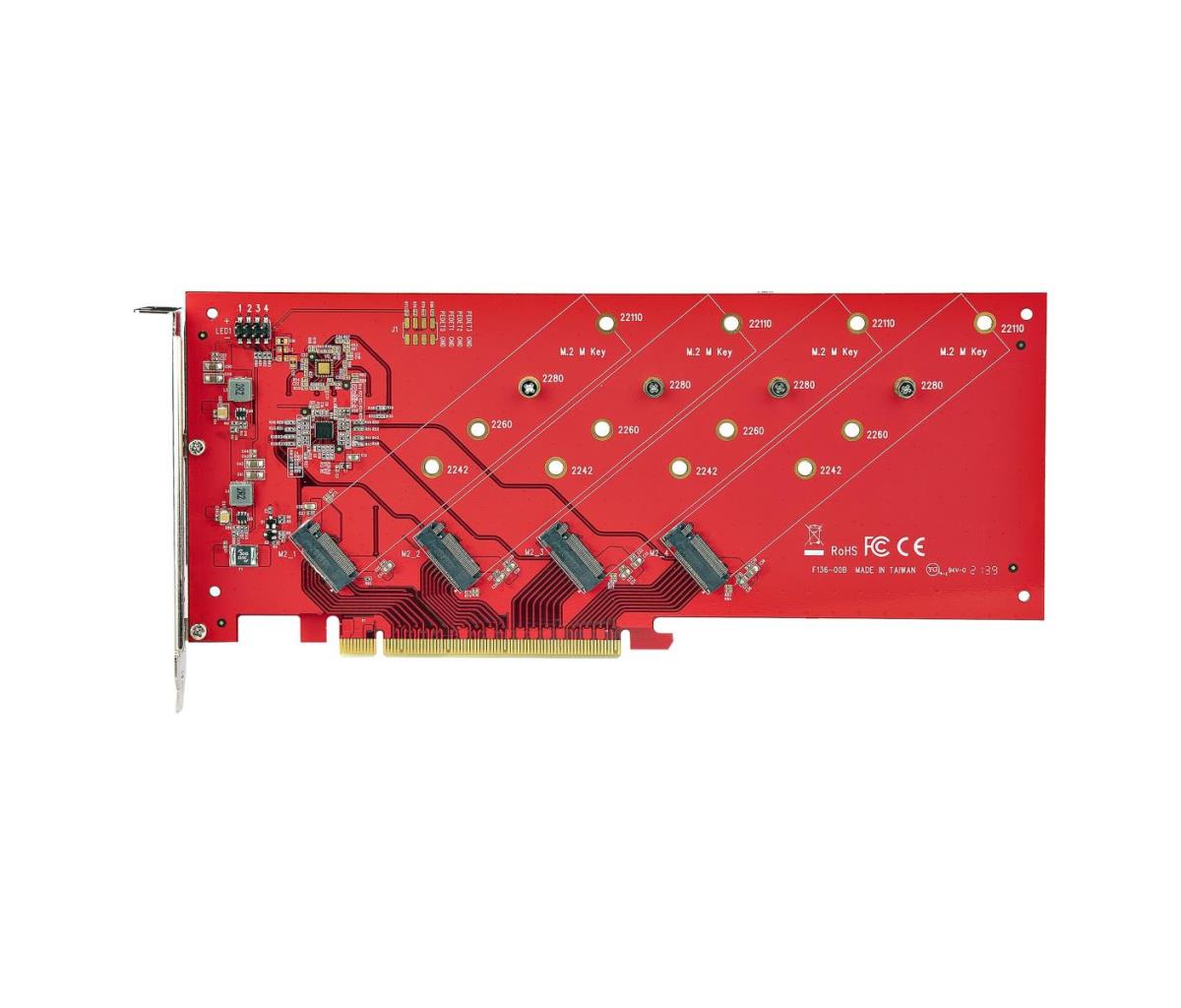

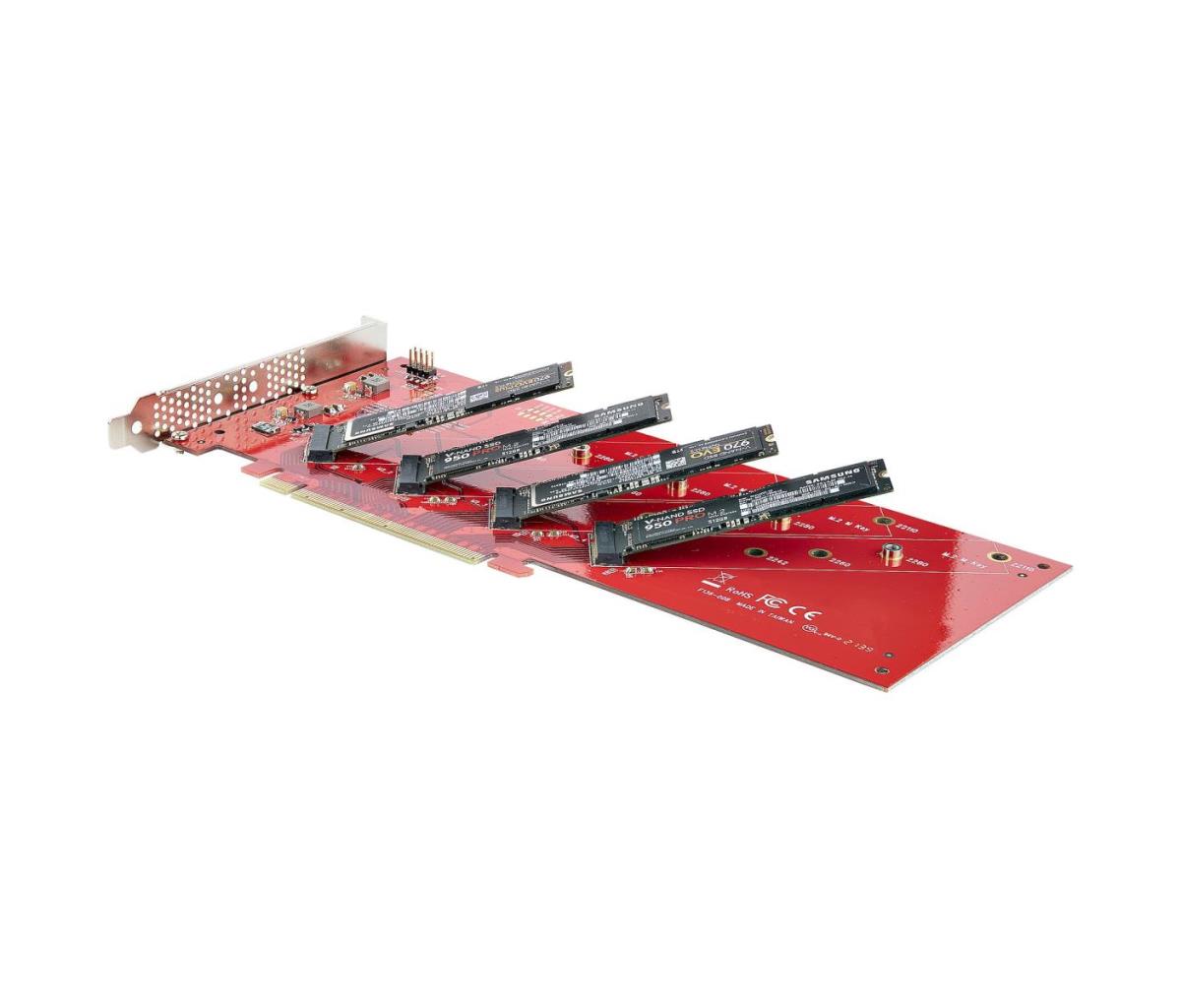

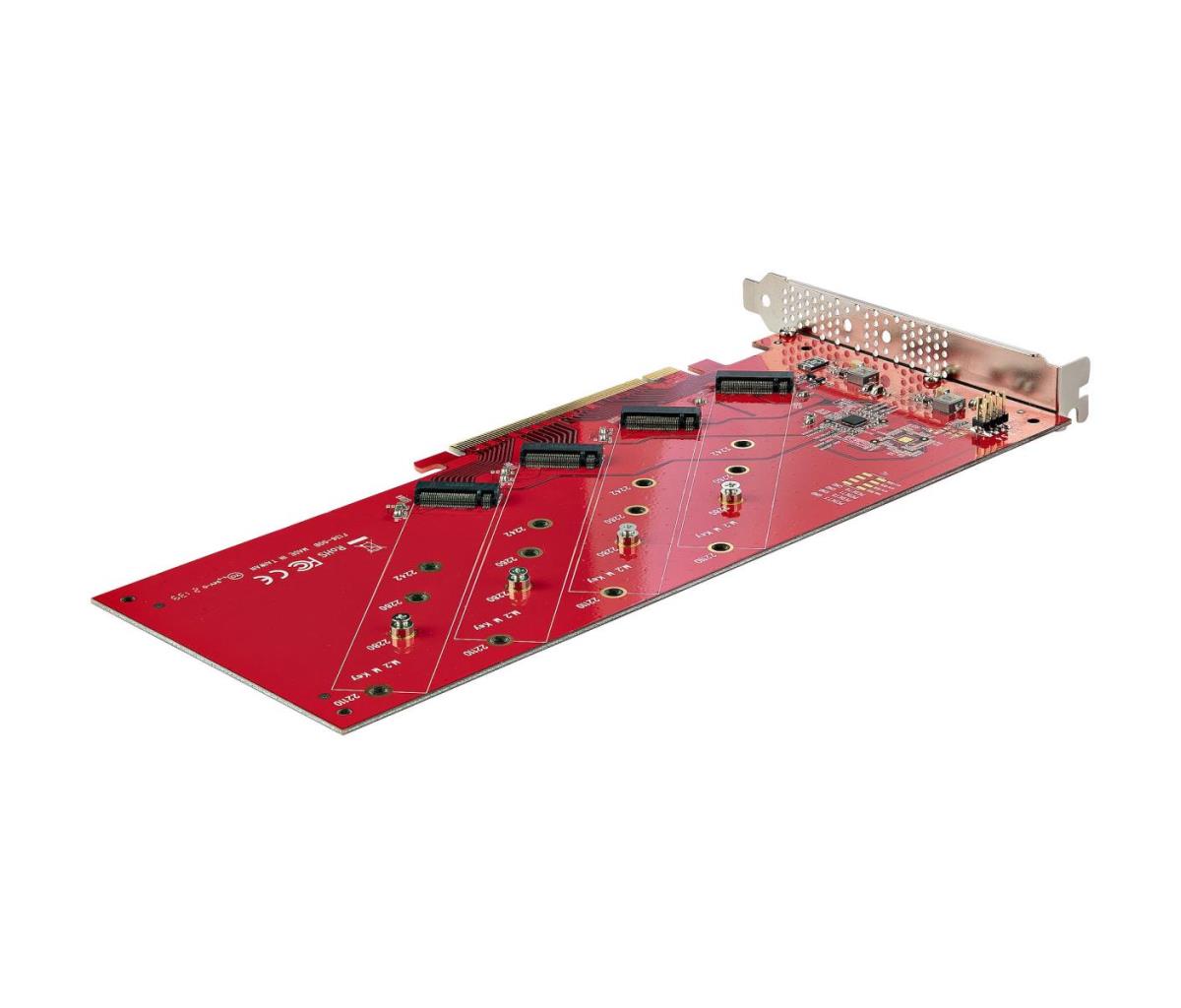

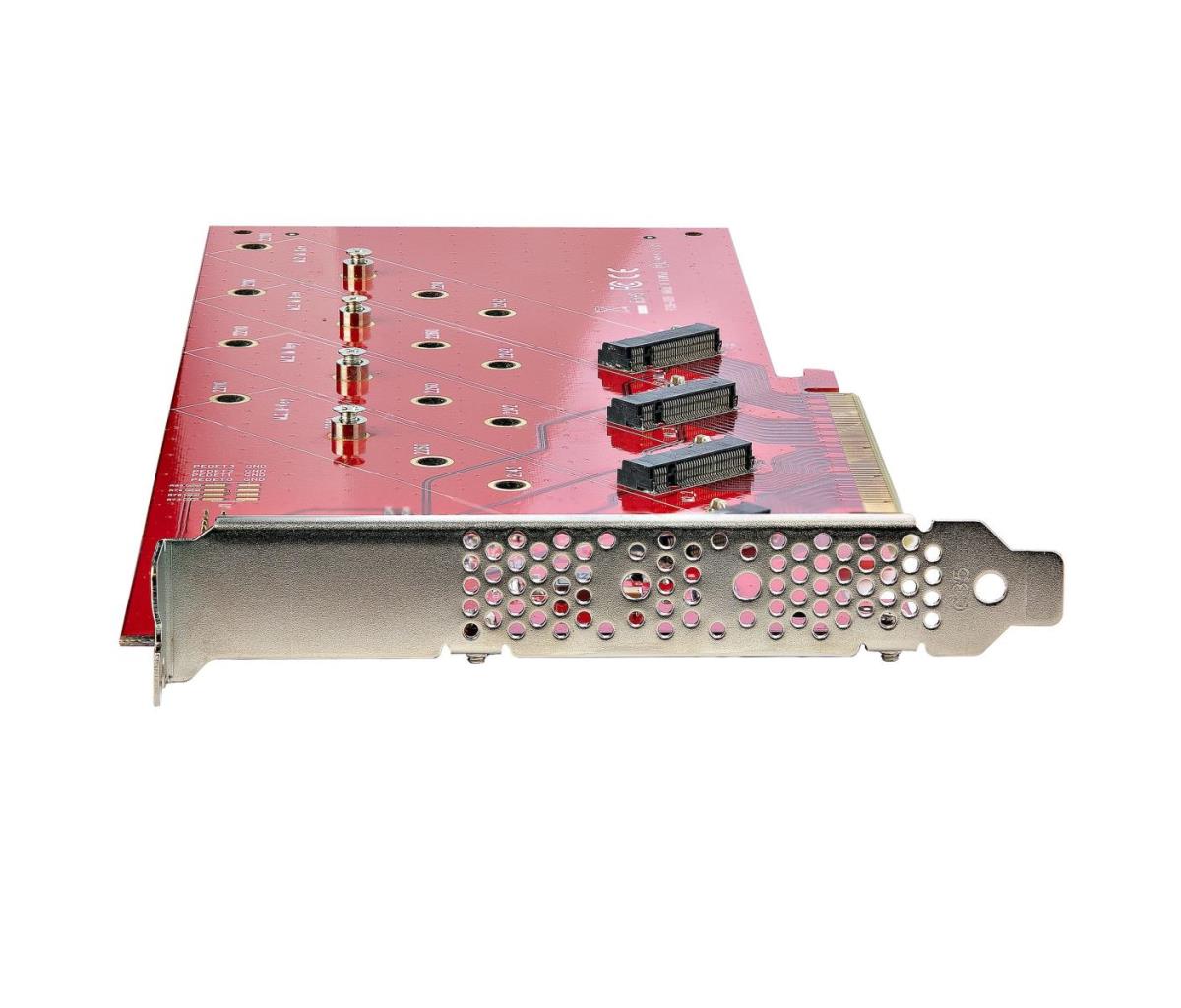

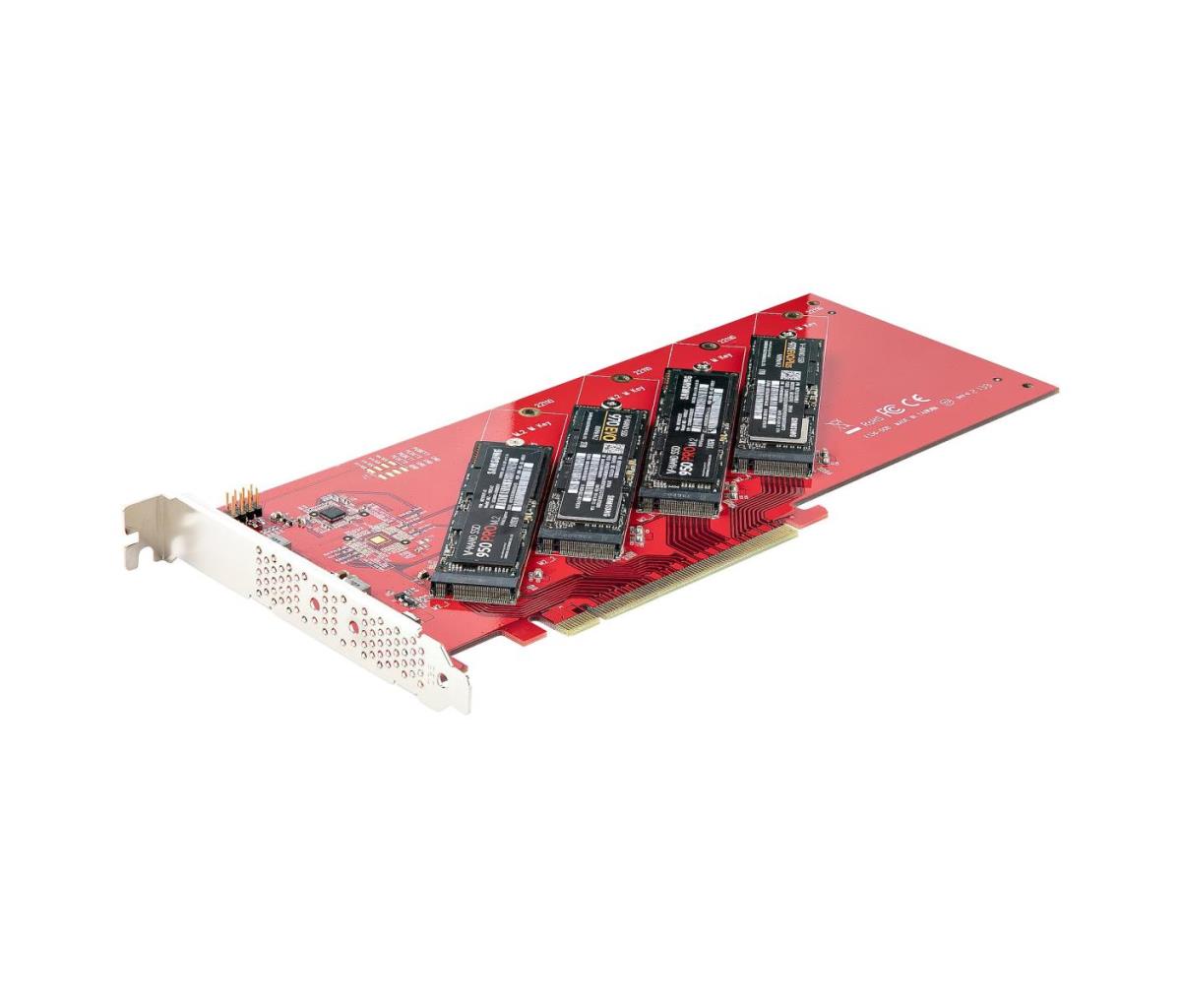

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | BifurcationThis Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.Boost System PerformanceTake full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.Access Four M.2 PCIe SSDs SimultaneouslyNo on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.Wide CompatibilityThe PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.Vented BracketsThe pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistanceThe StarTech.com Advantage
| Poorten & interfaces | |
| Hostinterface | PCIe |
| Output interface | M.2 |
| Uitbreidingskaartstandaard | PCIe 4.0 |
| Aantal M.2 (M) slots | 4 |
| Design | |
| Intern | Ja |
| Kleur van het product | Rood |
| LED-indicatoren | Ja |
| Mean time between failures (MTBF) | 4353192 uur |
| Kenmerken | |
| Data transfer snelheid (max) | 7,8 Gbit/s |
| Plug and play | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 80 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 90 procent |
| Gewicht en omvang | |
| Breedte | 290 mm |
| Diepte | 170 mm |
| Hoogte | 30 mm |
| Gewicht | 150 g |
| Verpakking | |
| Inclusief schroeven | Ja |
| Snelle installatiehandleiding | Ja |
| Breedte verpakking | 290 mm |
| Diepte verpakking | 120 mm |
| Hoogte verpakking | 30 mm |
| Gewicht verpakking | 150 g |
| Logistieke gegevens | |
| Hoeveelheid per (buitenste) hoofdverpakking | 30 stuk(s) |
| (Buitenste) hoofdverpakking breedte | 380 mm |
| (Buitenste) hoofdverpakking lengte | 500 mm |
| (Buitenste) hoofdverpakking hoogte | 310 mm |
| Warranty | |
| Base Warranty | Non Non |
