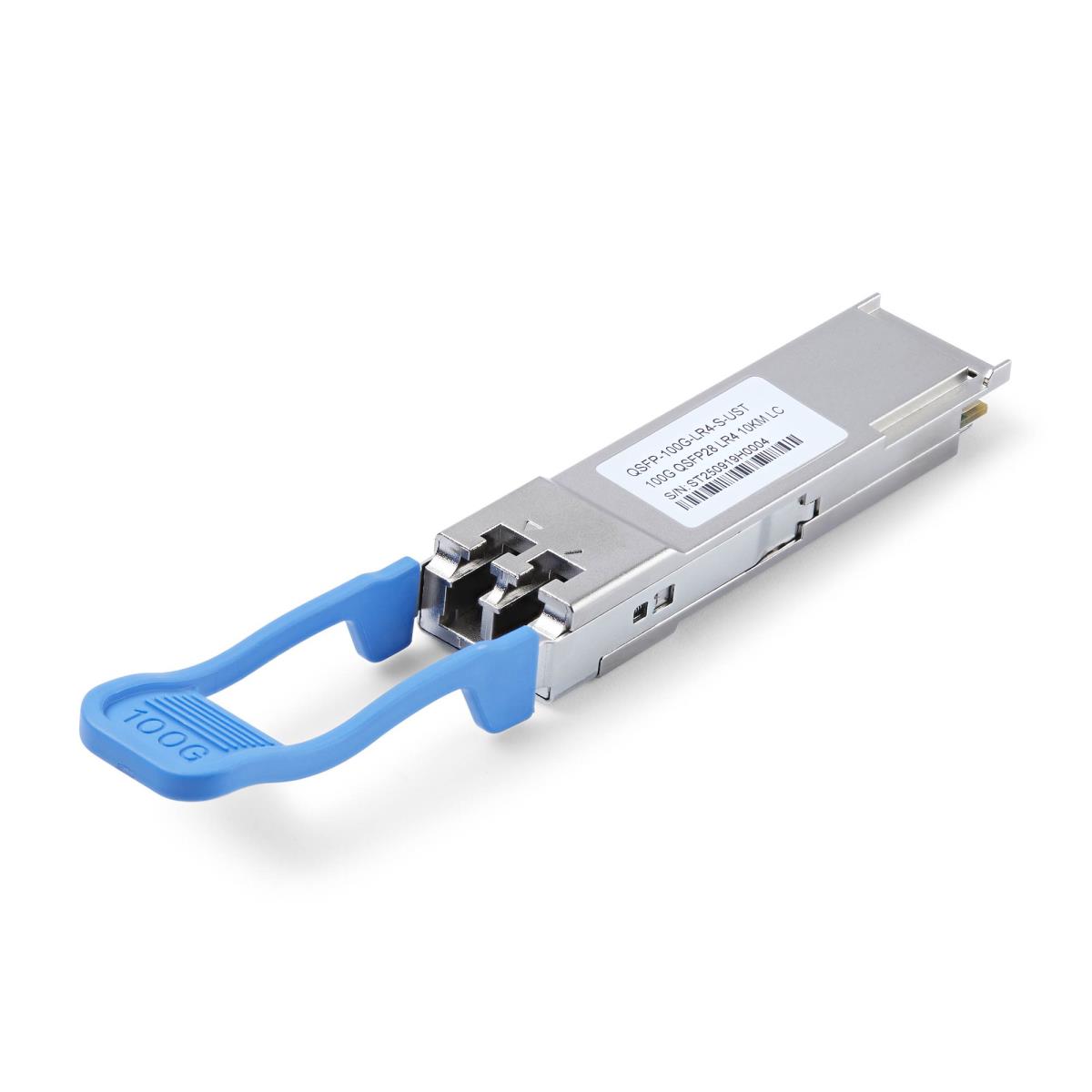

Msa Uncoded Qsfp Module, 100gbps Single Mode Fiber (smf), 10km [6.2mi], Lc Transceiver, 1310nm
ITCurry #: 7564C745 | Article #: QSFP-100G-LR4-S-UST-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Add reliable and cost-effective network connectivity over fiber with this QSFP module
Maintain Reliable 100G Connectivity in Commercial Environments
Deploy long-reach 100G links with confidence using an uncoded QSFP transceiver designed for stable operation within a commercial temperature range (0°C to 70°C). Operating over single-mode fiber at 1310nm, it supports distances up to 10km (6.2mi) and delivers consistent performance across data centers, telecom rooms, and enterprise edge deployments..
Reduce Vendor Lock-In with Broad Interoperability
Ensure seamless integration across multi-vendor networks with an MSA-compliant, vendor-agnostic QSFP module that works with switches and routers supporting uncoded optics. Each unit is individually tested and validated prior to shipment, helping minimize deployment risk and ensure dependable operation within commercial temperature conditions.
Deploy with Confidence in Enterprise and Edge Networks
Ideal for data centers, remote cabinets, and enterprise edge deployments, this QSFP transceiver enables robust long-reach fiber connectivity while maintaining flexibility across evolving network platforms, supporting scalable and reliable 100G infrastructure.
| Prestatie | |
| SFP transceiver type | Vezel-optiek |
| Maximale overdrachtssnelheid van gegevens | 100000 Mbit/s |
| Soort aansluiting | QSFP |
| Single-mode glasvezelkabel (SMF) ondersteund | Ja |
| Vezel-optische connector | LC |
| SFP-zendernorm | LR4 |
| Maximaal bereik | 10000 m |
| Golflengte | 1310 nm |
| Netwerkstandaard | IEEE 802.3ba |
| Fiber ethernet cabling technologie | 100GBASE |
| Duplex systeem | Volledig |
| Digital Diagnostics Monitoring (DDM) | Ja |
| Kenmerken | |
| Kleur van het product | Zilver |
| Mean time between failures (MTBF) | 3083849 uur |
| Merkcompatibiliteit | MSA Compliant |
| Energie | |
| Stroomverbruik (typisch) | 4,5 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Gewicht en omvang | |
| Breedte | 18,4 mm |
| Diepte | 117,8 mm |
| Hoogte | 12,6 mm |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Verpakking | |
| Gebruiksaanwijzing | Ja |
| Breedte verpakking | 180 mm |
| Diepte verpakking | 127 mm |
| Hoogte verpakking | 48 mm |
| Warranty | |
| Base Warranty | Non Non |
