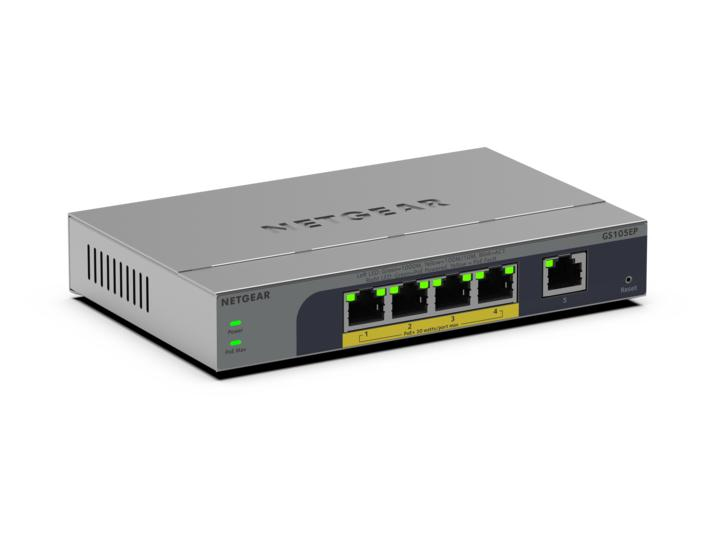

Unmanaged Easy Smart Switch PoE+ GS105EPP 5-Port GbE (63W)
ITCurry #: 20325623 | Article #: GS105EP-100EUS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
EASY POE CONTROLS
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET
5 ports provide gigabit Ethernet connectivity to your devices
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
| Beheerfuncties | |
| Switch type | Unmanaged |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 5 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1p, IEEE 802.3az |
| Port mirroring | Ja |
| Full duplex | Ja |
| Datastroombeheer | Ja |
| Rate limiting | Ja |
| Virtuele LAN-functies | Port-based VLAN |
| Data-uitwisseling | |
| MAC-adrestabel | 2000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9216 |
| Packet buffergeheugen | 1,5 MB |
| Beveiliging | |
| DHCP-functies | DHCP client |
| IGMP snooping | Ja |
| Wachtwoordbeveiliging | Ja |
| Algoritmen wachtrijplanning | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Aantal gefilterde multicast-groepen | 128 |
| Design | |
| Stapelbaar | Nee |
| Kleur van het product | Grijs |
| Materiaal behuizing | Metaal |
| LED-indicatoren | Activiteit, Link, Power over Ethernet (PoE), Stroom, Snelheid, Systeem |
| Prestatie | |
| Geluidsniveau | 0 dB |
| Mean time between failures (MTBF) | 1164104 uur |
| Energie | |
| Stroombron | AC/DC |
| Stroomverbruik (typisch) | 4 W |
| Vermogensverbruik (max) | 74,7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 4 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 63 W |
| Overige specificaties | |
| Connectiviteitstechnologie | Bedraad |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Gewicht en omvang | |
| Breedte | 158 mm |
| Diepte | 101 mm |
| Hoogte | 27 mm |
| Gewicht | 390 g |
| Inhoud van de verpakking | |
| Snelstartgids | Ja |
| Gebruikershandleiding | Ja |
| Certificaten | |
| Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Warranty | |
| Base Warranty | Non Non |
