Large Format Display - ProLite TN8605A-B1AG - 86in Touch - 3840x2160 (UHD) - Black
ITCurry #: 89303591 | Article #: TN8605A-B1AG-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

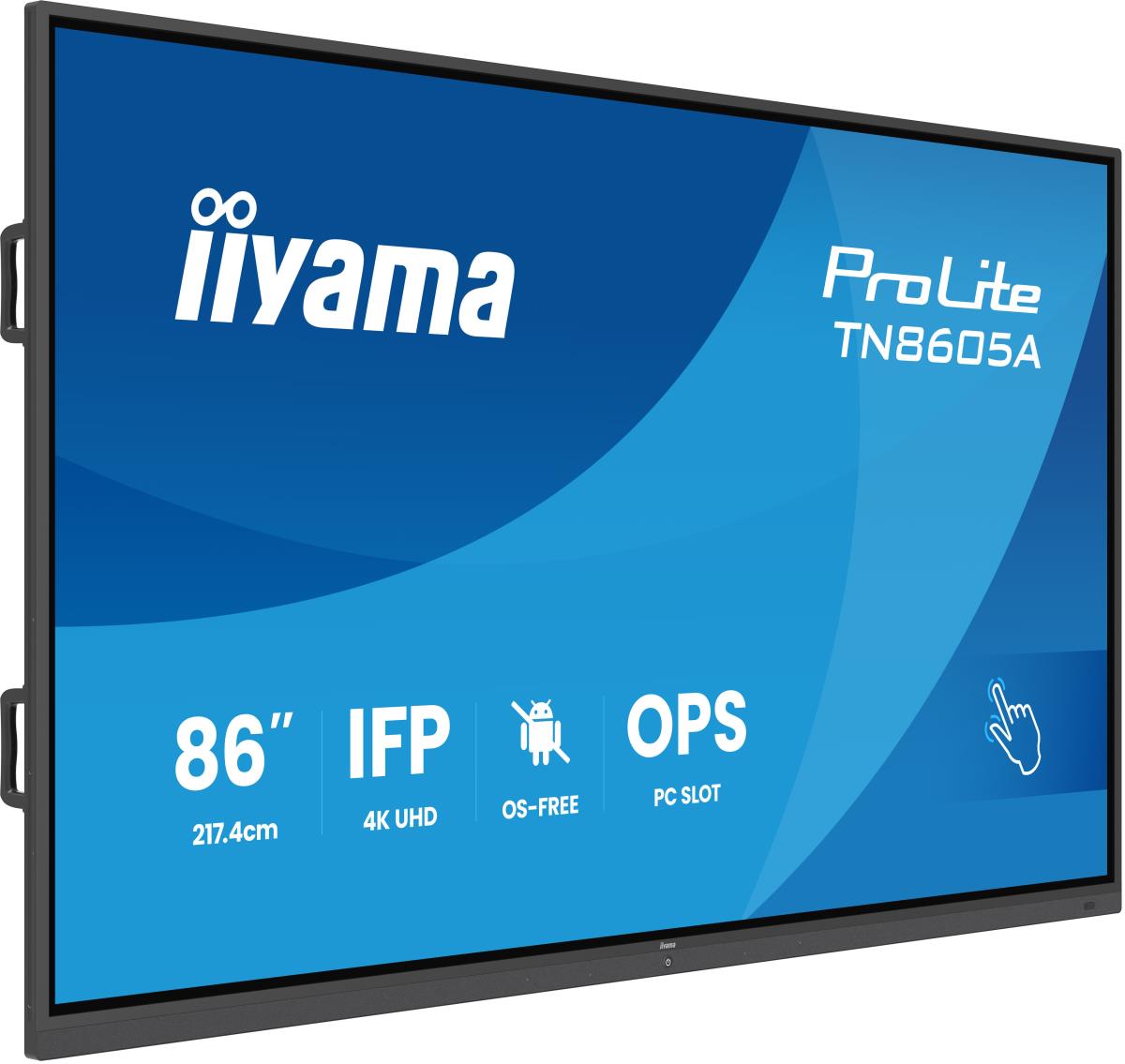

The ProLite TN8605A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN8605A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
| Beeldscherm | |
| Soort paneel | IPS |
| Beeldschermdiagonaal | 2,17 m (85.6") |
| Resolutie | 3840 x 2160 Pixels |
| Helderheid | 500 cd/mý |
| Touchscreen | Ja |
| Oorspronkelijke beeldverhouding | 16:9 |
| Responstijd | 8 ms |
| Typische contrastverhouding | 1200:1 |
| Kijkhoek, horizontaal | 178ø |
| Kijkhoek, verticaal | 178ø |
| Pixel pitch | 0,4935 x 0,4935 mm |
| Schermdiameter in centimeters | 217,4 cm |
| Frequentiebereik horizontaal | 30 - 135 kHz |
| Poorten & interfaces | |
| Aantal DisplayPorts | 1 |
| Aantal USB-aansluitingen | 1 |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery tot max. | 65 W |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| RS-232C | Ja |
| OPS-modulesleuf | Ja |
| Audio Return Channel (ARC) | Ja |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Aantal ingebouwde luidsprekers | 2 |
| Design | |
| Paneelmontage-interface | 800 x 600 mm |
| Antireflectiescherm | Ja |
| Prestatie | |
| Picture-in-Picture | Ja |
| Energie | |
| Stroomverbruik (typisch) | 225 W |
| Stroomverbruik (in standby) | 0,5 W |
| Stroomverbruik (indien uit) | 0,3 W |
| Energie-effici‰ntieklasse (SDR) | G |
| Gewicht en omvang | |
| Schermbreedte | 1955,9 mm |
| Display diepte | 120,6 mm |
| Display hoogte | 1174,3 mm |
| Display gewicht | 66,4 kg |
| Breedte | 1955,9 mm |
| Diepte | 120,6 mm |
| Hoogte | 1174,3 mm |
| Gewicht | 66,4 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Netwerk | |
| Ethernet LAN | Ja |
| Technische details | |
| Audio in (mini-jack) | Ja |
| OPS-slot | 1 |
| Gebruikersknoppen | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
| Duurzaamheidscertificaten | ErP |
| Certificaten van naleving | CB, CE, EAC, REACH, RoHS, TšV mark, UKCA, WEEE |
| Overige specificaties | |
| Helderheid | 450 cd/mý |
| Compatibele besturingssystemen | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Warranty | |
| Base Warranty | Non Non |
