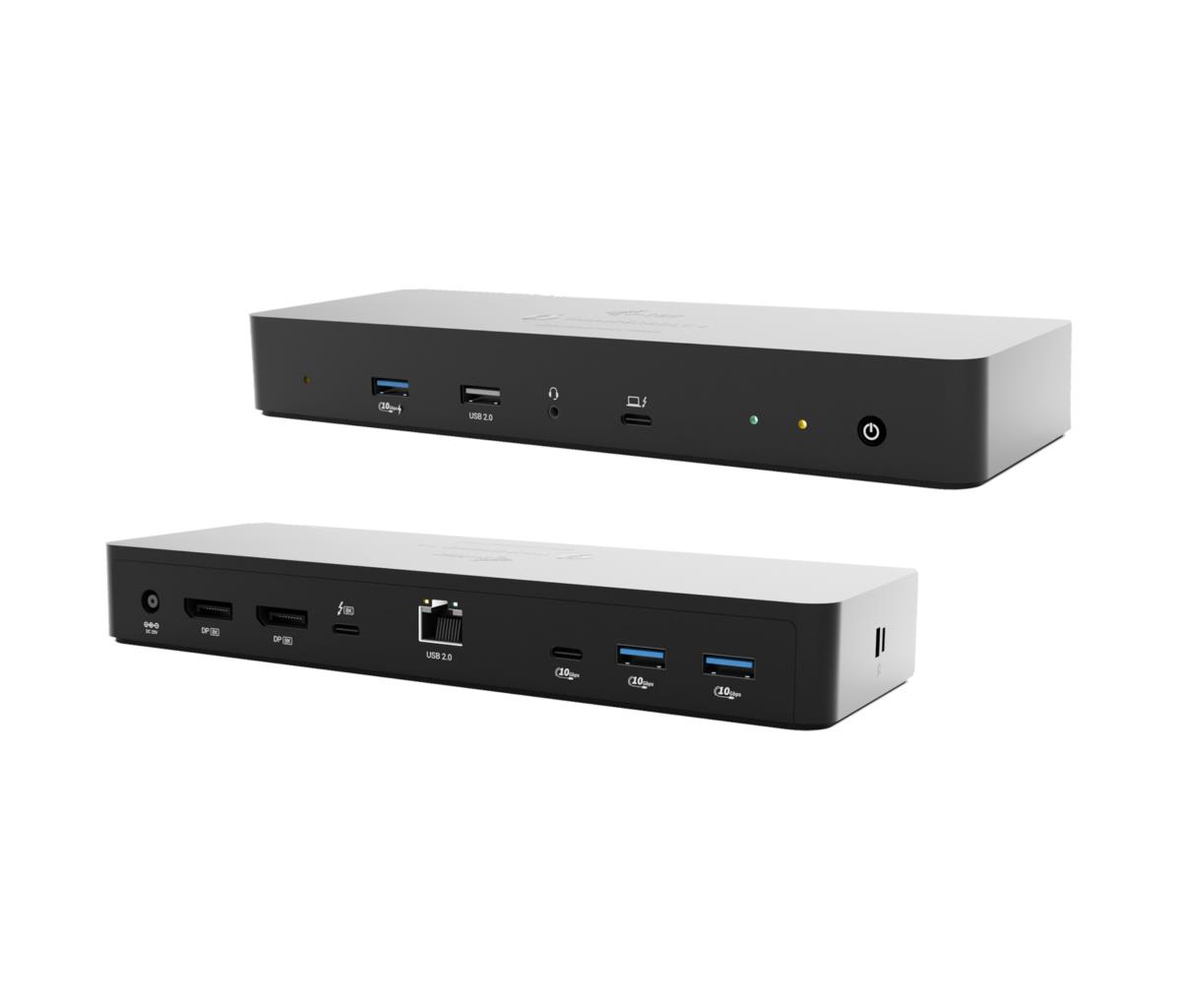

Intelligent Docking Station - Thunderbolt 4 Dual DisplayPort - Power Delivery 90w Uk
ITCurry #: P3642634 | Article #: TB4INTGDUAL4KDOCPDUK-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere *. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required. NOTE: The software is available for Windows computers only.
A next-generation, high-performance Thunderbolt” 4 docking station that delivers output to up to two external 4K monitors or a single 8K display. Compatible with virtually all notebooks equipped with USB-C**, USB4, or Thunderbolt” 3/4/5 ports, and supporting all major operating systems.
With multiple USB ports (including USB 3.2 Gen 2 with speeds up to 10 Gbps), a Thunderbolt” 4 port offering either 8K video or ultra-fast 40 Gbps data transfer, and a reliable, high-speed LAN connection, this docking station is the ideal solution for demanding professionals. Naturally, it also supports up to 90W power delivery to keep your notebook or tablet charged.
- Connect a single 8K display or up to two external monitors in resolutions up to 4K**
- Power delivery up to 90 W
- 2× DisplayPort and 1× Thunderbolt” 4 port available
- 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 fast charging), 2× USB-A (10 Gbps), 1× USB-A (2.0), and 1× USB-C (Gen 2, 10 Gbps)
- Intelligent Gigabit Ethernet (RJ-45) provides reliable, high-speed connectivity with 10/100/1000 Mbps support and seamless remote management functionality
- Combined audio/microphone jack
- Kensington lock slot provides anti-theft protection, ideal for shared office spaces or public areas
- Power switch on the docking station allows maximum energy savings
- Supports Windows 10/11, macOS, iPadOS, Android, ChromeOS, and Linux (latest versions)
* Because of the way Thunderbolt” technology works, i-tec DockMate can manage the docking station itself (such as remote on/off, scheduled power saving, or firmware updates), but it cannot directly control individual ports like USB, LAN, audio or display outputs.
** Only one external monitor is supported when connected via a USB-C port.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | Thunderbolt 4 |
| Aantal USB 2.0-poorten | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 3 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery tot max. | 90 W |
| Aantal DisplayPorts | 2 |
| DisplayPort versie | 1.4 |
| Aantal Thunderbolt 4-poorten | 2 |
| Combo koptelefoon/microfoon port | Ja |
| Type aansluitplug | 3,5 mm |
| Aansluiting voor netstroomadapter | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Overdrachtssnelheid | 40 Gbit/s |
| Resolutie (maximum digitaal) | 7680 x 4320 Pixels |
| Aantal displays ondersteund | 2 |
| Maximale refresh snelheid | 360 Hz |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Kleur van het product | Zwart |
| Aan/uitschakelaar | Ja |
| LED-indicatoren | Ja |
| Energie | |
| Netvoeding | 135 W |
| Spanning | 20 V |
| Output current | 6,75 A |
| Compatibele soorten stopcontacten | UK |
| Lengte stroomkabel | 1,5 m |
| Thunderbolt 4-kabellengte | 1 m |
| Software | |
| Ondersteunt Windows | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Ondersteunt Linux | Ja |
| Andere ondersteundende systemen | Android, ChromeOS, iPadOS |
| Gewicht en omvang | |
| Breedte | 220 mm |
| Diepte | 75 mm |
| Hoogte | 30 mm |
| Gewicht | 295 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | DC, Stroom, Thunderbolt |
| Inclusief AC-adapter | Ja |
| Gebruikershandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
