Docking Station - USB-c - Intelligent Triple Display - Power Delivery 100w
ITCurry #: P3642588 | Article #: C31INTGTRI4KDOCPD-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere — even down to individual port-level management. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required.

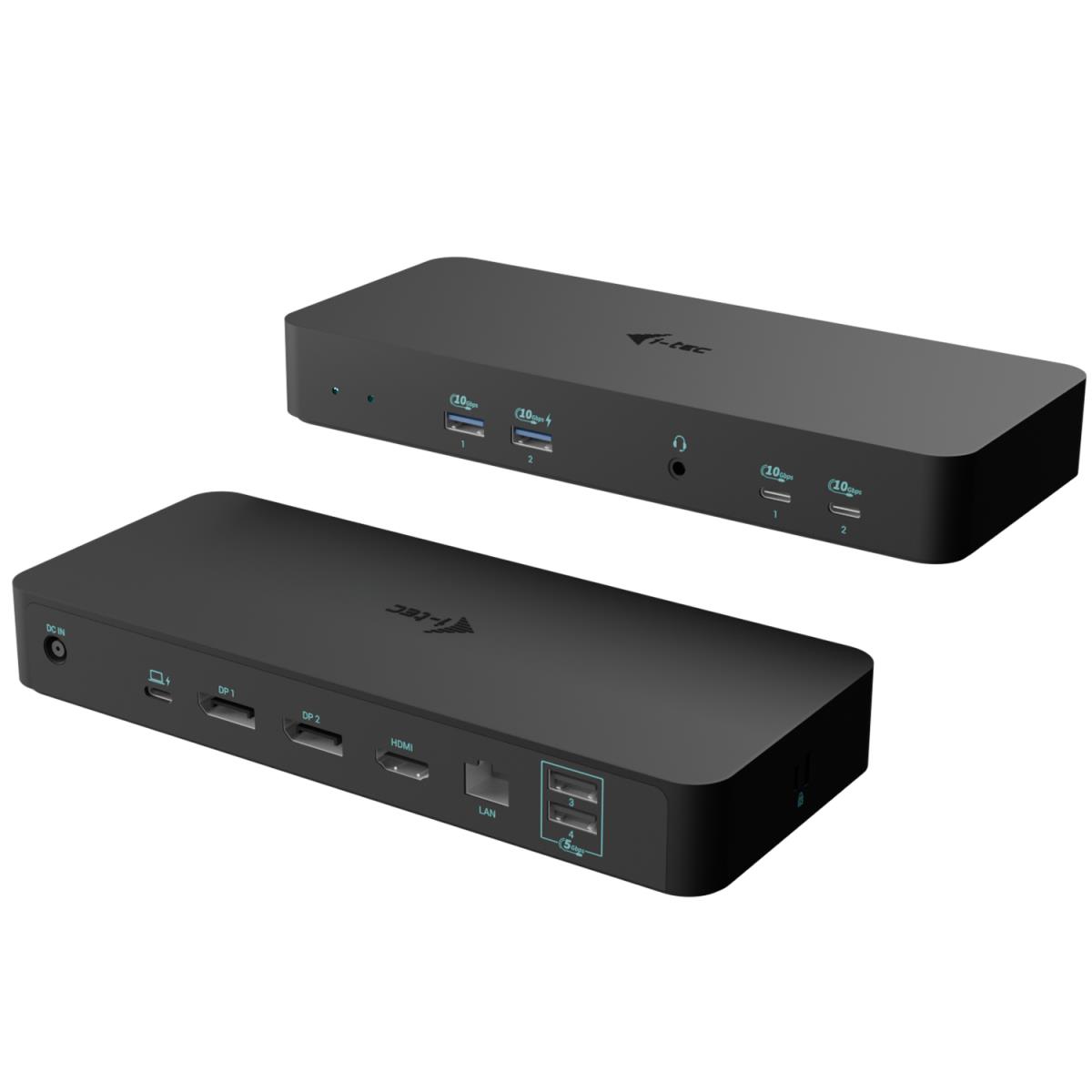

A high-performance, new generation USB-C docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks equipped with USB-C, USB4 and Thunderbolt” 3/4/5 ports, while supporting all common current operating systems.
Plenty of USB ports (including those support Gen 2 speeds of up to 10 Gb/s), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.
- Connect to 3 external monitors in resolutions up to 4K*
- Power delivery: up to 100 W
- 2 DisplayPort and 1 HDMI port available
- 6 USB ports: 2x USB-C (10 Gb/s) supporting BC 1.2 fast charging and 4x USB-A (1x Gen 2 (10 Gb/s) supporting BC 1.2 fast charging, 1x Gen 2 (10 Gb/s) and 2x Gen 1 (5 Gbps)).
- Intelligent Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds and seamless remote management functionality.
- Combo jack for audio and microphone
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, iPadOS, Android, Chrome OS and Linux (with latest updates)
* macOS does not support Multi Stream Transport (MST). Connecting two or more monitors to a macOS station will cause all monitors to display the same image.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 2 |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery tot max. | 100 W |
| Aantal HDMI-poorten | 1 |
| Aantal DisplayPorts | 2 |
| Combo koptelefoon/microfoon port | Ja |
| Type aansluitplug | 3,5 mm |
| Aansluiting voor netstroomadapter | Ja |
| USB Type-C DisplayPort alternatieve modus | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Overdrachtssnelheid | 10 Gbit/s |
| Aantal displays ondersteund | 3 |
| Maximale refresh snelheid | 360 Hz |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| VESA-montage | Ja |
| Kleur van het product | Zwart |
| Aan/uitschakelaar | Ja |
| LED-indicatoren | Ja |
| Energie | |
| Netvoeding | 135 W |
| Spanning | 20 V |
| Output current | 6,75 A |
| Compatibele soorten stopcontacten | CH |
| Lengte stroomkabel | 1,5 m |
| USB kabel lengte | 1 m |
| Software | |
| Ondersteunt Windows | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Ondersteunt Linux | Ja |
| Ondersteunde mobiele besturingssystemen | Android, iPadOS |
| Andere ondersteundende systemen | ChromeOS |
| Gewicht en omvang | |
| Breedte | 206 mm |
| Diepte | 27,9 mm |
| Hoogte | 85,3 mm |
| Gewicht | 353 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | Stroom, USB Type-C naar USB Type-C |
| Inclusief AC-adapter | Ja |
| Gebruikershandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
