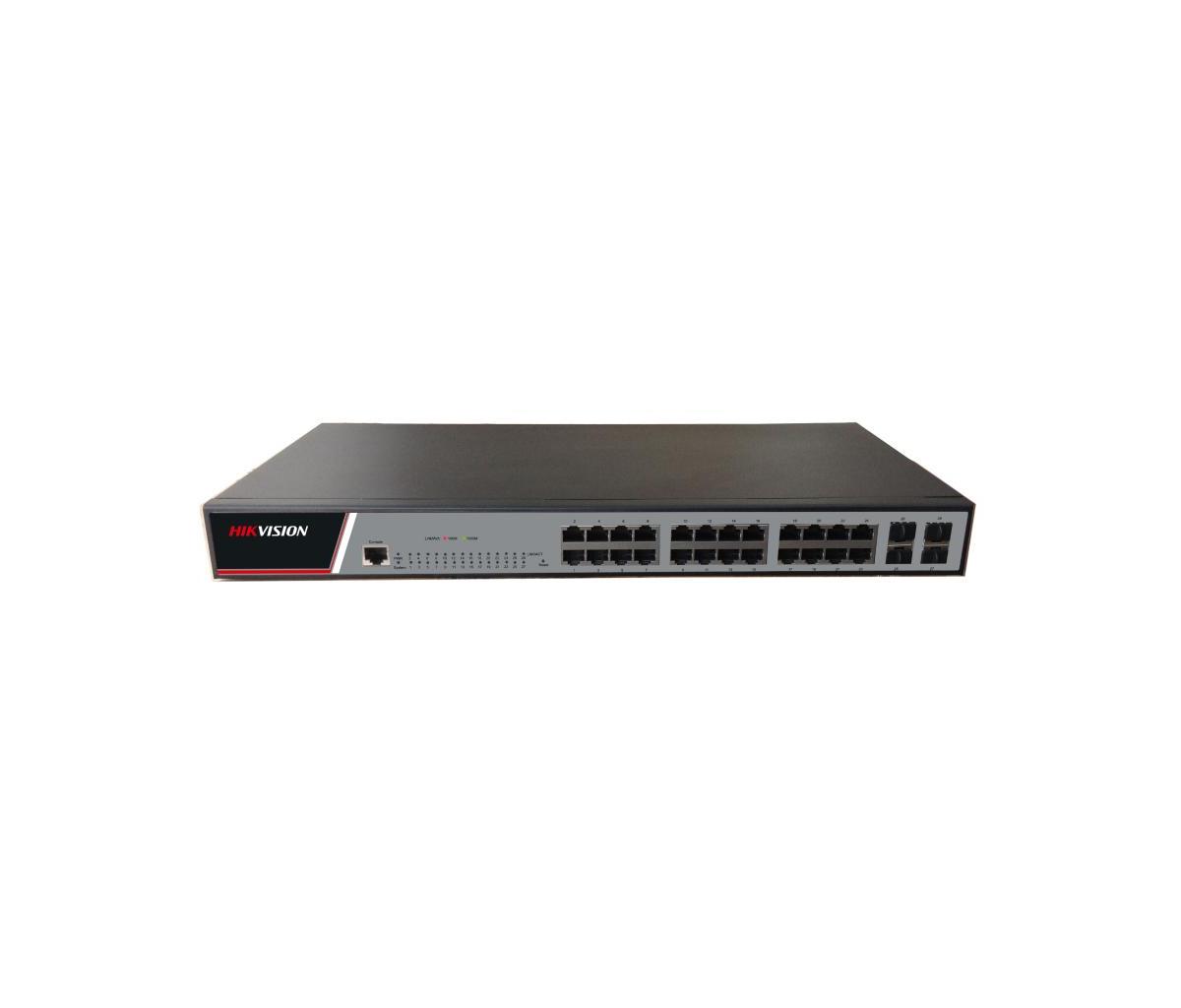

Network Switches Ds-3e2528(b) 24 Port Gigabit Full Managed Poe Switch
ITCurry #: T4498294 | Article #: DS-3E2528(B)-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
If your business uses any security equipment to monitor assets or areas, then having an efficient switch system is essential. Switches for video security are expected to be even more powerful to make the entire security system works properly – transmitting real-time video streams so important data can be viewed and analyzed, and carrying power to IP cameras via Ethernet cables. This is where Hikvision’s Network Switches comes in.
Featuring smart operation, reliable functions and elevated security, Hikvision’s network switches will meet your increasing network demands for video security from core to edge, while boosting your network by transferring huge amounts of data. When integrated with Hikvision software, our network switches help centralize and visualize the management of nearly all Hikvision IP devices, providing comprehensive operation and maintenance capabilities based on a safe, stable network.
Smart
Smart and simple operation
Solid
Solid and reliable performance
Secure
Secure network at all times
| Beheerfuncties | |
| Switch type | Managed |
| Quality of Service (QoS) | Ja |
| Traffic shaping | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 24 |
| Aantal moduleslots SPF | 4 |
| Console port | RJ-45 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| 10G support | Nee |
| Port mirroring | Ja |
| Op beleid gebaseerde routering | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| MAC-adres zelflerende functie | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Private VLAN |
| Aantal VLANs | 4000 |
| Type VLAN-toewijzing | 1:1 VLAN-toewijzing, N:1 VLAN-toewijzing |
| Optische vezel | |
| Fiber ethernet cabling technologie | 1000BASE-X |
| Data-uitwisseling | |
| Switchingcapaciteit | 336 Gbit/s |
| Verzending snelheid | 51 Mpps |
| MAC-adrestabel | 8000 entries |
| Store-and-forward | Ja |
| Beveiliging | |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMP, SNMPv3, SSH-2 |
| MAC adres filtering | Ja |
| IP-MAC-Port binding | Ja |
| Authenticatie | MAC-gebaseerde authenticatie |
| Algoritmen wachtrijplanning | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Protocollen | |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| Materiaal behuizing | Strijkijzer |
| LED-indicatoren | Power over Ethernet (PoE), Stroom, Systeem |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Stroomverbruik (typisch) | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 24 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 370 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 50 øC |
| Temperatuur bij opslag | -40 - 75 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 210 mm |
| Hoogte | 44 mm |
| Gewicht | 2,2 kg |
| Verpakking | |
| Gewicht verpakking | 3,6 kg |
| Warranty | |
| Base Warranty | Non Non |
