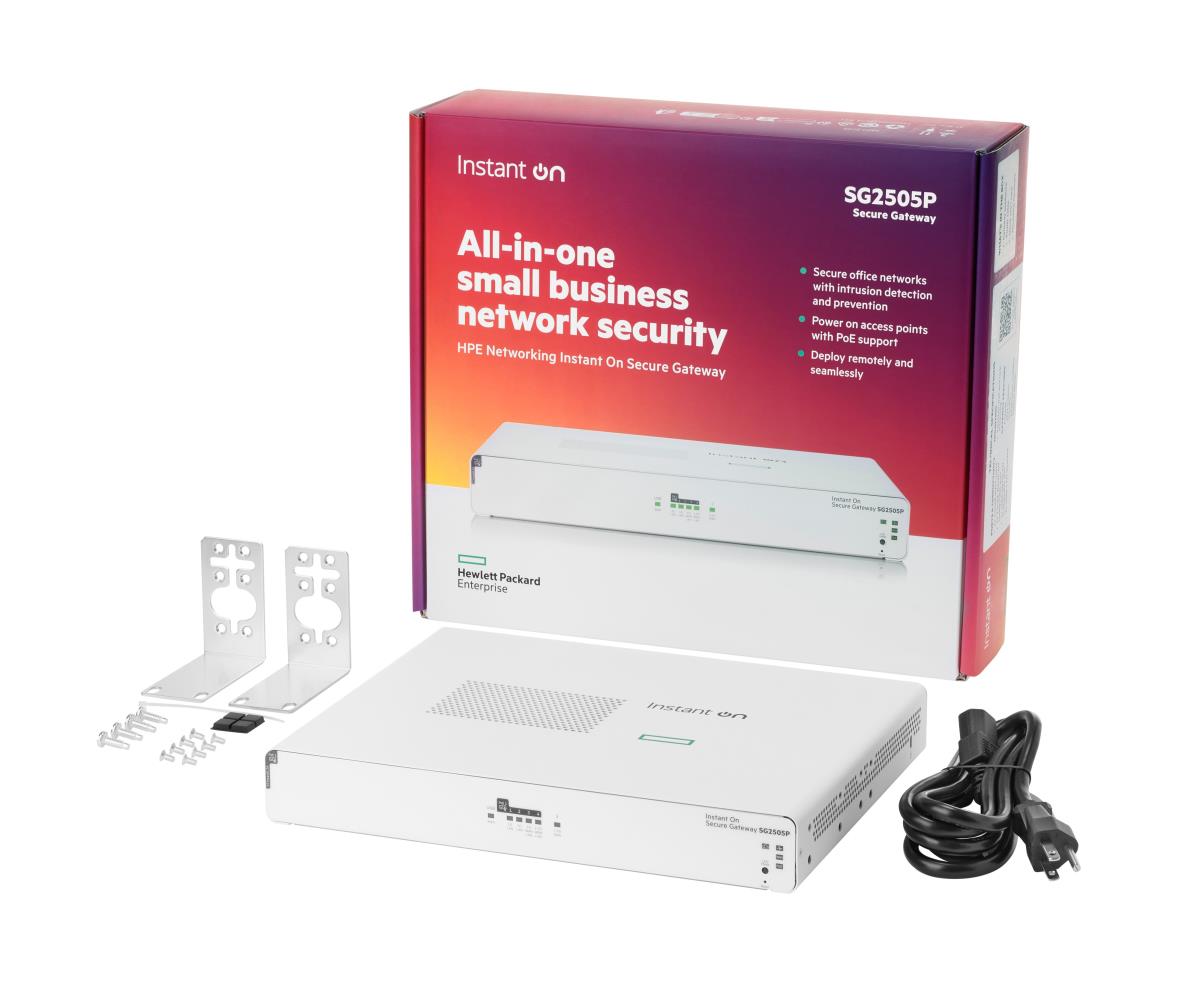

Networking Instant On Secure Gateway 5-port SmartRate 2.5G PoE+ 64W SG2505P
ITCurry #: 1171AYE4 | Article #: S0G34A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking Instant On Secure Gateway is a powerful, cloud-managed security solution designed for small and growing businesses. It delivers enterprise-grade security—firewall, IDS/IPS, VPN, PoE, and WAN resiliency—without hidden fees or licenses. Managed through a single platform, it offers domain blocking, deep packet inspection, and 24x7 network monitoring to protect against cyberthreats. Designed with ease of use in mind, it enables minimum-touch deployment and automated configuration, making network setup and management accessible even for non-technical users. Ideal for securing customer data, transactions, and multi-site connectivity, this gateway provides easy, reliable control tailored to SMB needs, combining simplicity with top-tier protection.
What is new supporting point:
Multi-gigabit WAN support (SG2505P): New multi-gigabit WAN ports for faster and more reliable connectivity.
Cloud-based management: Seamless remote monitoring and management controls through centralized Instant On Cloud Portal/app; automated firmware updates delivered through the cloud.
Secure the LAN: Implementation of Zero Trust model architecture and enhanced hardware-accelerated firewall features keep your business safe.
WAN redundancy and load balancing: Automatically selects the most optimal WAN connection when multiple ISP connections are detected for uninterrupted internet access.
Enhanced user experience: Improved and more intuitive design for simplified navigation and user experience.
PoE+ support (SG2505P): Up to 60W of Power over Ethernet (PoE) budget for simplified device deployment.
| Design | |
| Kleur van het product | Wit |
| Rackcapaciteit | 1U |
| Montagewijze | Rek/Bureaublad/Wand |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 2000 MHz |
| Intern geheugen | 4096 MB |
| Flash memory | 4096 MB |
| Netwerk | |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000,2500 Mbit/s |
| Firewall throughput | 2400 Mbit/s |
| Poorten & interfaces | |
| Aansluitingen | Total ports: 5 WAN Interface: 1x 100/1000/2500-Base-T Ethernet WAN/LAN Configurable Interface: 1x 100/1000/2500-Base-T Ethernet, 1x 10/100/1000-Base-T Ethernet LAN Interfaces: 2x 10/100/1000-Base-T Ethernet |
| Aantal USB 2.0-poorten | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 5 |
| WAN-poort | Ethernet (RJ-45) |
| Energie | |
| Vermogensverbruik (max) | 79,5 W |
| Stroomverbruik (idle) | 5,6 W |
| Ingangsspanning | 100 - 240 V |
| Frequentie | 50/60 Hz |
| Type Power over Ethernet (PoE) ondersteunt | PoE+ |
| Power over Ethernet (PoE) | Ja |
| Gewicht en omvang | |
| Breedte | 309,6 mm |
| Diepte | 234,2 mm |
| Hoogte | 43,9 mm |
| Gewicht | 2,4 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Certificaten | |
| Certificering | Europe: EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020 US: UL 62368-1, 3rd Ed., Canada: CAN/CSA C22.2 No. 62368-1:19, 3rd Ed. Worldwide: IEC 62368-1:2014, 2nd Ed. IEC 62368-1: 2018, 3rd Ed. Taiwan: CNS-15598-1:2020 China: GB 4943.1:2022 Europe: EN 55032:2015 + A11:2020, Class B EN 61000-3-2:2019 EN 61000-3-3:2013 US: FCC 47 CFR part 15B: 2021, Class B Canada: ICES-003 Issue 7: 2020, Class B Worldwide: VCCI-CISPR 32, Class B CISPR 32: 2016, Class B AS/NZS CISPR 32: 2015, Class B CNS 15936: 2020, Class B CISPER 35: 2016 EN 55035:2017/A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 IEC/EN 63000:2018 KS C 9832 |
| Warranty | |
| Base Warranty | Non Non |
