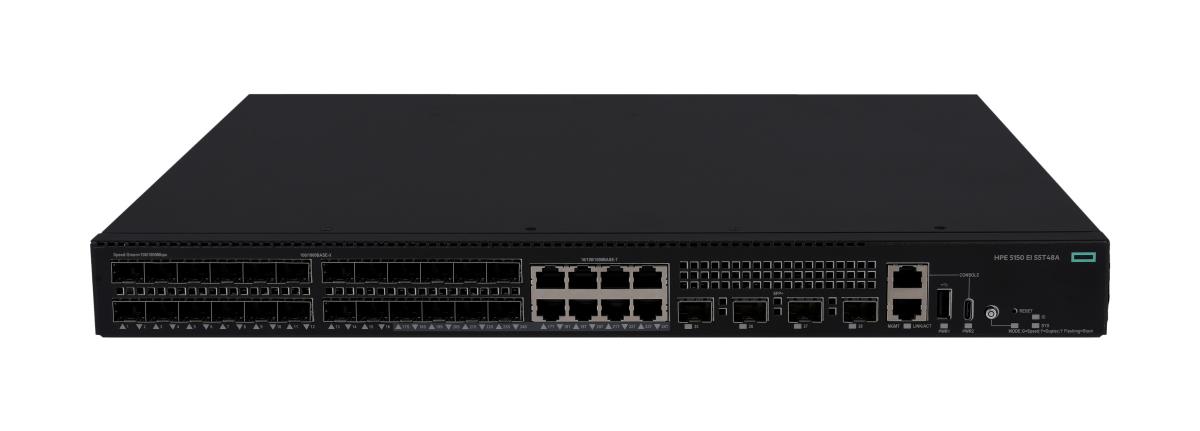

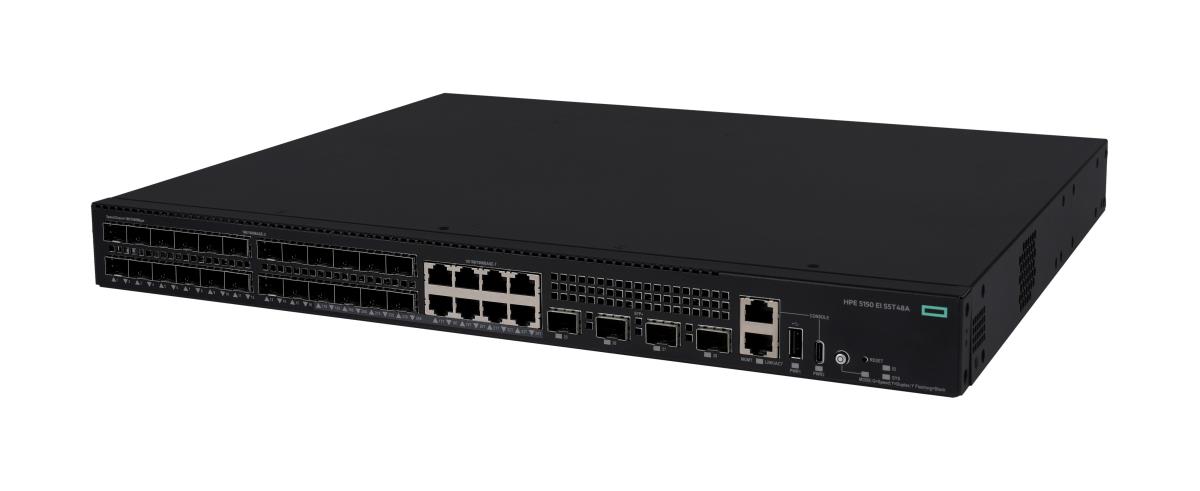

Networking Comware Switch 24p SFP 1G 8p 10M/100M/1G Combo 4p SFP+ 1G/10G 5150EI
ITCurry #: 1171AVT8 | Article #: S5T48A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking Comware Switch Series 5150 EI is a family of stackable L3 access switches powered by HPE Comware OS delivering scalability and resiliency at a modest TCO for small, medium, and large enterprise campus networks. With 8, 24, and 48 gigabit ports, options for mixed copper and fiber connectivity, and up to 30 watts of 802.3at PoE per port this flexible series is ready to connect your edge clients, servers, and IoT devices. Built-in 10 GbE uplinks and Intelligent Resilient Fabric (IRF) stacking up to 9-members adds scale, resiliency, and simplification to your access network, enabling network operators to manage the whole stack as a single logical switch. Network visibility, management, and operation tools for this series include standard CLI and the Smart Management Center (SmartMC), embedded and ready to use at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network.
What is new supporting point:
Family of stackable L3 access switches with 1 GbE downlinks, 10 GbE uplinks, and support OSPF, EIGRP, ISIS, RIP and routed access. PoE-enabled models deliver up to 30 watts of 802.3at power per port.
8, 24, and 48 port configurations available, supporting up to 176 Gbps of switching capacity and 130 Mpps of forwarding throughput. 24-port fiber option with redundant, dual modular power supplies.
Up to 432 ports of scalability with Intelligent Resilient Fabric (IRF) stacking up to 9-members for link and device aggregation across your network, enhancing redundancy and resource usage.
Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.
Energy Efficient Ethernet and energy-saving green design initiatives support your sustainability efforts by automatically reducing power to idle ports and powering down unused ports.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF+ | 4 |
| Netwerk | |
| 10G support | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 128 Gbit/s |
| Throughput | 95 Mpps |
| Latentie (1 Gbps) | 5 æs |
| Latentie (10 Gbps) | 3 æs |
| Packet buffergeheugen | 1,5 MB |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Kleur van het product | Zwart |
| Aantal ventilatoren | 2 ventilator(en) |
| Prestatie | |
| Physical stacking (units) | 9 |
| Type processor | Ja |
| Processorfabrikant | ARM |
| Frequentie van processor | 1200 MHz |
| Type geheugen | SDRAM / Flash |
| Intern geheugen | 2048 MB |
| Flash memory | 1024 MB |
| Energie | |
| AC-ingangsspanning | 90 - 290 V |
| DC voltage input | 36 - 72 V |
| Vermogensverbruik (max) | 22 W |
| Energieverbruik opmerking | Idle: Single AC: 11W, Dual AC: 13W; Single DC: 15W, Dual DC: 22W Full Load: Single AC: 35W, Dual AC: 37W; Single DC: 37W, Dual DC: 44W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Latentie | 1GE: < 5 æs; 10GE: < 3 æs |
| Geheugen en processor | CPU: Arm 1.2 GHz Dual Core 2 GB SDRAM, 1 GB Flash, 1.5 MB packet buffer |
| Prestatiebeheer | IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI |
| Poortsnelheid | 24p SFP 1G 8p 10M/100M/1 G Combo 4p SFP+ 1G/10G |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Warranty | |
| Base Warranty | Non Non |
