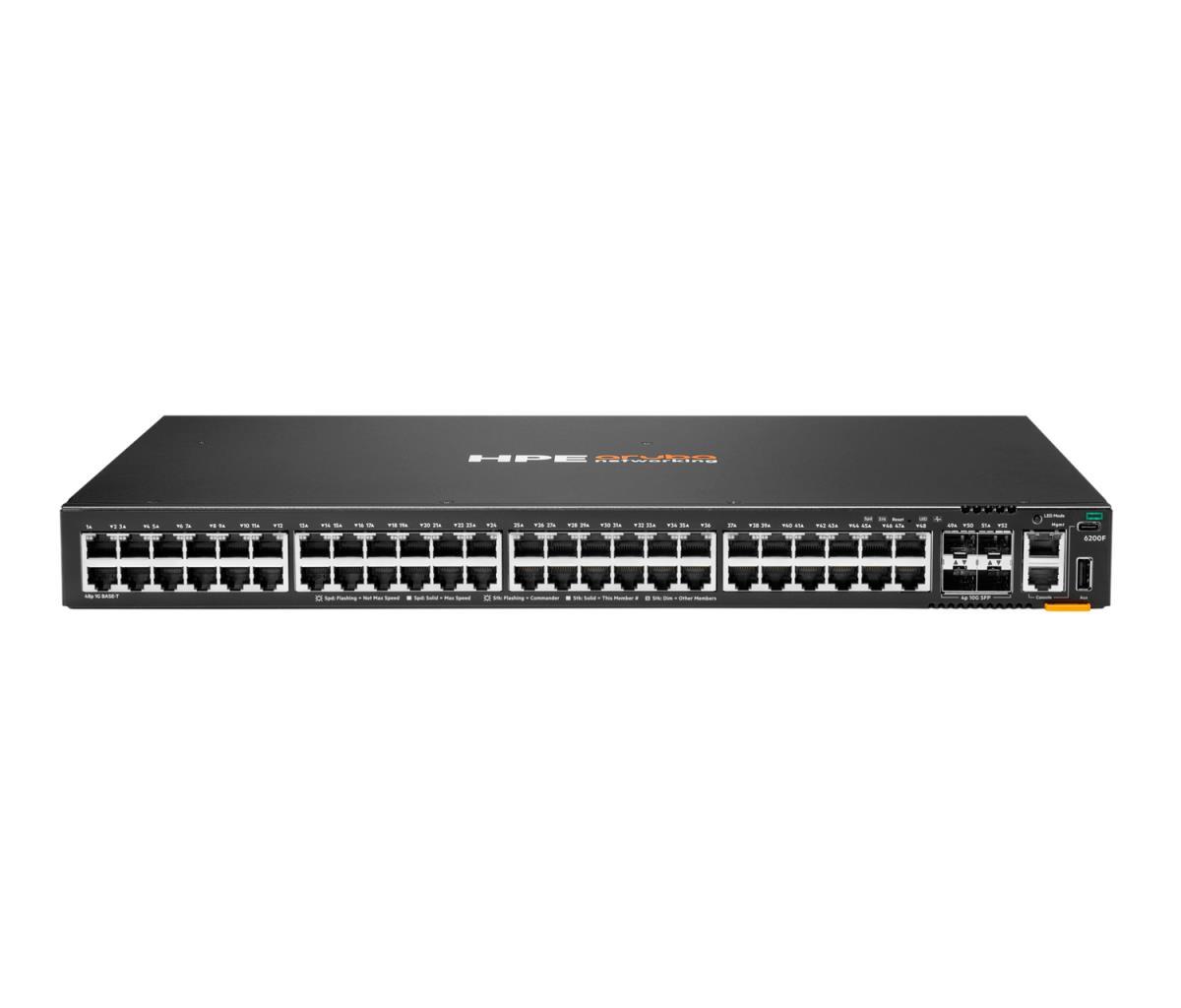

Aruba Networking CX 6200F 48G 4SFP+ Switch, 48x ports 10/100/1000BASE-T Ports
ITCurry #: 1171ARD7 | Article #: JL726B-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
Features
Automation and Analytics
- The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
- The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
- The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.
Performance and Power
- The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
- Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Smarter Segmentation
- The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF+ | 4 |
| Aantal USB Type-A-poorten | 1 |
| Console port | RJ-45/USB Type-C |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4094 |
| Data-uitwisseling | |
| Switchingcapaciteit | 176 Gbit/s |
| Throughput | 130,9 Mpps |
| MAC-adrestabel | 32768 entries |
| Latentie (1 Gbps) | 2,28 æs |
| Latentie (10 Gbps) | 1,46 æs |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Authenticatie | MAC-gebaseerde authenticatie, Webgebaseerde authenticatie |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Nee |
| Protocollen | |
| Beheerprotocollen | SNMPv2c, SNMPv3 |
| Routing protocols | OSPFv2, OSPFv3, RIP-2 |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Luchtstroomrichting | Luchtstroom van voren naar achteren |
| Prestatie | |
| Physical stacking (units) | 8 |
| Type processor | Ja |
| Processormodel | ARM Cortex-A72 |
| Frequentie van processor | 1800 MHz |
| Type geheugen | DDR4-SDRAM |
| Intern geheugen | 8192 MB |
| Flash memory | 16384 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Aantal voedingen | 1 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 90 procent |
| Hoogte, in bedrijf | 0 - 3048 m |
| Hoogte bij opslag | 0 - 4600 m |
| Gewicht en omvang | |
| Breedte | 442 mm |
| Diepte | 327 mm |
| Hoogte | 43,9 mm |
| Gewicht | 3,9 kg |
| Warranty | |
| Base Warranty | Non Non |
