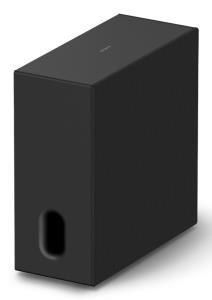

Subwoofer - T5 - Wired - Rms 70w - Powerful Distortion - Black
ITCurry #: Q9922324 | Article #: T5-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Deep and Powerful Bass
Featuring an 8-inch long-throw woofer, this subwoofer reproduces low frequencies down to 38Hz. Powered by a high-efficiency switching power supply and Texas Instruments closed-loop class-D amplifier, it delivers 70W RMS output.
Precise Digital Signal Processing
Texas Instruments high-performance analog front end and digital amplifier guarantee accurate audio conversion and amplification. The integrated DSP (digital signal processor) ensures precise low-pass filtering and phase control, enabling seamless crossover with your speaker system.
Low Distortion
The 18mm MDF (medium-density fiberboard) cabinet securely houses the acoustic unit, minimizing resonance and distortion for tight and clear bass.
Versatile Connectivity
Signal In and Signal Out ports provide compatibility with desktop speakers, bookshelf speakers, and home theater receivers.
Method 1:
If the main speaker system has a subwoofer port, connect it to the Signal In ports on the subwoofer, then connect the main speaker system to the audio source.
* Compatible EDIFIER speaker models:
R1280Ts, R1280DBs, R1700BTs, R1850DB, R1855DB, R2750DB, R2850DB, S880DB MKII, D12, QR65
Method 2:
If the main speaker system lacks a subwoofer port, connect its audio input to the subwoofer's Signal Out ports, then connect the subwoofer's Signal In ports to the audio source's output.
Auto Standby
The subwoofer saves energy by entering standby mode after 30 minutes of inactivity and resumes when playback starts.
Stylish Design
A wood grain vinyl finish and low-profile grille complement any room decor.
| Subwoofer | |
| Subwoofertype | Actieve subwoofer |
| Gemiddeld vermogen subwoofer | 70 W |
| Frequentiebereik subwoofer | 38 - 200 Hz |
| Subwoofer sensitiviteit | 85 dB |
| Diameter driver subwoofer (imperiaal) | 20,3 cm (8") |
| Input sensitiviteit | 50 mV |
| Low pass filter | Ja |
| Poorten & interfaces | |
| Lijningang | Ja |
| Lijnuitgang | Ja |
| Kenmerken | |
| Kleur van het product | Zwart |
| Materiaal | MDF |
| Aan/uitschakelaar | Ja |
| Fase controle | Ja |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| Gewicht en omvang | |
| Breedte van de subwoofer | 27,8 cm |
| Diepte van de subwoofer | 30 cm |
| Hoogte van de subwoofer | 33,6 cm |
| Gewicht subwoofer | 13 kg |
| Warranty | |
| Base Warranty | Non Non |
