IT BASIC PDU. Vertical. 16A. 24 x C13. 3 x C19 1-phase. 3m cable. IEC309 16A plug
ITCurry #: M9239047 | Article #: DN-95450-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Secure and professional power distribution solution for demanding IT requirements in network and server cabinets
- Optimum design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets

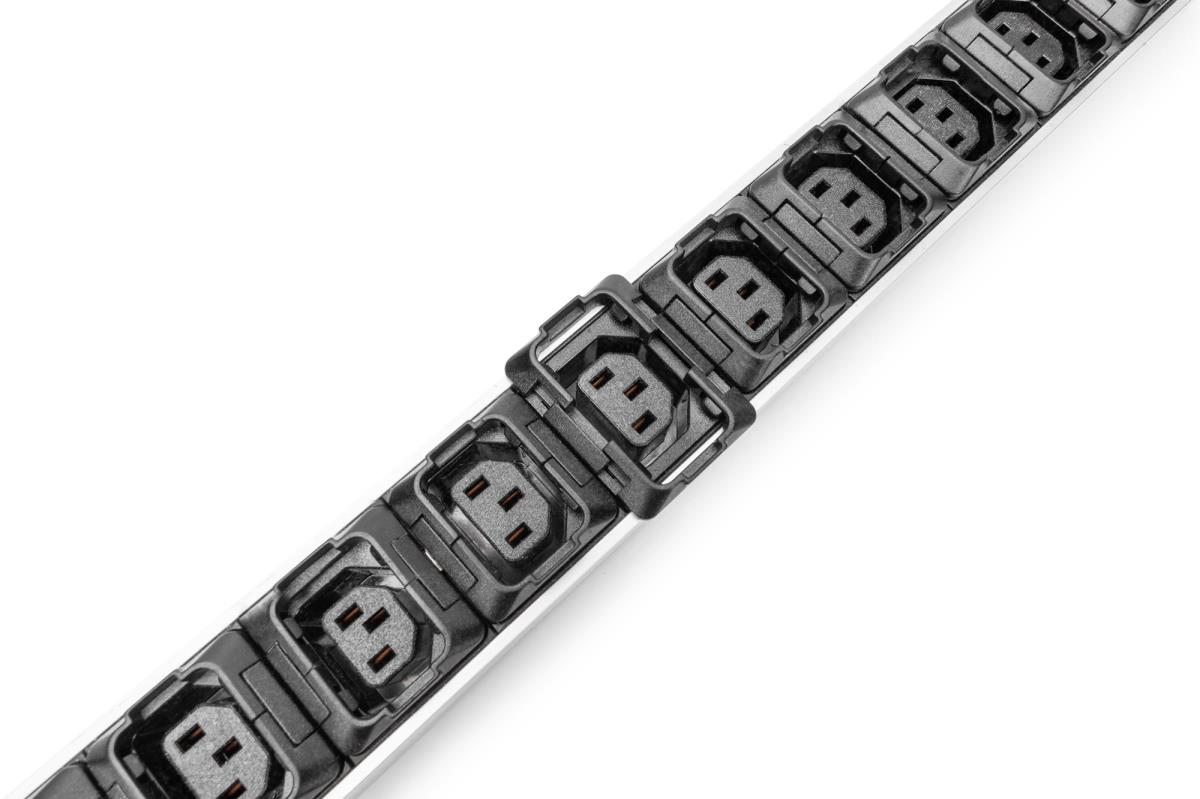

- Integrated pull-out protection on each output, protects C13 and C19 standard cables from unintentional unplugging

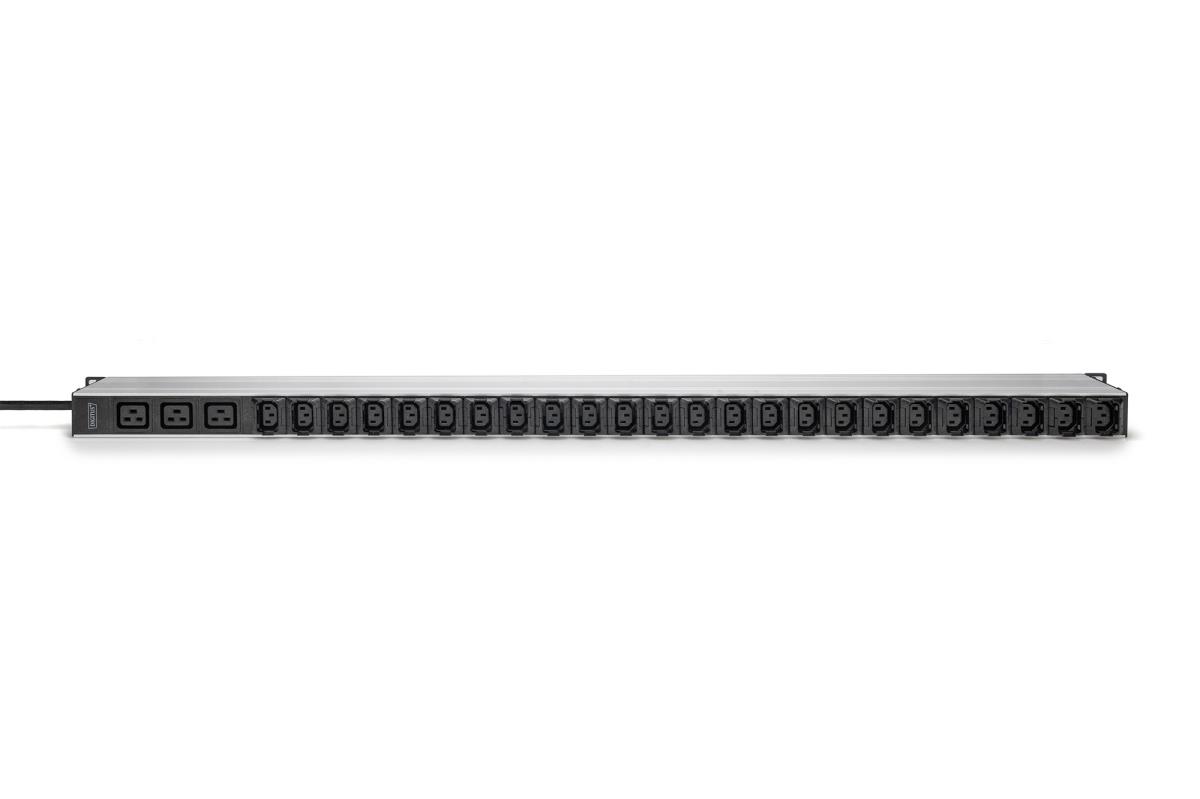

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with pull-out protection. It is designed for vertical installation, which saves height units and provides more space for additional devices. The socket strip with 27 outlets has excellent physical properties and is designed for an output of up to 4,000 W (250VAC / 16A), enabling the best performance to be achieved with the corresponding load.
| Design | |
| PDU types | Basis |
| Soort | Eenfasig |
| Rackcapaciteit | 0U |
| Montage | Verticaal |
| Materiaal behuizing | ABS kunststof, Aluminium |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 27 AC-uitgang(en) |

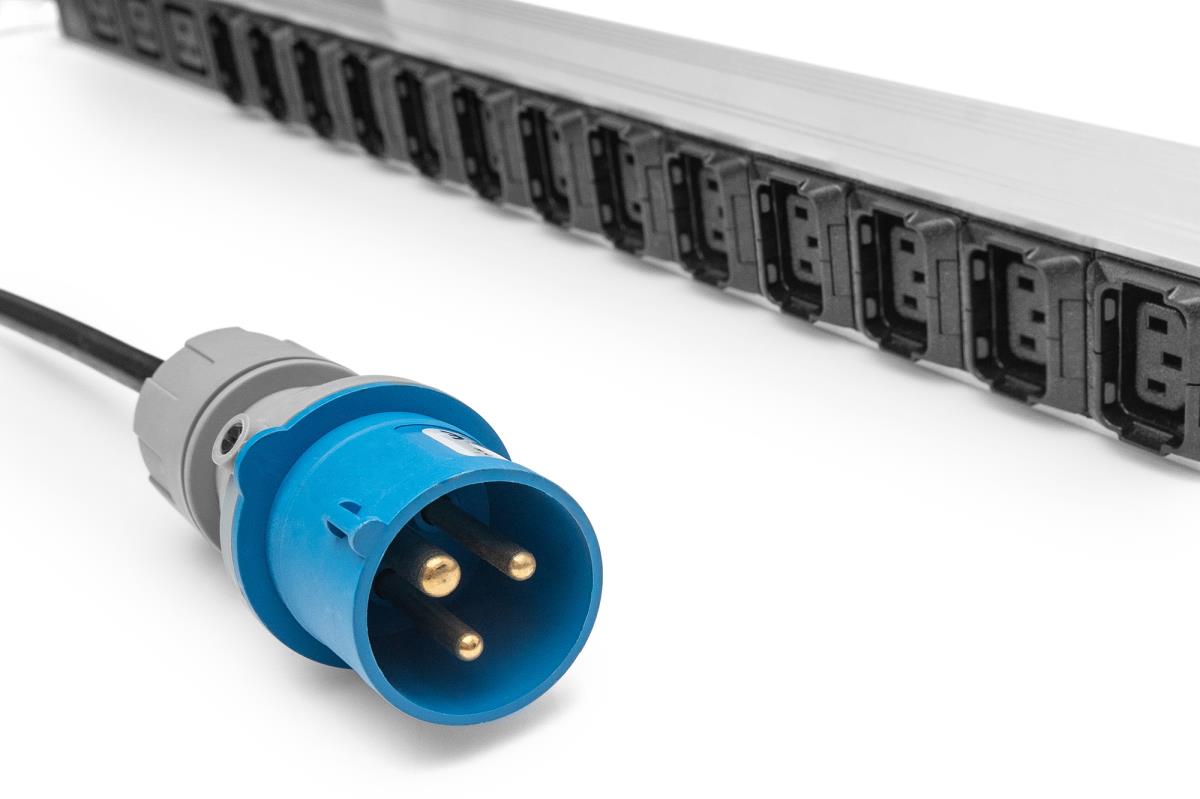

| Stekker | IEC 60309 |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Aantal masterstopcontacten | 24 |
| Aantal slavestopcontacten | 3 |
| Kenmerken | |
| Snoerlengte | 3 m |
| Energie | |
| Nominale input voltage | 250 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom (max.) | 16 A |
| Poort 1 uitgangsstroom | 10 A |
| Poort 2 uitgangsstroom | 16 A |
| Netspanning, in bedrijf | 230 V |
| Spanning | 230 V |
| Laad-capaciteit | 3600 VA |
| Aantal fases | 1 |
| Maximaal vermogen | 4000 W |
| Gewicht en omvang | |
| Breedte | 45 mm |
| Diepte | 1140,5 mm |
| Hoogte | 60 mm |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Verpakking | |
| Gewicht verpakking | 3,35 kg |
| Breedte verpakking | 145 mm |
| Diepte verpakking | 1400 mm |
| Verpakkingsvolume | 14210 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85444290 |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
