Fttx - Installation Kit - 4-Core, LC connector 70m, APC, NE4
ITCurry #: M9239851 | Article #: DN-948070-1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

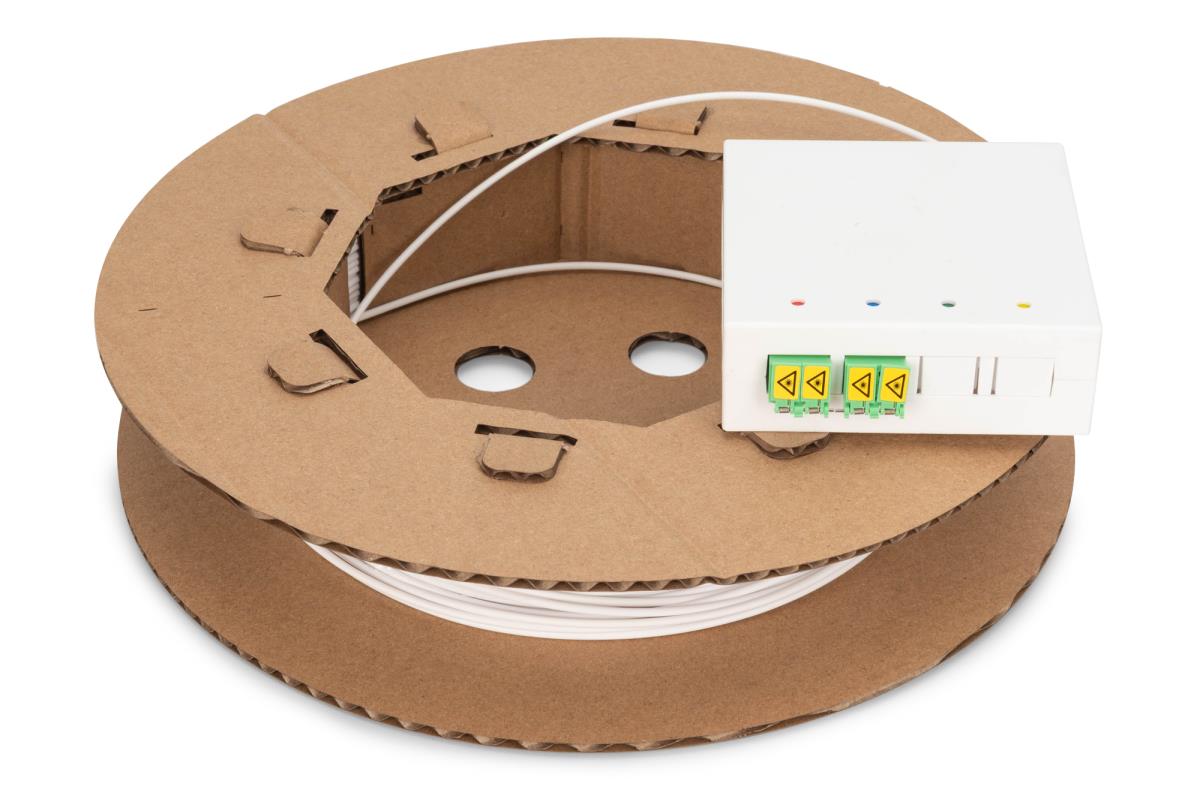

The compact FTTH kit with pre-assembled fiber optic installation cable on one side is ideal for installing high-speed fiber optic connections within the home for network level 4.
- Short installation time within the residential unit
- FTTH drop cables are already assembled with LC/APC connectors on one side
- The open end can simply be pulled in or laid up to the house distribution board
- Surface mounting of the box for optimized, secure installation of patch cables
- Integrated, captive laser protection on the LC APC couplings
- Sturdy pulling eye for pulling the cable into conduit systems
The growing demand for extending the fiber optic network into the home requires products that enable simple and efficient installation of this network. The Digitus FTTH installation kit is a solution that makes it easy to extend and complete the fiber optic network in the home. The simplicity of the installation results from the fact that the product is supplied with all the necessary components, thus eliminating the need to search for the components for the installation individually. The junction box can be mounted in the intended location and connection to the router is made easier as the LC/APC connectors are already included. The integrated fiber drop cable can then be pulled to make the connection to the house handover point, which is mounted in the building as the entry point for the fiber network. It provides additional connections and splicing options to meet the requirements for scaling the number of fiber connections.
| Kenmerken | |
| Snoerlengte | 70 m |
| Kabelvorm | Rond |
| Aansluiting 1 | LC |
| Aansluiting 2 | 2x LC |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Vrouwelijk |
| Type afwerking van schakelaar | APC |
| Soort kabel | FTTH |
| Kleur van het product | Wit |
| Full duplex | Ja |
| Kern diameter | 9 æm |
| Bekleding diameter | 125 æm |
| Materiaal buitenmantel | Aramide |
| Plug and play | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -15 - 60 øC |
| Temperatuur bij opslag | -15 - 60 øC |
| Gewicht en omvang | |
| Diameter van de kabel | 2 mm |
| Verpakking | |
| Breedte verpakking | 250 mm |
| Diepte verpakking | 55 mm |
| Hoogte verpakking | 255 mm |
| Gewicht verpakking | 1,26 kg |
| Type verpakking | Doos |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Overige specificaties | |
| Afmetingen (B x D x H) | 80 x 80 x 28 mm |
| Warranty | |
| Base Warranty | Non Non |
