Product Informatie

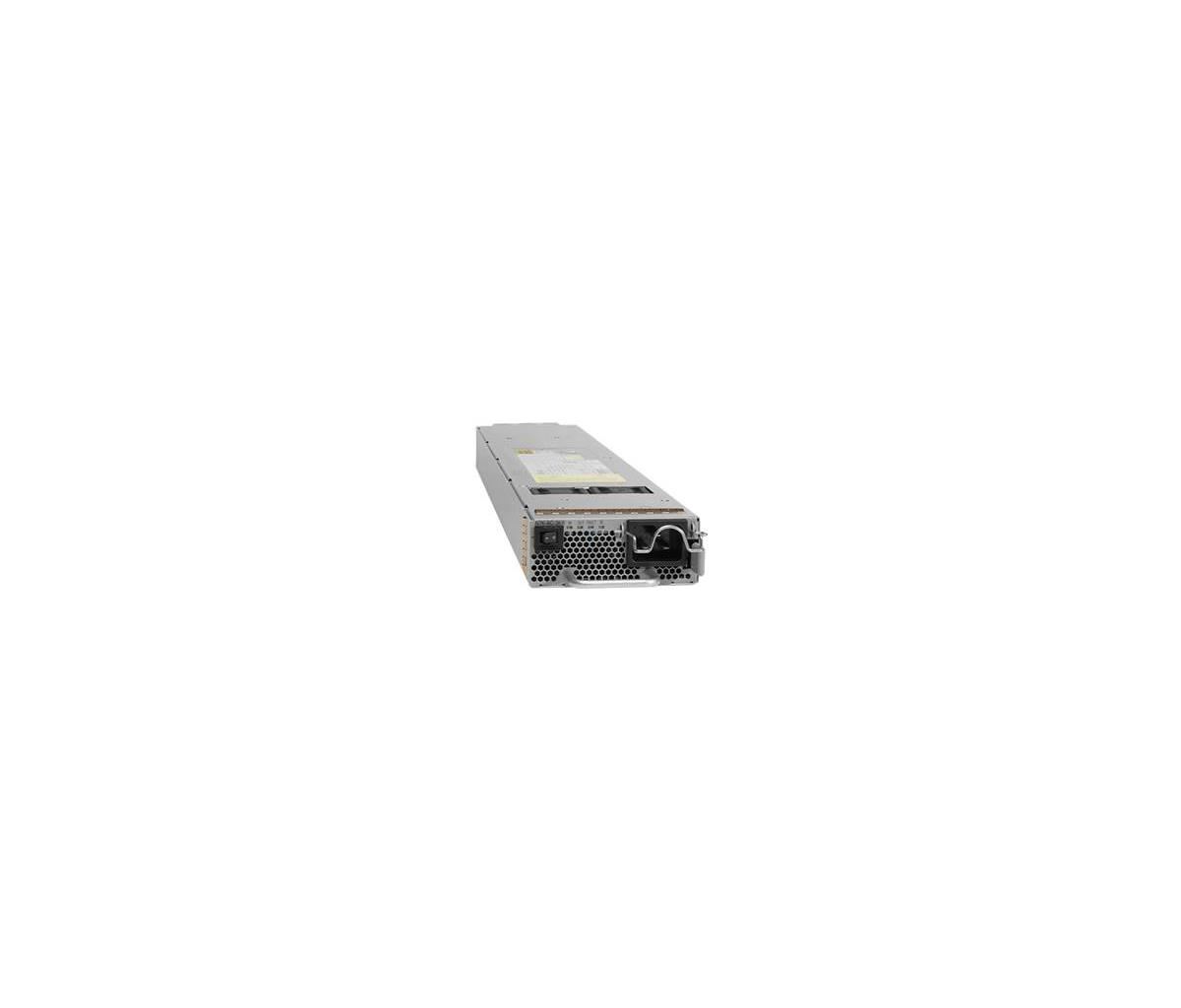

The 3.0-kilowatt (kW) AC power supply module for the Cisco Nexus 7000 Switches is a single 20-ampere (A) AC input power supply. Connecting to high line nominal voltage (220 VAC) will produce a power output of 3000W. Connecting to low line nominal voltage (110 VAC) will produce a power output of 1400W.
| Kenmerken | |
| Type product | Voeding |
| Kleur van het product | Grijs |
| Warmtedissipatie | 11400 BTU/h |
| Elektromagnetische compatibiliteit | EN55024, CISPR24, EN300386, KN24 |
| Compatibiliteit | Cisco Nexus 7000 |
| Energie | |
| Totaal vermogen | 3000 W |
| AC-ingangsspanning | 90 - 264 V |
| AC-ingangsfrequentie | 47 - 63 Hz |
| Stroom (max.) | 16 A |
| Certificaten | |
| 80 PLUS certificatie | 80 PLUS Platinum |
| Veiligheid | Ul/CSA/IEC/EN 60950-1, AS/NZS 60950 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Gewicht en omvang | |
| Breedte | 100 mm |
| Diepte | 559 mm |
| Hoogte | 41 mm |
| Gewicht | 2,27 kg |
| Warranty | |
| Base Warranty | Non Non |
