Product Informatie

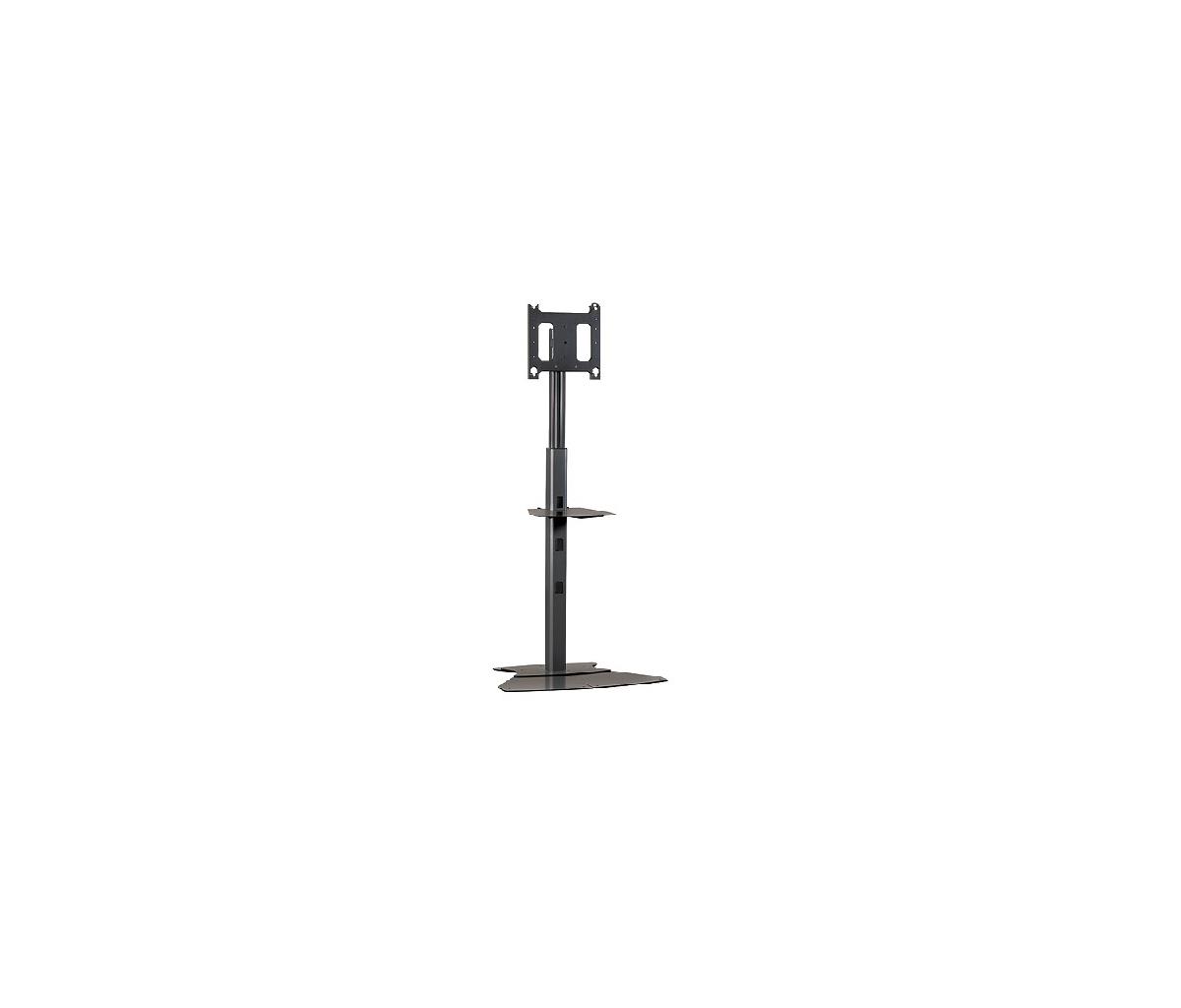

A solid, low-profile solution for mounting a flat panel on a floor AV stand.
Ideal for digital signage and corporate presentations
PF1UB and PF1US ship with a universal interface bracket
PF12000B and PF12000S require an MSB interface, like the PSBUB to be purchased separately
PAC710 height-adjustable accessory shelf shown is sold separately
Consider adding a PACTP1 Touchpanel Stabilizer accessory for improved rigidity for touchpanel applications.
| Montage | |
| Maximale gewichtscapaciteit | 90,72 kg |
| Minimale schermgrootte | 106,7 cm (42") |
| Aantal displays ondersteund | 1 |
| Maximale schermgrootte | 2,18 m (86") |
| Montage interface compatibiliteit (min) | 200 x 200 mm |
| Montage interface compatibiliteit (max) | 800 x 400 mm |
| VESA maat | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400 |
| Montagewijze | Muur |
| Ergonomie | |
| In hoogte verstelbaar | Ja |
| Hoogte verstelbaarheidsbereik | 1300 - 2100 mm |
| kantel aanpassingen | Ja |
| Bereik kantelhoek | -15 - 15ø |
| Verbeterd kabelbeheer | Ja |
| Telescopisch | Ja |
| Design | |
| Kleur van het product | Zwart |
| Materiaal behuizing | Staal |
| Technische details | |
| Basis type | Floor plate |
| Inhoud van de verpakking | |
| Montage gereedschap | Ja |
| Gewicht en omvang | |
| Breedte | 914 mm |
| Diepte | 762 mm |
| Hoogte (max) | 2,39 m |
| Gewicht | 65 kg |
| Verpakking | |
| Gewicht verpakking | 65,3 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85299097 |
| Overige specificaties | |
| Verstelbaar | Ja |
