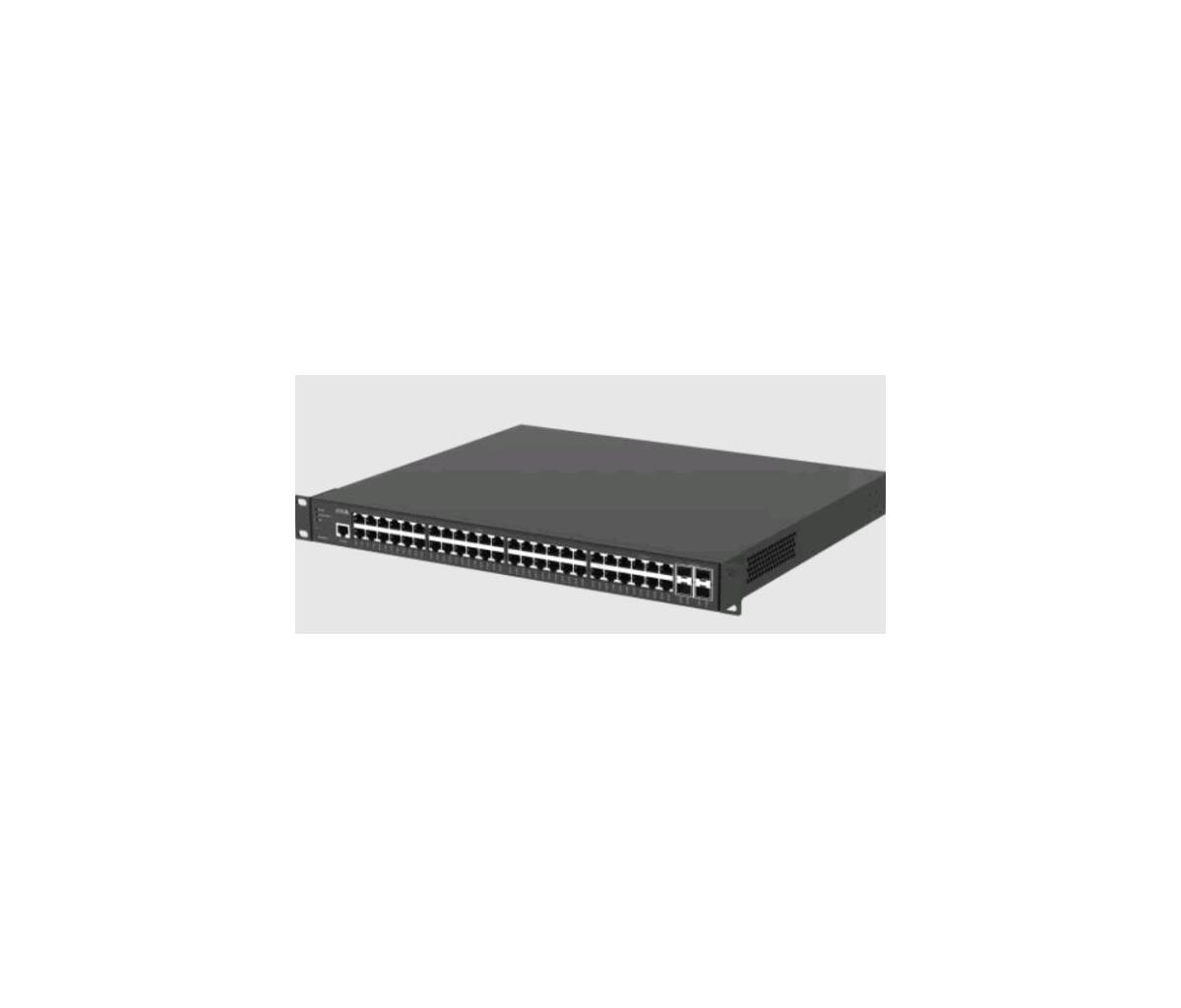

AXIS D8248 Managed PoE++ Switch
This 48 port network switch is optimized for surveillance solutions. With a unique web graphic user interface, it offers a topology for easy overview and management of all devices in the system.
Perfect match for Axis surveillance solutions
AXIS D8248 Managed PoE++ Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S12 Series. It has a total power budget of 740 W, and it is equipped with four additional SFP+ ports, allowing high speed data traffic over long distances. This 48-port switch supports PoE class 4, and eight of these ports offer up to 90 W per port. Additional power can also be added by connecting midspans.
Total overview of your devices
Featuring a unique web user interface, this switch offers a graphic topology for an overview of all devices in the system. With access to all information, statuses, and notifications about your connected devices, you can easily manage all devices, reboot cameras in the system, monitor network traffic, perform cable diagnostics, and much more.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| ARP-inspectie | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Fibre channel-poorten | 4 |
| Vezel-optische connector | SFP+ |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3at, IEEE 802.3bt |
| 10G support | Ja |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 10GBASE-LR, 100BASE-T, 1000BASE-T |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 176 Gbit/s |
| Throughput | 130,944 Mpps |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10240 |
| Beveiliging | |
| DHCP-functies | DHCP server, DHCP snooping |
| Access Control List (ACL) | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, HTTPS, TLS |
| Bescherming lus | Ja |
| Wachtwoordbeveiliging | Ja |
| Protocollen | |
| Ondersteunde netwerkprotocollen | IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnPa, SNMP v1/v2c/v3 , DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-MED, STP, MSTP, RSTP, LACP |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| Materiaal behuizing | Staal |
| Energie | |
| Stroombron | AC |
| AC-ingangsspanning | 110 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Stroomspanning bescherming | Overspanningsbeveiliging |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Type Power over Ethernet (PoE) ondersteunt | PoE++ (4PPoE) |
| Aantal Power over Ethernet 4PPoE (PoE++)-poorten | 48 |
| Vermogen per poort Power over Ethernet (PoE) | 90 W |
| Totaal Power over Ethernet (PoE)-budget | 740 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 483 mm |
| Diepte | 376 mm |
| Hoogte | 44 mm |
| Gewicht | 5,62 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Duurzaamheid | |
| Bevat geen | CFR, PVC/BFR |
| Certificaten | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), ICES, MIC, RCM, REACH, RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA), UL, VCCI, cUL |
| Warranty | |
| Base Warranty | Non Non |
