Camera Station S9201 Mk Il Desktop Terminal
ITCurry #: 13835415 | Article #: 01691-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

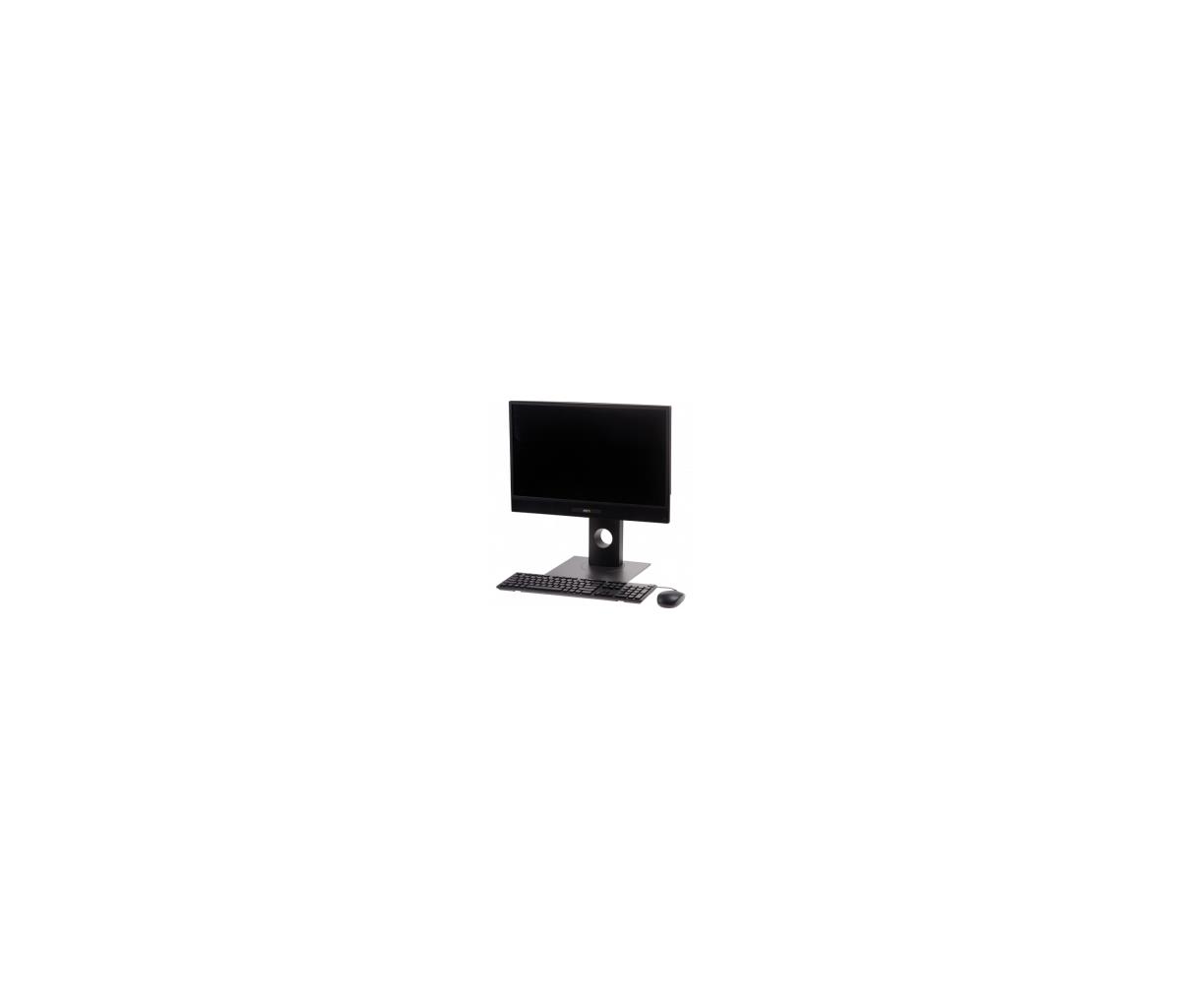

AXIS Camera Station S9201 Mk ll Desktop Terminal
AXIS Camera Station S9201 Mk ll Desktop Terminal is a compact all-in-one desktop terminal designed for optimal viewing of high-definition surveillance video where space is limited. The terminal is preloaded with AXIS Camera Station software to minimize installation time and complements AXIS S11 Recorder Series and AXIS S20 Appliances Series to create a high performing surveillance workstation. AXIS S9201 Mk ll has validated hardware and software components for optimal surveillance experience, and includes three-year hardware warranty with on-site replacement service. AXIS S9201 Mk ll includes a 22 inch monitor for system overview, as well as a universal keyboard and a computer mouse.
Out-of-the-box ready
AXIS S9201 Mk ll is designed for quick installation. The terminal is preloaded with all necessary software including AXIS Camera Station video management software client to enable quick connection to the server. System settings such as camera and storage configurations are preconfigured to further simplify system setup. International keyboard and computer mouse are included.
Maximum reliability
AXIS S9201 Mk ll is optimized to meet the demands for reliable high definition surveillance and have validated hardware and software components for an optimal surveillance experience. To further safeguard system uptime the package include three-year hardware warranty with on-site replacement service and 2-years optional extended warranty.
| Beeldscherm | |
| Beeldschermdiagonaal | 55,9 cm (22") |
| HD type | UltraWide Quad HD |
| Beeldscherm vorm | Flat |
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© CoreT i3 |
| Processorgeneratie | Intel© 8de generatie CoreT i3 |
| Processormodel | i3-8100 |
| Frequentie van processor | 3,6 GHz |
| Aantal processorkernen | 4 |
| Processor aantal threads | 4 |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Systeembus | 8 GT/s |
| Thermal Design Power (TDP) | 65 W |
| PCI Express slots versie | 3.0 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithografie | 14 nm |
| Processor operating modes | 64-bit |
| Bus type | DMI3 |
| Codenaam processor | Coffee Lake |
| Maximaal aantal PCI Express-lijnen | 16 |
| PCI Express configuraties | 1x16, 1x8+2x4, 2x8 |
| Tjunction | 100 øC |
| Maximaal intern geheugen ondersteund door processor | 64 GB |
| Conflictvrije processor | Ja |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2400 MHz |
| Geheugenbandbreedte ondersteund door de processor ( max) | 37,5 GB/s |
| Geheugenkanalen ondersteund door processor | Dual |
| ECC ondersteund door processor | Nee |
| Geheugen | |
| Intern geheugen | 8 GB |
| Opslagmedia | |
| Totale opslagcapaciteit | 128 GB |
| Opslagmedia | SSD |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | SD |
| Grafisch | |
| Ingebouwde grafische adapter | Ja |
| Familie ingebouwde grafische adapter | Intel© HD Graphics |
| On-board graphics adapter model | Intel© UHD Graphics 630 |
| Basisfrequentie ingebouwde grafische adapter | 350 MHz |
| Graphics on-board -adapter dynamische frequentie (max) | 1100 MHz |
| Maximaal geheugen ingebouwde grafische adapter | 64 GB |
| Aantal displays ondersteund (door on-board grafische adapter) | 3 |
| On-board grafische adapter DirectX-versie | 12.0 |
| On-board grafische adapter OpenGL versie | 4.5 |
| On-board grafische adapter ID | 0x3E91 |
| Aantal verwerkingseenheden | 23 |
| Camera | |
| Ingebouwde camera | Nee |
| Netwerk | |
| Ethernet LAN | Ja |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal DisplayPorts | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Design | |
| Kleur van het product | Zwart |
| VESA-montage | Ja |
| Paneelmontage-interface | 100 x 100 mm |
| Prestatie | |
| Type product | All-in-One workstation |
| Software | |
| Inclusief besturingssysteem | Windows 10 Enterprise |
| Herstel besturingssysteem | Windows 10 Enterprise |
| Processor speciale functies | |
| Intel© Turbo Boost Technology | Nee |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Nee |
| Intel© Identity Protection Technology (Intel© IPT) | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel© Quick Sync Video Technology | Ja |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Ja |
| Intel© Clear Video-technologie | Ja |
| Intel© InTruT 3D Technology | Ja |
| Intel© AES New Instructions (Intel© AES-NI) | Ja |
| Intel© Trusted Execution Technology | Nee |
| Intel© Enhanced Halt State | Ja |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© Secure Key | Ja |
| Intel© TSX-NI | Nee |
| Intel© Stable Image Platform Program (SIPP) | Nee |
| Intel© OS Guard | Ja |
| Intel© Software Guard Extensions (Intel© SGX) | Ja |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel© CVT for MID) | Ja |
| Intel© 64 | Ja |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Thermal Monitoring Technologies | Ja |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
| Ondersteunde instructie sets | AVX 2.0, SSE4.1, SSE4.2 |
| Schaalbaarheid | 1S |
| CPU configuratie (max) | 1 |
| Ingebouwde opties beschikbaar | Ja |
| Thermal solution specificatie | PCG 2015C |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Versie Intel© Identity Protection Technology | 1,00 |
| Versie Intel© Stable Image Platform Program (SIPP) | 0,00 |
| Versie Intel© Secure Key Technology | 1,00 |
| Intel© Virtualization Technology (VT-x) | Ja |
| Versie Intel© TSX-NI | 0,00 |
| ARK ID processor | 126688 |
| Energie | |
| AC-adapter, vermogen | 155 W |
| AC-adapterfrequentie | 50/60 Hz |
| AC-adapter ingangsspanning | 100-240 V |
| Gewicht en omvang | |
| Breedte apparaat (met standaard) | 498 mm |
| Diepte apparaat (met standaard) | 225 mm |
| Hoogte apparaat (met standaard) | 329 mm |
| Gewicht (met standaard) | 7,4 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 35 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
| Certificaten | |
| Certificering | IEC/EN/UL 60950-1 FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KN35, EN 55032, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, EN 50564, EN 62623, EAC, BSMI, NOM |
| Inhoud van de verpakking | |
| Inclusief muis | Ja |
| Toetsenbord inbegrepen | Ja |
| Overige specificaties | |
| AC-adapter, uitgangsstroom | 3 A |
| Warranty | |
| Base Warranty | Non Non |
