Camera Station S2224 Mk Il Appliance
ITCurry #: 13836672 | Article #: 02810-003-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

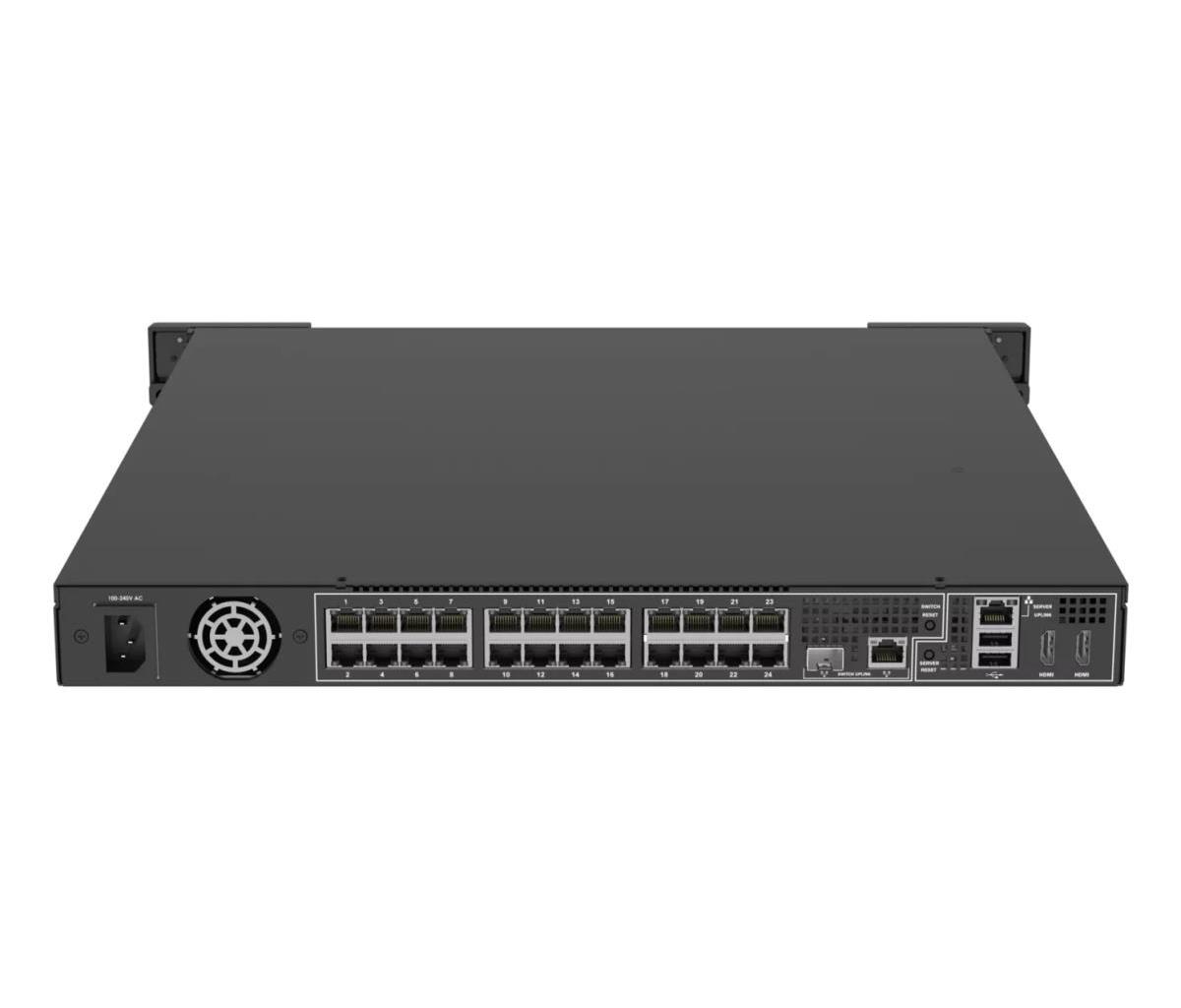

AXIS Camera Station S2224 Mk II Rack Appliance
This 24-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 24-port PoE switch, and 12 TB of storage. It comes with pre-loaded software and tools to minimize installation time.
Powerful and versatile
This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 24 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Plus, it supports multiple RAID configurations (levels 0/1/5/10) for flexible system storage and redundancy. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.
Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.
Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.
| Prestatie | |
| Videoingangkanalen | 24 kanalen |
| Aantal gelijktijdig afgespeelde kanalen | 48 kanalen |
| Maximum resolutie | 7680 x 4320 Pixels |
| Ondersteunende oplossingen | 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Intern geheugen | 16000 MB |
| Intern geheugentype | DDR5 |
| Maximale beeldsnelheid | 30 fps |
| Draadloos LAN | |
| Wifi | Nee |
| Harde schijf | |
| Het aantal ge‹nstalleerde HDD's | 2 |
| HDD capaciteit | 6 TB |
| Maximum aantal HDD's per behuizing | 4 |
| Totale ge‹nstalleerde opslagcapaciteit | 2 GB |
| RAID support | Ja |
| Soorten RAID | 0, 1, 10 |
| SSD (solid-state drive) | |
| Aantal ge‹nstalleerde SSD's | 1 |
| SSD capaciteit | 256 GB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 24 |
| Power over Ethernet (PoE) | Ja |
| Aantal HDMI-poorten | 2 |
| Aantal USB 2.0-poorten | 2 |
| Fibre channel-poorten | 1 |
| Netwerkstandaard | IEEE 802.3at |
| Kenmerken | |
| Rack-montage | Ja |
| Rackcapaciteit | 1U |
| Kleur van het product | Zwart |
| Certificering | FIPS 140-2 Level 2, EN 55035, EN 55032 Class A EN 61000-3-2, EN 61000-3-3, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252 |
| Processor | |
| Type processor | Ja |
| Energie | |
| Vermogensverbruik (max) | 130 W |
| Stroomverbruik (typisch) | 110 W |
| AC-ingangsspanning | 100-240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Totaal Power over Ethernet (PoE)-budget | 260 W |
| Minimale systeemeisen | |
| Ondersteunt Windows | Windows 11 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Temperatuur bij opslag | -40 - 65 øC |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Technische details | |
| Certificaten van naleving | BIS, BSMI, CE, Federal Communications Commission (FCC), KC, Norma Oficial Mexicana (Mexicaanse norm? NOM), RCM, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA), UL, VCCI, cUL |
| Gewicht en omvang | |
| Breedte | 476 mm |
| Diepte | 440 mm |
| Hoogte | 45 mm |
| Gewicht | 11 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Warranty | |
| Base Warranty | Non Non |
