Product Informatie

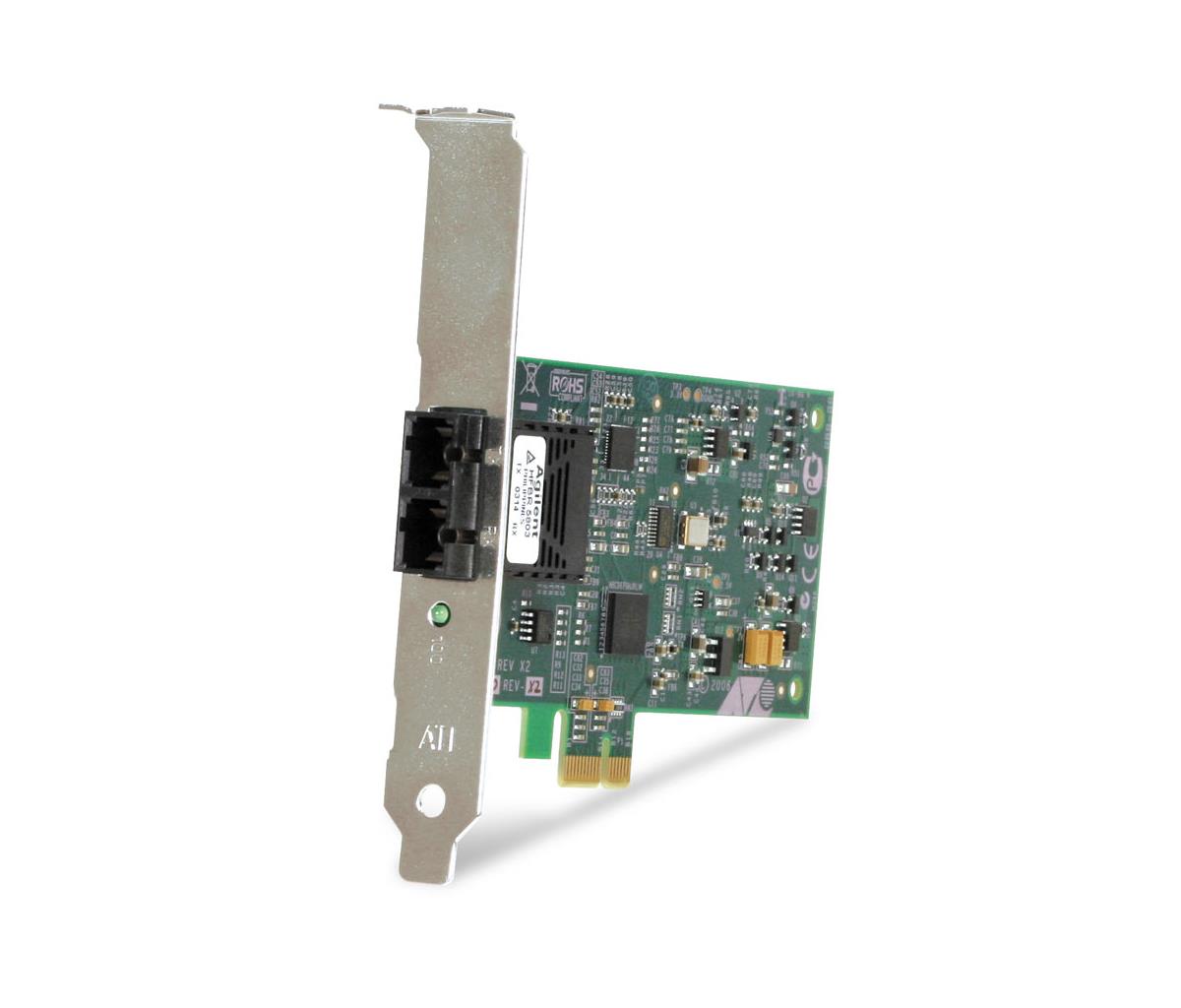

More Bandwidth with PCI-Express Interface
AT-2711FX x1 PCI-Express (PCI-e™) design gives you the maxim possible bandwidth and bus efficiency, other benefits are: capability and Low Power Consumption.
Easy Migration Path for AT-2701FX Users
For the current customers who are using Allied Telesis’ 100Mbps Fiber cards (AT-2701FX), and want to upgrade their systems to PCI-Express, AT-2711FX is the ultimate solution.The customers can continue using their existing 100Mbps Fiber network without adding any more new equipment. For new customers equipped with PCI-Express systems,AT-2711FX gives them the ability to easily build or connect to the Fast Ethernet Fiber networks.
Advanced Manageability
The priority queuing offered by AT-2711FX can help users set up the network based on their own needs.The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the network adapter and check
specific data.
High Reliability
The AT-2711FX Fast Ethernet Fiber Adapter comes with a comprehesive Windows utility that performs detailed tests, diagnostics, and analysis.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 100 Mbit/s |
| Wake-on-LAN | Ja |
| Full duplex | Ja |
| Design | |
| Certificering | FCC/EN55022 Class B EN55024 Class B UL1950 CE TUV |
| Minimale systeemeisen | |
| Compatibele besturingssystemen | Windows 2000 Windows XP/2003 (32/64-bit) Linux 2.4.x Netware NDIS2 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 procent |
| Gewicht en omvang | |
| Breedte | 69 mm |
| Hoogte | 121 mm |
| Gewicht | 50 g |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Overige specificaties | |
| Voldoet aan industriestandaarden | IEEE 802.3u, IEEE 802.1p |
| Datastroombeheer | Ja |
| Aansluiting(en) | ST |
| Warranty | |
| Base Warranty | Non Non |
