Powerful. Secure. Wireless.
Configure, Connect, and Go — Outdoor WiFi 7 Just Got Smarter
Outdoor WiFi 7 Just Got Smarter
Thinking of upgrading to WiFi 7 for your outdoor network? The Zyxel NWA55BE is the ideal solution.
Powered by a Qualcomm quad-core CPU, the dual-radio BE5100 (2.4GHz: 2x2:2, 5GHz: 2x2:2) delivers up to 5.1Gbps WiFi 7 speeds for enterprise-grade performance. Its 2.5GbE port ensures a cost-effective, high-speed upgrade that works with your existing setup.
Rain or Shine, Stay Connected with Confidence

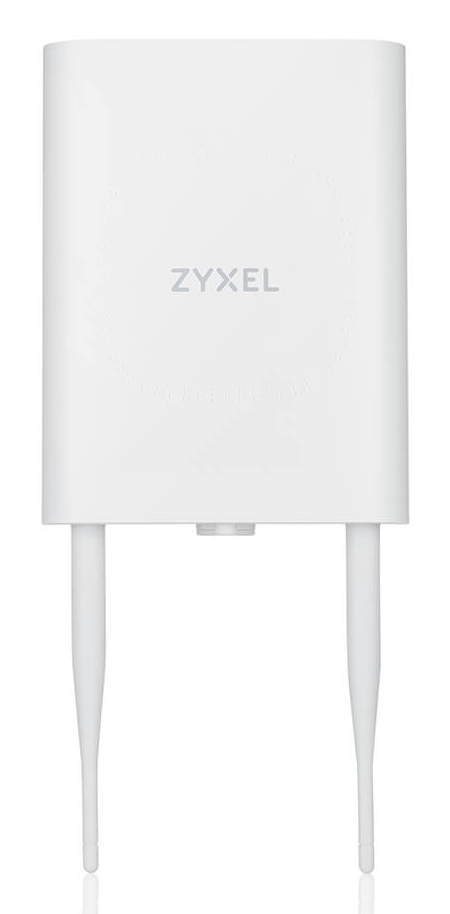

Built for tough outdoor conditions, the NWA55BE features IP55 weatherproofing and operates from -25°C to 65°C. The downward-facing antenna design helps protect against moisture, while the detachable antennas let users swap in alternatives to meet different coverage needs.
Dynamic Mesh for High-Performance Outdoor WiFi
Zyxel’s Smart Mesh MLO technology creates dynamic wireless links between APs, extending outdoor coverage and enabling seamless inter-building connections—no cabling needed. With dual-radio backhaul, the NWA55BE outperforms traditional mesh setups, delivering higher bandwidth, lower latency, and stronger interference resistance.
Secure Authentication to Safeguard Business Networks
With support for a captive portal, IEEE 802.1X/RADIUS authentication, the NWA55BE not only offers small business users enterprise-level security to protect their networks, but also provides flexible options to customize wireless network login pages for marketing and brand recognition.
Connected – In Just a Few Clicks!
You can be connected in minutes with just a few simple clicks on the Nebula mobile app. The easy step-by-step wizard guides you through the entire installation process, and the intuitive app makes it easy to change settings as needed.
Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app. With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| Maximale overdrachtssnelheid van gegevens | 5100 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 688 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 4324 Mbit/s |
| Bandbreedte | 0,24 GHz |
| Netwerkstandaard | IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.3at, IEEE 802.3bt |
| Wifi Multimedia (WMM)/(WME) | Ja |
| Snelle roaming | Ja |
| VLAN=ondersteuning | Ja |
| Draadloze isolatie | Ja |
| Bandbreedteaansturing | Ja |
| Cellulair co-existentie filter (CCF) | Ja |
| Zendvermogen | 26 dBmW |
| Mean time between failures (MTBF) | 631165 uur |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WEP, WPA, WPA2, WPA3, 802.1x RADIUS |
| MAC adres filtering | Ja |
| Auto Wireless Distribution System (WDS) | Ja |
| Beheerfuncties | |
| Opdrachtregelinterface (CLI) | Ja |
| Cloud-beheerd | Ja |
| Upgraden van firmware mogelijk | Ja |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Stroomverbruik (typisch) | 24 W |
| Design | |
| Plaatsing | Muur |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP55 |
| Antenne | |
| Soort antenne | Extern |
| Antennefuncties | Afneembare antenne |
| Antennas quantity | 2 |
| Antenne versterkingsniveau (max) | 3 dBi |
| Prestatie | |
| Type processor | Ja |
| Certificaten | |
| Certificaten van naleving | Federal Communications Commission (FCC) |
| Certificering | FCC Part 15C, FCC Part 15E, FCC Part 2.1091, ETSI EN 300 328, EN 301 893, Draft EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002, FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55032, EN55035, EN61000-3-2/-3, EN60601-1-2, BSMI CNS15936, EN 62368-1, IEC 62368-1, BSMI CNS15598-1 |
| Gewicht en omvang | |
| Breedte | 308 mm |
| Diepte | 136,4 mm |
| Hoogte | 49,6 mm |
| Gewicht | 575,6 g |
| Verpakking | |
| Breedte verpakking | 221 mm |
| Diepte verpakking | 188 mm |
| Hoogte verpakking | 59 mm |
| Gewicht verpakking | 984,5 g |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | -25 - 65 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Warranty | |
| Base Warranty | Non Non |
