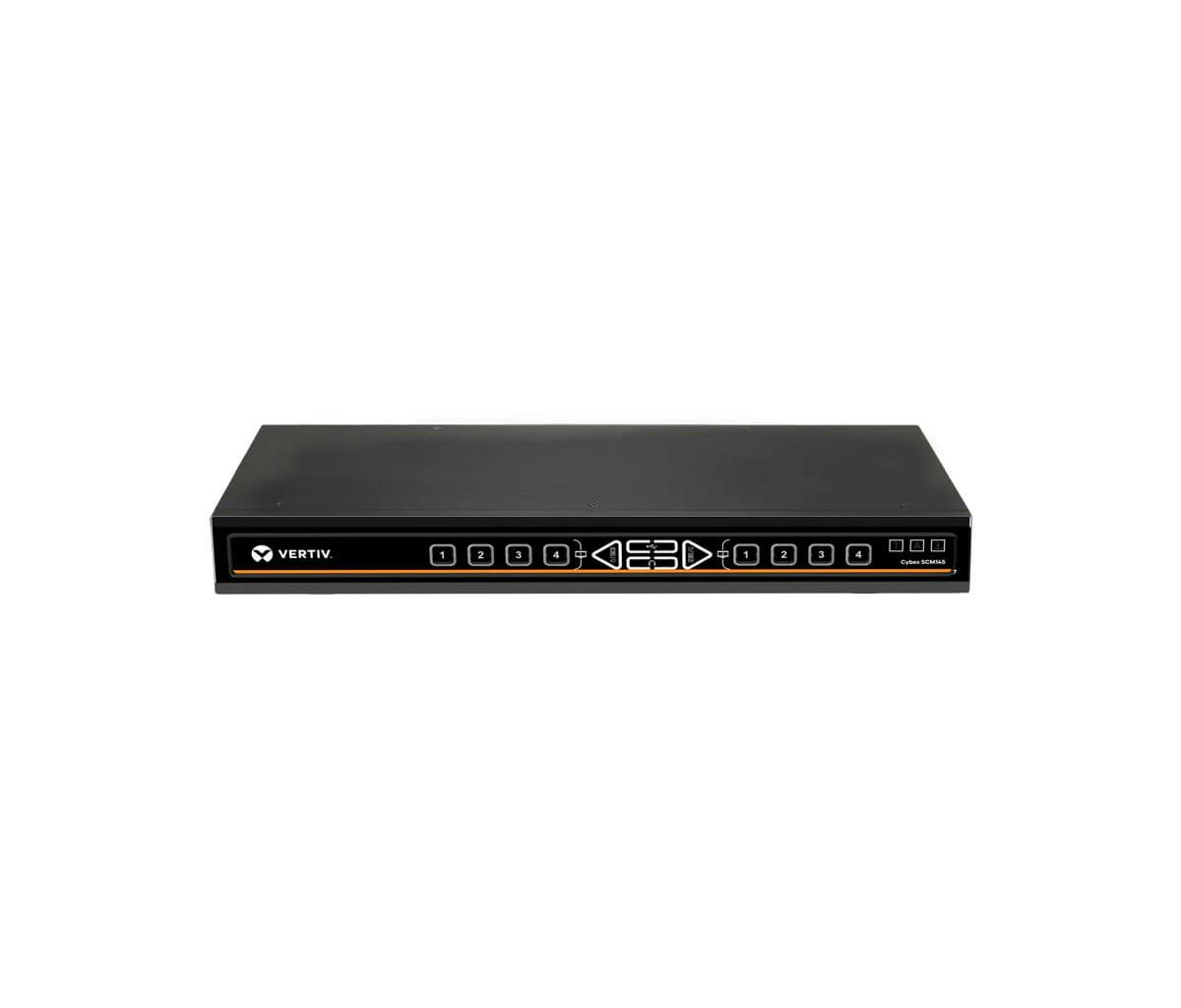

CYBEX SC Universal DP/H Secure Desktop Matrix 2x4 KVM with CAC PP4.0
ITCurry #: N6415926 | Article #: SCM145DPH-400-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Vertiv™ Cybex™ SCM145DPH secure desktop matrix KVM eliminates the need for multiple monitors, keyboards, mice and cables. The Cybex™ secure desktop matrix switch provides users flexibility by offering a universal video port, freeze DPP and audio channel capabilities as well as touch screen support. The Cybex SCM145DPH comes with native video support up to UHD 4K @ 60Hz and smart-card (CAC) or biometric readers for authentication on any attached computer.
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- Secure KVM switching allows for instantaneous interaction between two computers from different security classifications
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Native video supports up to UHD 4K at 60 Hz
- Unidirectional data flow of keyboard, mouse, video, and audio
| Poorten & interfaces | |
| Aansluiting toetsenbord | USB |
| Aansluiting muis | USB |
| Aansluiting video | HDMI/DisplayPort |
| Aantal poorten USB 2.0 Type-B | 2 |
| Console-poorten | 3.5mm hoofdtelefoon, DisplayPort, HDMI, USB A |
| Aantal Console DisplayPorts-poorten | 2 |
| Aantal USB 2.0-Type-A-hubpoorten | 3 |
| Hoofdtelefoonuitgangen | 1 |
| Prestatie | |
| HD type | 4K Ultra HD |
| Maximum resolutie | 3840 x 2160 Pixels |
| Videobandbreedte | 60 Hz |
| Design | |
| Kleur van het product | Zwart |
| Certificering | FCC class A, CE, TUV US, TUV Canada, RCM, VCCI |
| Energie | |
| Stroombron | AC |
| Ingangsspanning | 100 - 240 V |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 80 procent |
| Gewicht en omvang | |
| Breedte | 348 mm |
| Diepte | 127 mm |
| Hoogte | 43 mm |
| Gewicht | 1,5 kg |
| Warranty | |
| Base Warranty | Non Non |
