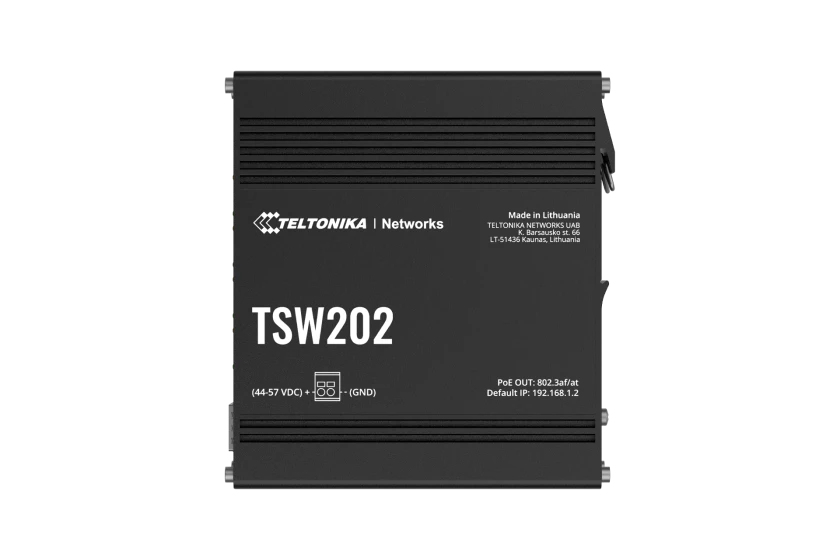

Tsw202 Managed Poe+ Ethernet Switch
ITCurry #: S3652179 | Article #: TSW202000000-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
TSW202 is the first-ever managed industrial switch from Teltonika Networks, giving you greater control over how data flows through your network and the role its ports perform in your solution. Define their settings, routing, port mirroring, and more with simplicity and ease.
PoE+ with 30 W max power per port and 240 W total PSE makes the TSW202 centralize your power supply. PoE Management gives you more control over the power distribution of your solution, letting you turn PoE on or off on selected ports.
The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing for management, configuration, and monitoring of your network. Additional software features like QoS enhance effective bandwidth management and network traffic classifying and prioritizing.
Designed for industrial environments, the TSW202 features an integrated DIN rail bracket, rugged aluminum housing, and extreme temperature and vibration resistance for maximum durability with ease of installation.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 8 |
| Aantal ge‹nstalleerde SFP modules | 2 |
| Netstekker | Terminal block (3-pin) |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z |
| 10G support | Nee |
| Port mirroring | Ja |
| Full duplex | Ja |
| Verbindingsaggregatie | Ja |
| Auto-negotiation | Ja |
| Active Link-detectie | Ja |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 20 Gbit/s |
| MAC-adrestabel | 8000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10000 |
| Beveiliging | |
| DHCP-functies | DHCP client |
| IGMP snooping | Ja |
| Design | |
| Rack-montage | Nee |
| Stapelbaar | Nee |
| Kleur van het product | Aluminium, Blauw |
| Materiaal behuizing | Aluminium |
| Reset button | Ja |
| LED-indicatoren | Stroom, Status |
| Internationale veiligheidscode (IP) | IP30 |
| DIN rail bevestiging | Ja |
| Energie | |
| Vermogenstoevoer inclusief | Nee |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Type Power over Ethernet (PoE) ondersteunt | Active PoE |
| Hoeveelheid Power over Ethernet (PoE) ports | 8 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 240 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 75 øC |
| Gewicht en omvang | |
| Breedte | 132 mm |
| Diepte | 44,2 mm |
| Hoogte | 122 mm |
| Gewicht | 610 g |
| Warranty | |
| Base Warranty | Non Non |
