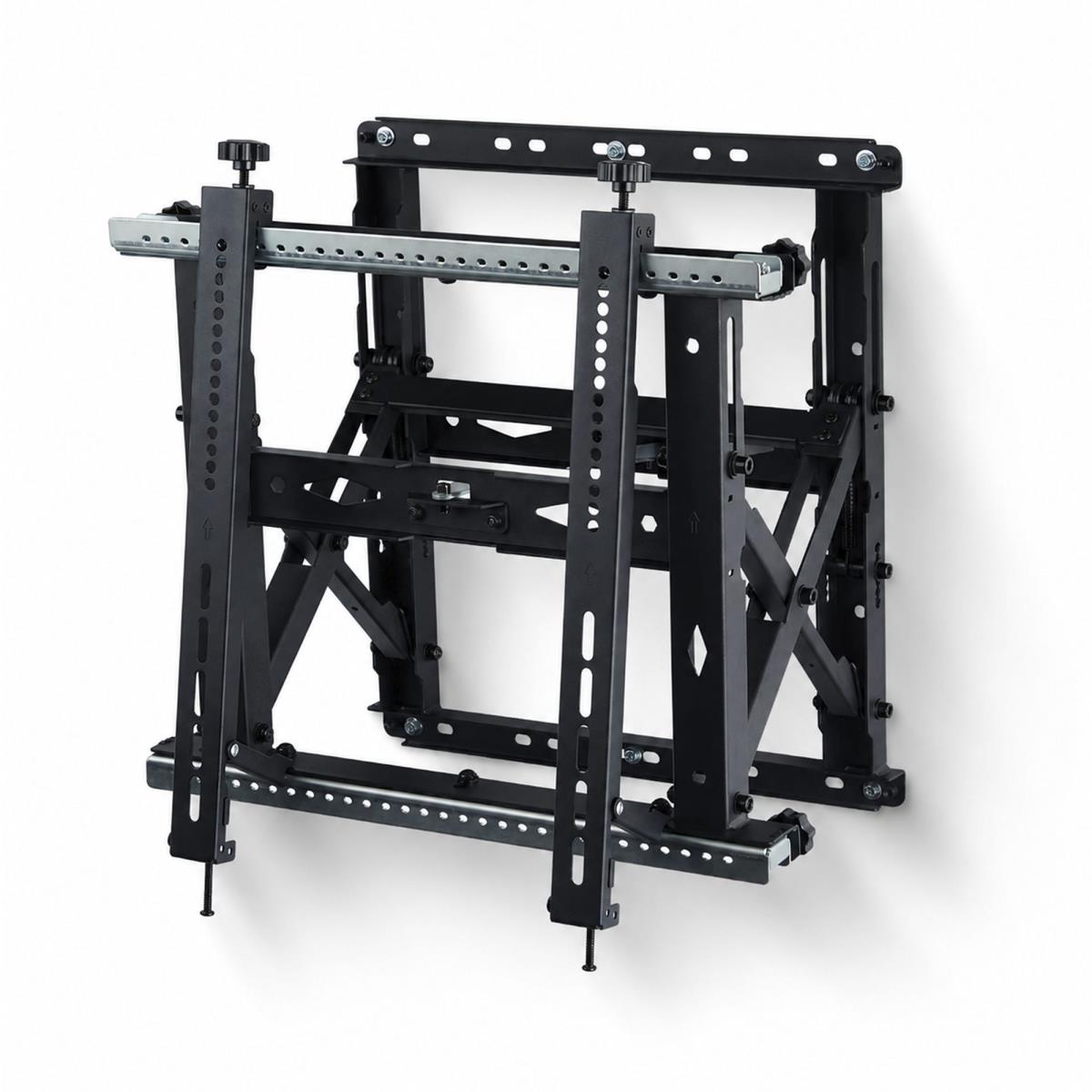

Video Wall Tv Mount For Up To 70in And 154lb (70kg) Displays Landscape/portra
ITCurry #: 7564C837 | Article #: 715LPQ-TV-VIDEO-WALL-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Build a professional video wall with quick, tool-less display adjustments
Build modular video wall installations with a TV mount that supports six points of adjustment while still providing pop-out rear access, helping simplify alignment and maintenance in professional AV setups.
Create Scalable Video Wall Setups
Combine multiple mounts to build flexible video wall layouts like 2x2, 1x4, or custom configurations for commercial and public-facing deployments. Each wall bracket supports displays up to 70-inch and154lb (70kg).
Support Landscape or Portrait Mounting
Install displays vertically or horizontally with VESA compatibility from 200x200 to 600x400mm, giving you greater versatility when designing video wall layouts. A wall mounting plate CAD file and instructional video are available for download to support planning and integration.
Access Displays Quickly for Service
Pop-out design with a kickstand extends up to 12.8in (32.5cm) from the wall, providing easy rear access for adjustments, maintenance, and cable management on mounted TV panels.
Achieve Precise Screen Alignment
Six adjustments provide control over height, lateral positioning, tilt, swivel, depth, and rotation, helping to fine-tune final placement without remounting the displays for alignment and a clean video wall finish.
| Ergonomie | |
| Soort | Vast |
| In hoogte verstelbaar | Ja |
| Kleur van het product | Zwart |
| Bereik kantelhoek | -3 - 2ø |
| Afstand tot de muur (min) | 14,3 cm |
| Montage | |
| Maximale gewichtscapaciteit | 70 kg |
| Minimale schermgrootte | 114,3 cm (45") |
| Maximale schermgrootte | 177,8 cm (70") |
| Montagewijze | Muur |
| Montage interface compatibiliteit (min) | 200 x 200 mm |
| Montage interface compatibiliteit (max) | 600 x 400 mm |
| Paneelmontage-interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400 |
| Model | Horizontaal/Verticaal |
| Gewicht en omvang | |
| Breedte | 640 mm |
| Diepte | 120 mm |
| Hoogte | 544 mm |
| Gewicht | 10,5 kg |
| Verpakking | |
| Breedte verpakking | 585 mm |
| Diepte verpakking | 566 mm |
| Hoogte verpakking | 135 mm |
| Gewicht verpakking | 15,1 kg |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 585 mm |
| (Buitenste) hoofdverpakking lengte | 566 mm |
| (Buitenste) hoofdverpakking hoogte | 135 mm |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
