Thunderbolt 5 Dock With Nvme Slot For Mac And Windows, Up To Dual 8k 60hz Or Triple 4k 144hz, 140w Laptop Charging
ITCurry #: 7564C844 | Article #: 183UE-TB5USB4DOCK-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

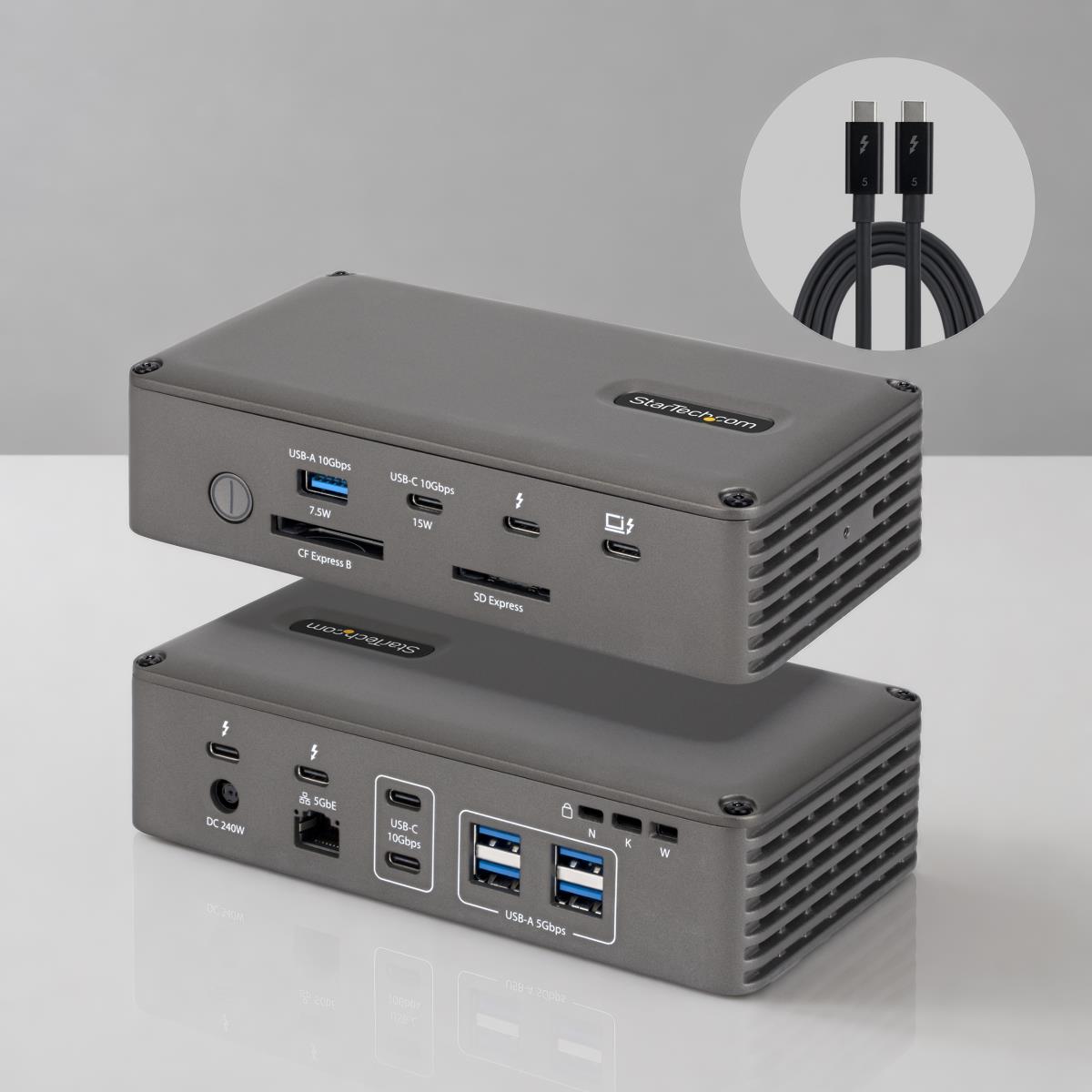

Transformeer uw Thunderbolt 5 laptop in een high-resolution werkstation met meerdere monitoren
Connect high-performance storage, high-resolution displays, and essential peripherals through a single Thunderbolt dock that expands connectivity and streamlines multi-device workflows. Connect up to two 8K displays or three 4K displays to expand your workspace for video editing, design, and other content creation tasks. Eight USB ports and three Thunderbolt ports keep storage, input devices, and accessories connected, reducing cable clutter and simplifying workstation deployment. Silent passive cooling keeps the dock quiet during normal operation, while an active cooling fan automatically engages under full load to maintain reliable performance. Make upgrades easy with the integrated M.2 slot. Install an NVMe SSD for fast local storage and backups, or add an M.2 AI accelerator to boost on-device AI performance for demanding productivity and creative workflows. You can position the dock vertically using the included stand to free up valuable desk space and improve airflow for better cooling. Transfer media faster with integrated SD and CFexpress card readers that support simultaneous high-speed transfers. Included Thunderbolt™ Share software lets two PCs share a keyboard, mouse, and display over a single Thunderbolt connection while enabling file transfers and Windows PC migration-delivering a KVM-like experience without extra hardware.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | Thunderbolt 5 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 3 |
| Aantal Thunderbolt 5-poorten | 3 |
| Microfoon, line-in ingang | Nee |
| Aansluiting voor netstroomadapter | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000,2500,5000 Mbit/s |
| Wake-on-LAN | Ja |
| Full duplex | Ja |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | CFexpress Type B, SD |
| Overdrachtssnelheid | 120 Gbit/s |
| HD type | 8K Ultra HD |
| Resolutie (maximum digitaal) | 7680 x 4320 Pixels |
| Aantal displays ondersteund | 3 |
| Maximale refresh snelheid | 240 Hz |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington, Nano, Noble, Wig |
| Kleur van het product | Grijs |
| UASP-ondersteuning | Ja |
| Materiaal behuizing | Aluminium |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| Stroom | 3 A |
| Spanning | 20 V |
| Output current | 12 A |
| Vermogensverbruik (max) | 240 W |
| Compatibele soorten stopcontacten | EU |
| USB kabel lengte | 1 m |
| Software | |
| Ondersteunt Windows | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Ondersteunt Mac-besturingssysteem | Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Gewicht en omvang | |
| Breedte | 45 mm |
| Diepte | 168 mm |
| Hoogte | 90 mm |
| Gewicht | 636 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 147 mm |
| Diepte verpakking | 296 mm |
| Hoogte verpakking | 113 mm |
| Gewicht verpakking | 1,5 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | Thunderbolt |
| Snelstartgids | Ja |
| Technische details | |
| Certificaten van naleving | Federal Communications Commission (FCC), CE |
| Logistieke gegevens | |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| (Buitenste) hoofdverpakking breedte | 310 mm |
| (Buitenste) hoofdverpakking lengte | 480 mm |
| (Buitenste) hoofdverpakking hoogte | 314 mm |
| Overige specificaties | |
| Chipset | Intel - JHL9480, Infineon - PMG1, Infineon - CCG8, Realtek - RTL8157CG, JMicron - JMS581LT, Texas Instruments - TPS2546, VIA Labs - VL822Q8, VIA Labs - VL822Q7, VIA Labs - VL817, Parade - FL5801, Terminus - FE1.1, STMicro - STM32C071F8 |
| Warranty | |
| Base Warranty | Non Non |
