Product Informatie

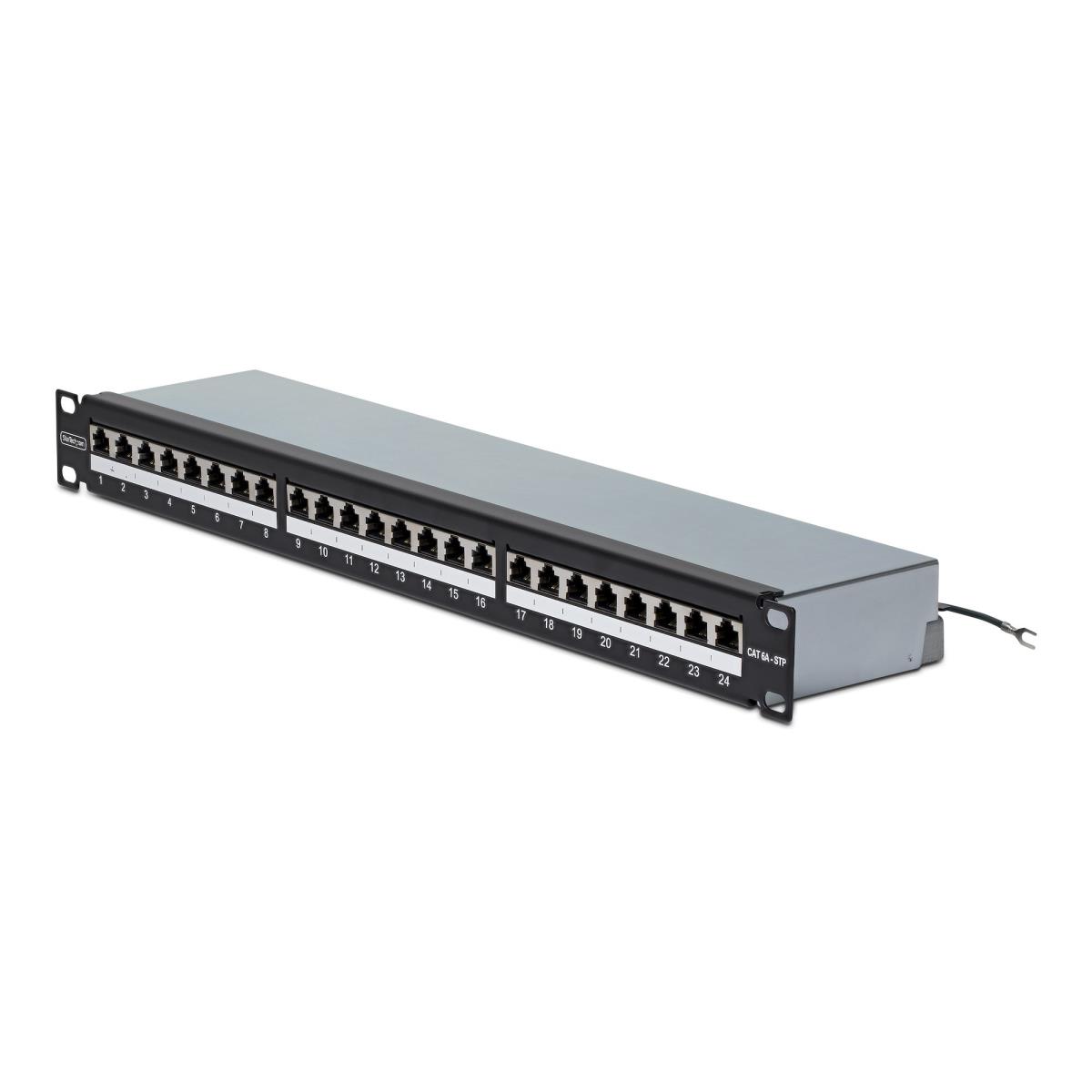

Set up 24 Cat6A connections using this shielded 110 punch down Ethernet patch panel
Streamline rack-mounted network setups with this 24-Port 1U Shielded Cat6A Patch Panel with 110 punch-down termination. The shielded patch panel provides a secure, professional solution for terminating Cat6A cabling in standard 19-inch racks.
Secure and Reliable Termination
The shielded 110 patch panel is ideal for permanent network installations and incorporates Krone/110 IDC contacts for clean vertical termination of 23-26 AWG STP solid wire Cat6A cabling. Phosphor bronze contacts plated with 50 micro-inches of hard gold maintain consistent signal integrity. Dual T568A/B wiring labels support accurate termination and reduce wiring errors. The patch panel is UL listed for electrical safety in enterprise network environments.
Durable Construction
The 1U patch panel assembly features a protective metal housing cover and grounding wire for optimal EMI protection and helps maintain signal integrity in high-density installations. It is fully compliant with ANSI/TIA/EIA-568-B.2-1, ISO/IEC 11801 (2nd Edition: 2002), EN 50173-1: 2002, and ANSI/TIA/EIA-310-D standards, ensuring compatibility with network cabling infrastructure and 19-inch server racks.
| Netwerk | |
| Aantal poorten | 24 |
| Aansluiting(en) | RJ-45 |
| Ondersteundende kabel types | Cat6a |
| Design | |
| Kleur van het product | Zwart |
| Montage | Rekmontage |
| Rackcapaciteit | 1U |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | -40 - 70 procent |
| Temperatuur bij opslag | 0 - 85 øC |
| Gewicht en omvang | |
| Breedte | 111,4 mm |
| Hoogte | 44,4 mm |
| Diepte | 482,6 mm |
| Gewicht | 1 kg |
| Inhoud van de verpakking | |
| Snelstartgids | Ja |
| Verpakking | |
| Breedte verpakking | 520 mm |
| Diepte verpakking | 145 mm |
| Hoogte verpakking | 50 mm |
| Gewicht verpakking | 1,9 kg |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 535 mm |
| (Buitenste) hoofdverpakking lengte | 310 mm |
| (Buitenste) hoofdverpakking hoogte | 176 mm |
| Hoeveelheid per (buitenste) hoofdverpakking | 6 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
