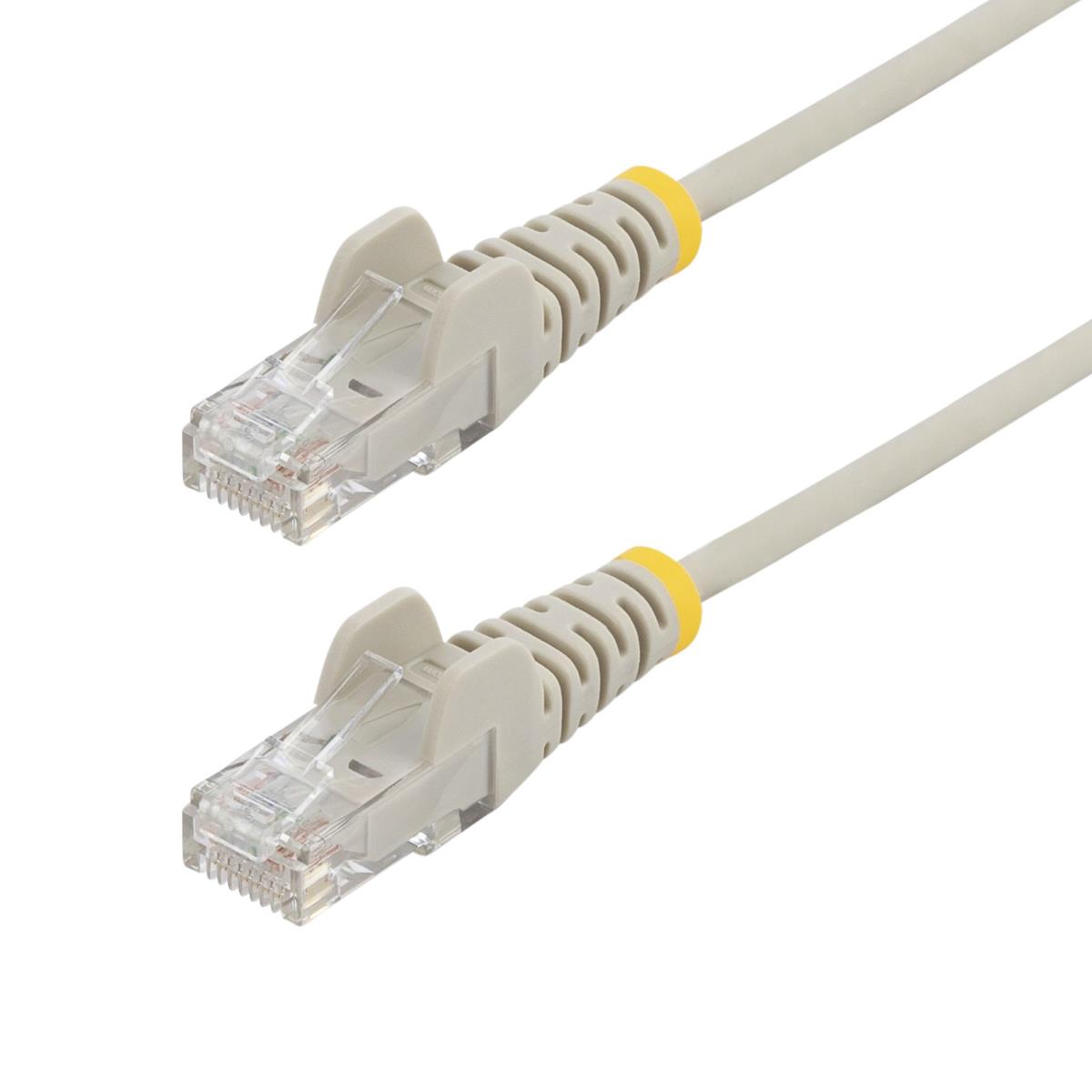

Patch Cable - CAT6 - Utp - 25cm - Grey Slim
ITCurry #: 7564C514 | Article #: N6PAT25CMGRS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Route Slim Cat6 cables through high density installations for optimal flexibility and airflow
This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.
Improved Airflow
The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.
This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction
The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Tested for Reliability
The Slim CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 requirements for guaranteed Cat6 performance. The cable is Fluke Tested to ensure minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.
| Kenmerken | |
| Kleur van het product | Grijs |
| Snoerlengte | 0,25 m |
| Kabel standaard | Cat6 |
| Kabelafscherming | U/UTP (UTP) |
| Aansluiting 1 | RJ-45 |
| Aansluiting 2 | RJ-45 |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Contact geleider materiaal | Goud |
| Materiaal buitenmantel | Halogeenvrij |
| Kabelvorm | Rond |
| Constructie van de geleider(s) | Samengeslagen |
| Geleidermateriaal | Koper |
| Bekabelingstechnologie | 10GBase-T |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Netwerkstandaard | IEEE 802.3bt |
| AWG draad omvang | 28 |
| Overdrachtssnelheid | 10000 Mbit/s |
| Frequentie | 250 MHz |
| Power over Ethernet (PoE) | Ja |
| Type Power over Ethernet (PoE) ondersteunt | PoE+++ |
| Totaal Power over Ethernet (PoE)-budget | 100 W |
| Aangegoten clipbescherming (snagless) | Ja |
| Plug and play | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 10 - 60 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 80 procent |
| Certificaten | |
| Certificaten van naleving | CE, RoHS |
| Gewicht en omvang | |
| Outer diameter | 3,6 mm |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Verpakking | |
| Breedte verpakking | 170 mm |
| Diepte verpakking | 120 mm |
| Hoogte verpakking | 15 mm |
| Gewicht verpakking | 25,5 g |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 420 mm |
| (Buitenste) hoofdverpakking lengte | 420 mm |
| (Buitenste) hoofdverpakking hoogte | 250 mm |
| Hoeveelheid per (buitenste) hoofdverpakking | 400 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
