Spectrum-based 25gbe / 100gbe 1u Switch With Cumulus Linux 18 Sfp28 And 4 Qsfp28 Ports 2 Ac Power Supplies
ITCurry #: Q6253286 | Article #: 920-9N110-00F7-0C3-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

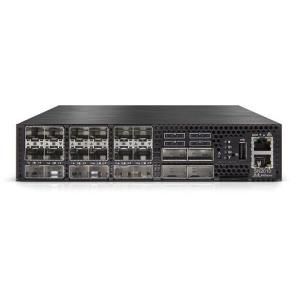

Half-width 10/25GbE and 100GbE Ethernet Switch for Hyperconverged Infrastructures and ESF (Ethernet Storage Fabrics)
The SN2010 switch is the ideal top of rack (ToR) solution for hyperconverged and storage deployments. Packed with 18 ports of 10/25GbE and 4 splittable ports of 40/100GbE, the SN2010 can deliver up to 1.7Tb/s aggregate throughput.
All Spectrum based switches, including the SN2010, support low-latency line rate traffic for all packet sizes and are ONIE bootable with support for Cumulus Linux, Onyx and other open-source operating systems with a broad installed base that drives the world's most innovative data center infrastructures.
SN2010 introduces low latency for 10/25GbE and 100GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2/L3 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Vezel-optische connector | QSFP28, SFP28 |
| Aantal QSFP28-poorten | 4 |
| Aantal SFP28-poorten | 18 |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Ondersteundende kabel types | Fiber |
| Zero touch provisioning (ZTP) | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Optische vezel | |
| Type schakelende optische module | 100 Gigabit Ethernet |
| Data-uitwisseling | |
| Switchingcapaciteit | 1700 Gbit/s |
| Store-and-forward | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9216 |
| Beveiliging | |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMP, SNMPv2, SNMPv3 |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| BPDU filtering / bescherming | Ja |
| Root-bescherming | Ja |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Prestatie | |
| Type processor | Ja |
| sFlow | Ja |
| Energie | |
| Stroombron | AC |
| AC-ingangsspanning | 100 - 240 V |
| Stroomverbruik (typisch) | 57 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Gewicht en omvang | |
| Breedte | 200 mm |
| Diepte | 508 mm |
| Hoogte | 43,8 mm |
| Gewicht | 4,54 kg |
| Certificaten | |
| Certificering | RoHS |
| Warranty | |
| Base Warranty | Non Non |
